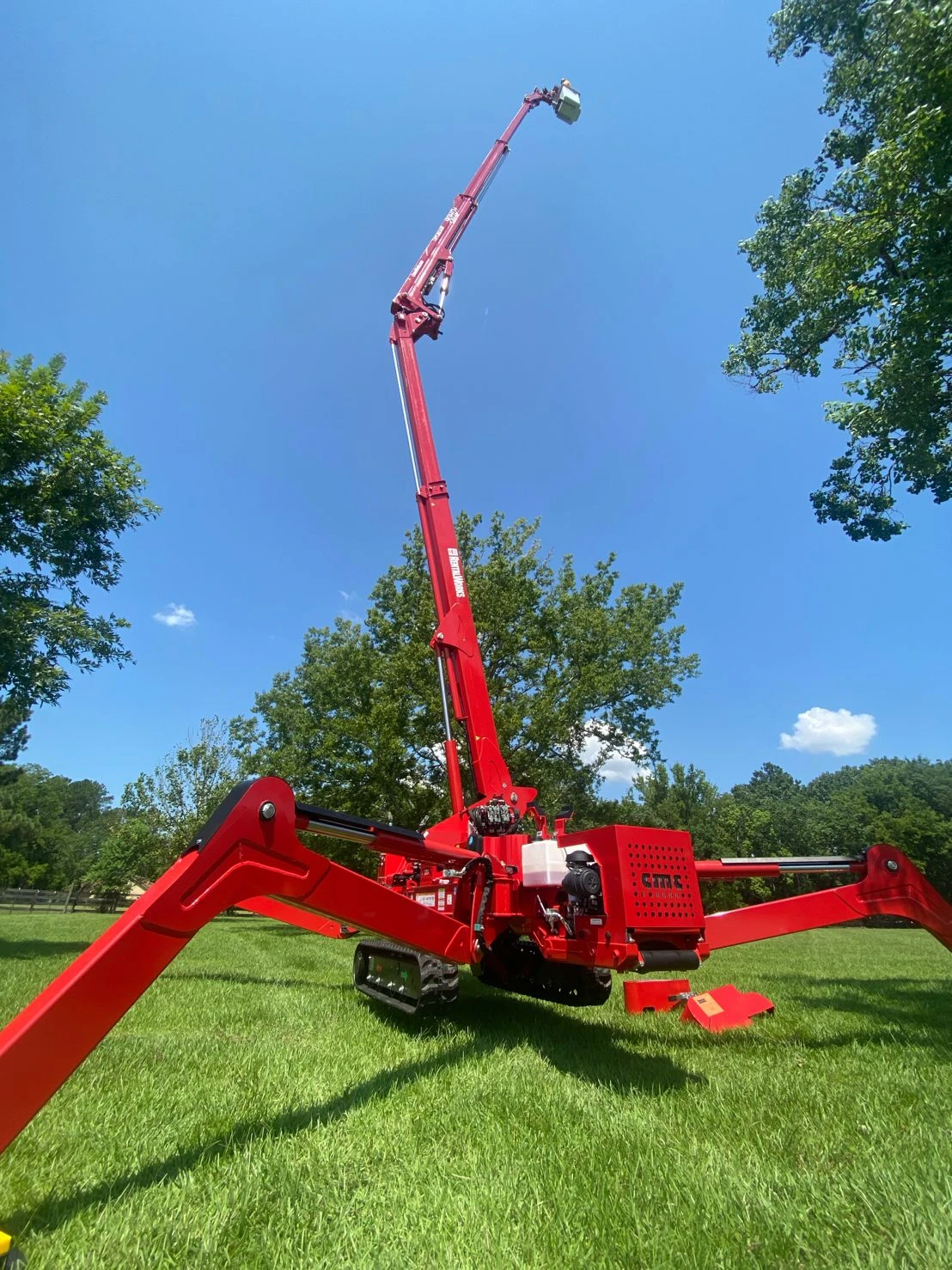

The CMC 90HD+ and 100HD+ Arbor Pro® Tracked Aerial Lifts Ensure a Safe Drop Zone

Featuring a rear-mounted turret, both the CMC 90HD+ Arbor Pro® and 100HD+ Arbor Pro® create an expansive and secure drop zone well away from the base of the machines.

The placement of this +/- 400-degree turret paired with both articulating and telescopic upper and lower booms maximizes reach while minimizing risk to equipment, surrounding landscape and structures, and – most importantly – individuals.

Establishing a clearly defined and protected drop zone is essential to nearly all types of tree work and elevated construction or maintenance.The likelihood of damage to equipment, property, and/or personal injury is significantly decreased by instituting a well-outlined area at ground level in which it is foreseeable that items would land, were they to fall or drop from above. The larger such a region, the greater the overall safety of the undertaking.

By leveraging the host of safety-enhancing features baked into the design of the 90HD+ Arbor Pro® and 100HD+ Arbor Pro®, establishing drop zone perimeters, and taking all recommended precautions during operation, users benefit from both unmatched safety and industry-leading up and over clearance for Tracked Aerial Lifts of these sizes.

CMC 90HD+ Arbor Pro®:

• Max. working height: 90 ft.
• Max lateral reach: 50 ft.
• Max. basket load capacity: 507 lbs.
• Basket rotation: +/- 90°
• Jib articulation: +/- 90°
• Max. slope to stabilize: 19° (34%)
• Total weight: 9,025 lbs.

CMC 100HD+ Arbor Pro®:

• Max. working height: 100 ft.
• Max lateral reach: 50 ft.
• Max. basket load capacity: 507 lbs.
• Basket rotation: +/- 90°
• Jib articulation: +/- 90°
• Max. slope to stabilize: 19° (34%)
• Total weight: 9,413 lbs.

‍
