Lift Carrier
Isuzu 176
Traditional Cab-over Isuzu for optimal maneuvarability.
Lightweight, agile, and easy to self-load and unload.

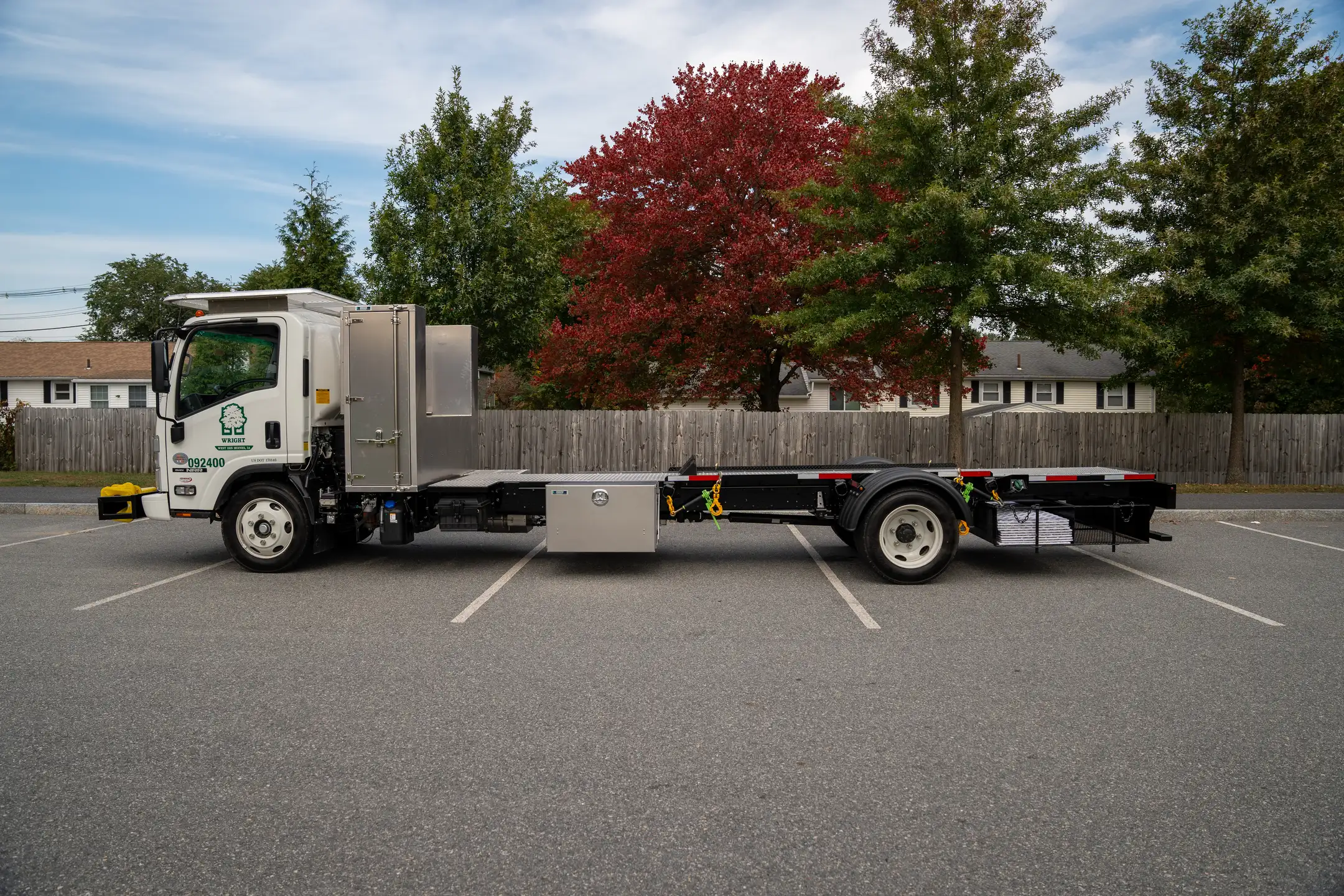

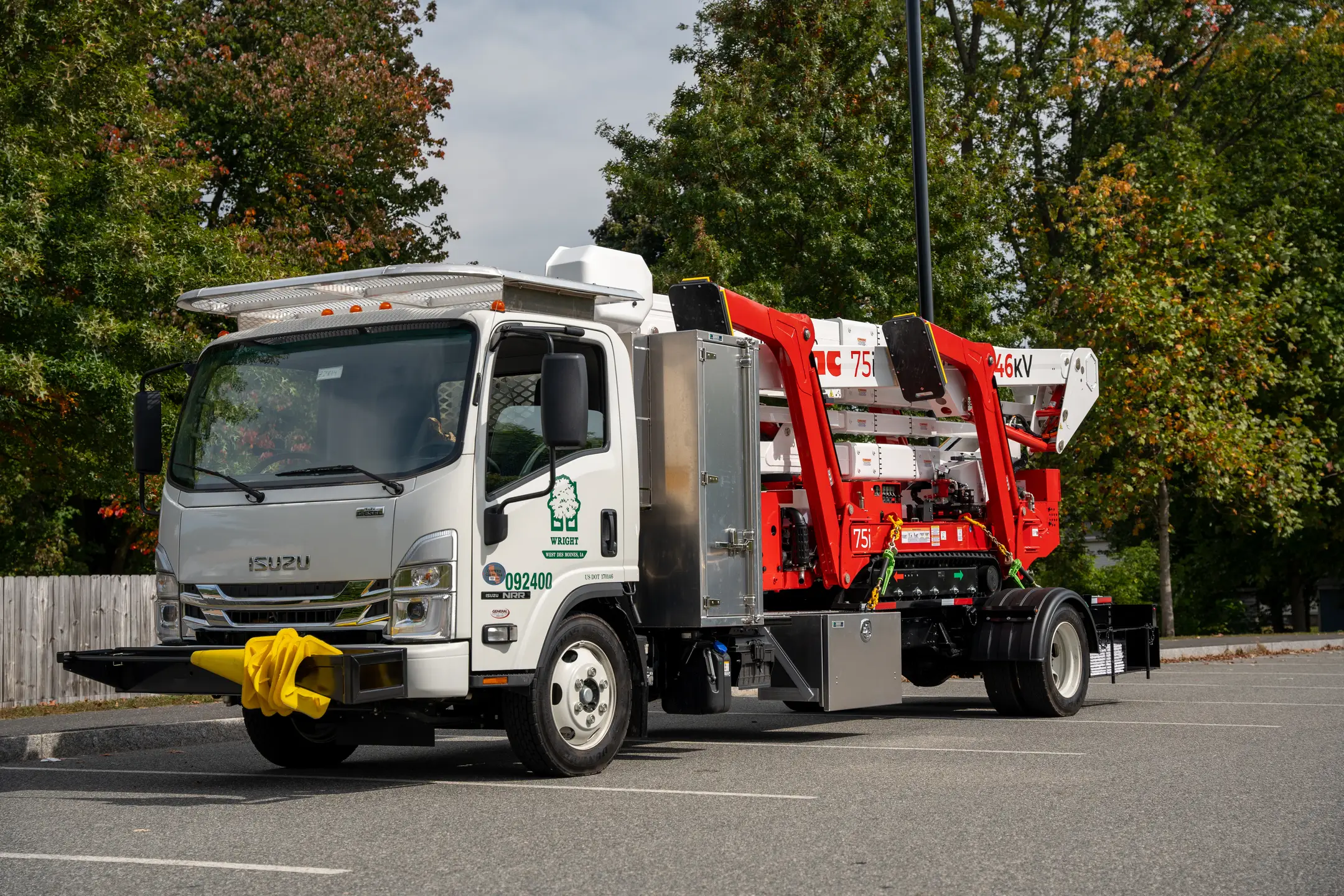

Isuzu 176 Lift Carrier

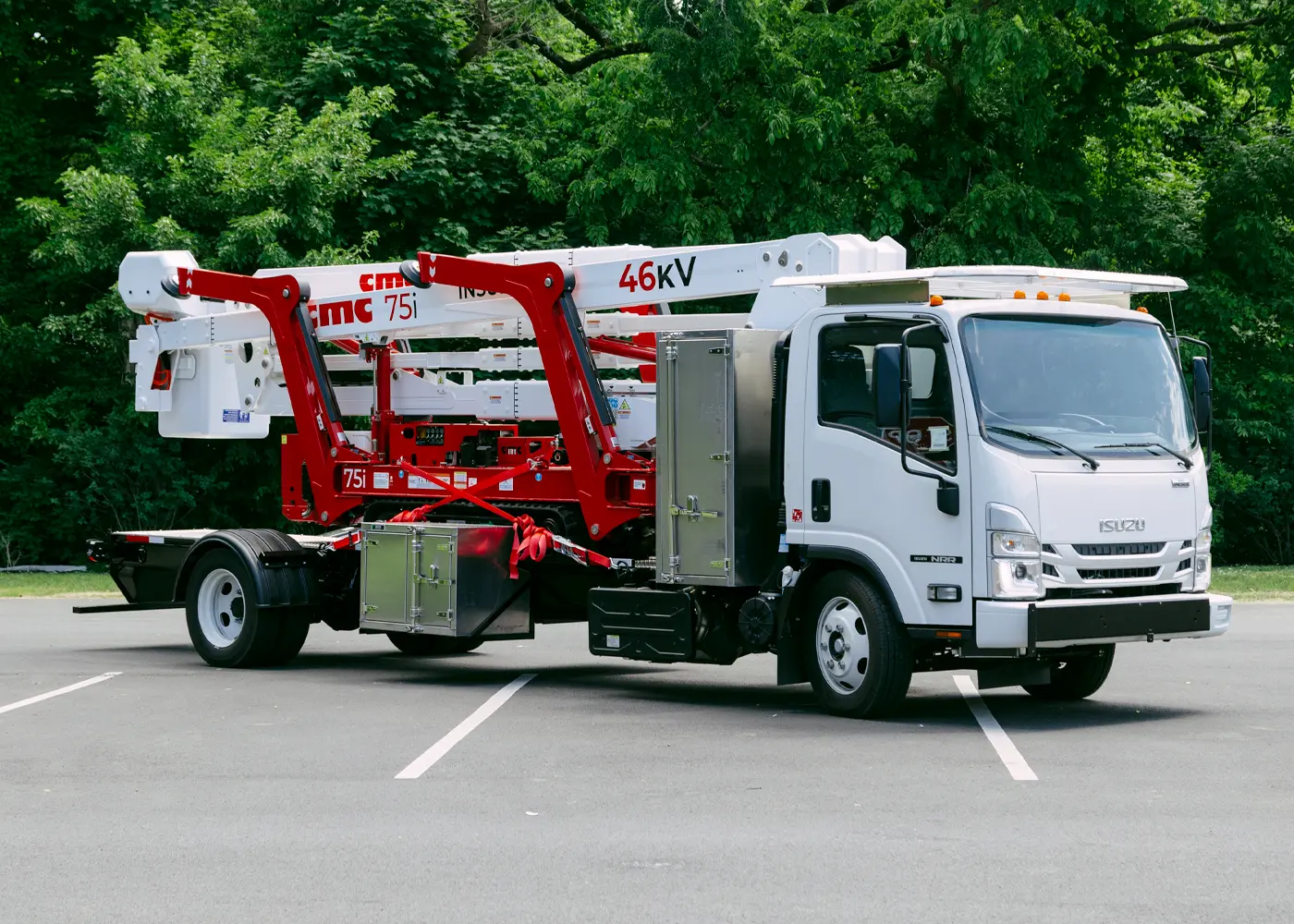

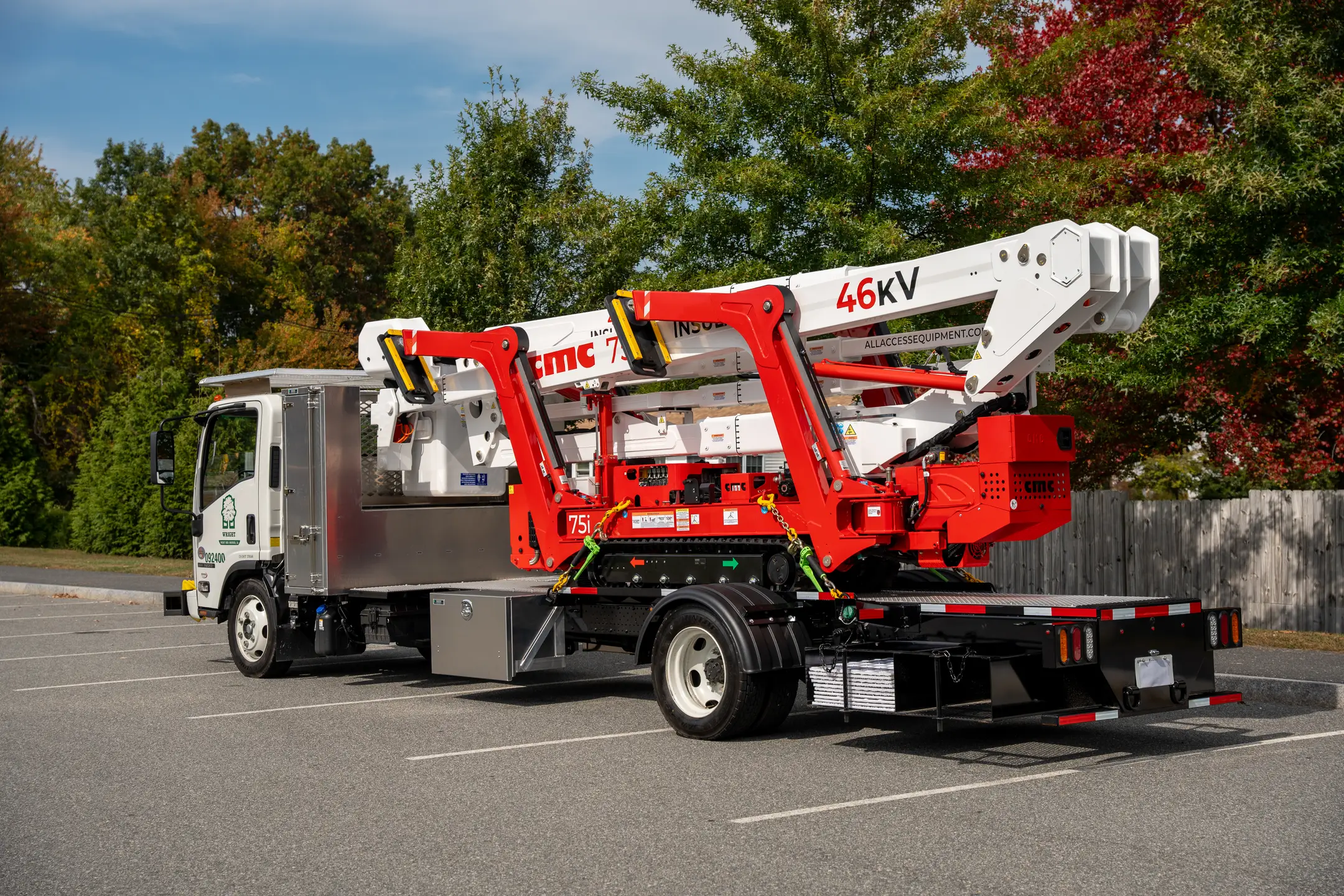

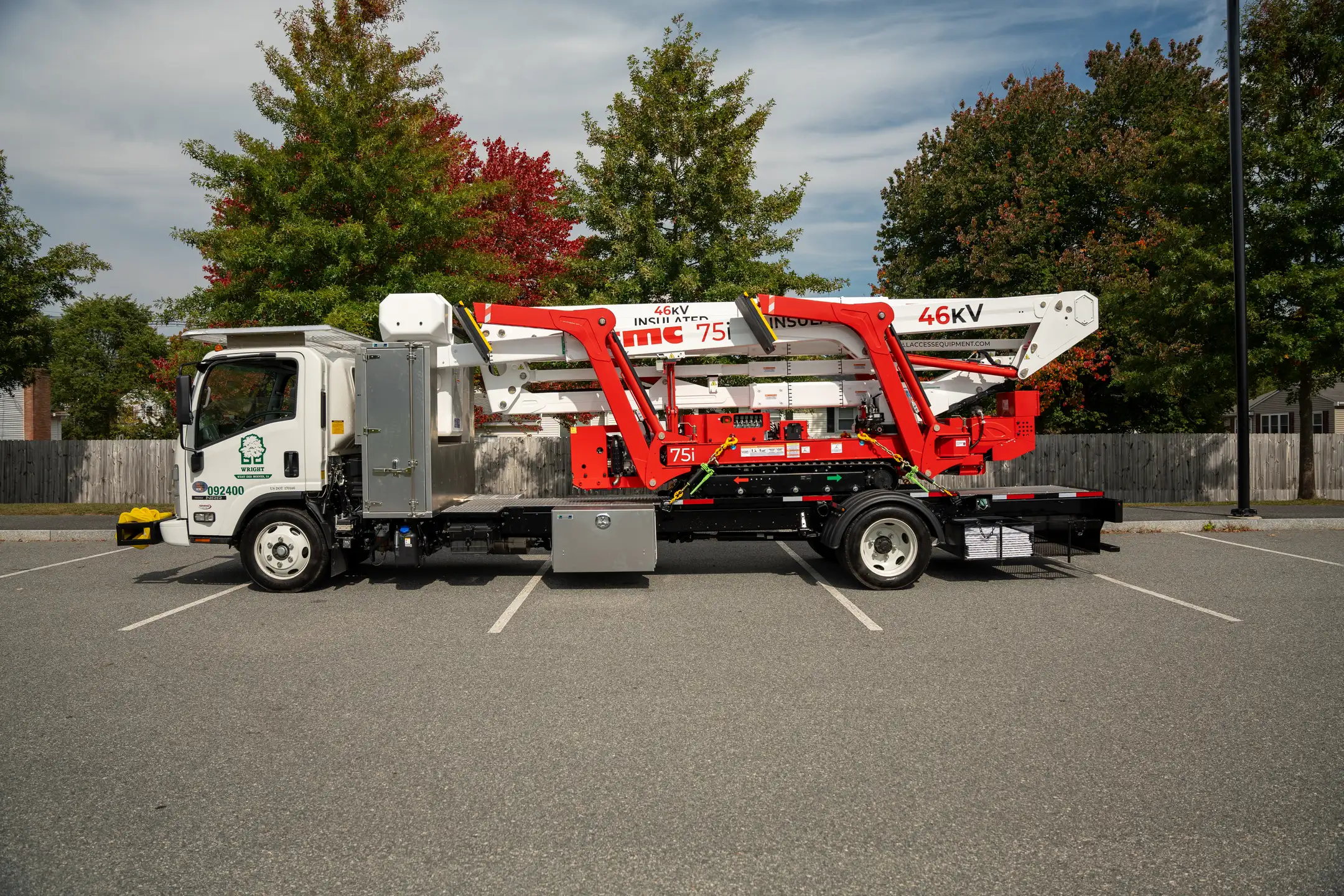

The Isuzu Lift Carrier is a cab-over, under CDL truck designed to carry all Arbor Pro® series, Contractor Pro Heavy Duty Models, and the 75i Utility Pro. The truck transports the aerial lift and allows the lift to be operated from the back of the truck (unattached)
Max. Working Height
Max. Lateral Reach
Max. Basket Load Capacity
Total Net Weight
Ultra-low Carry Lift Deck

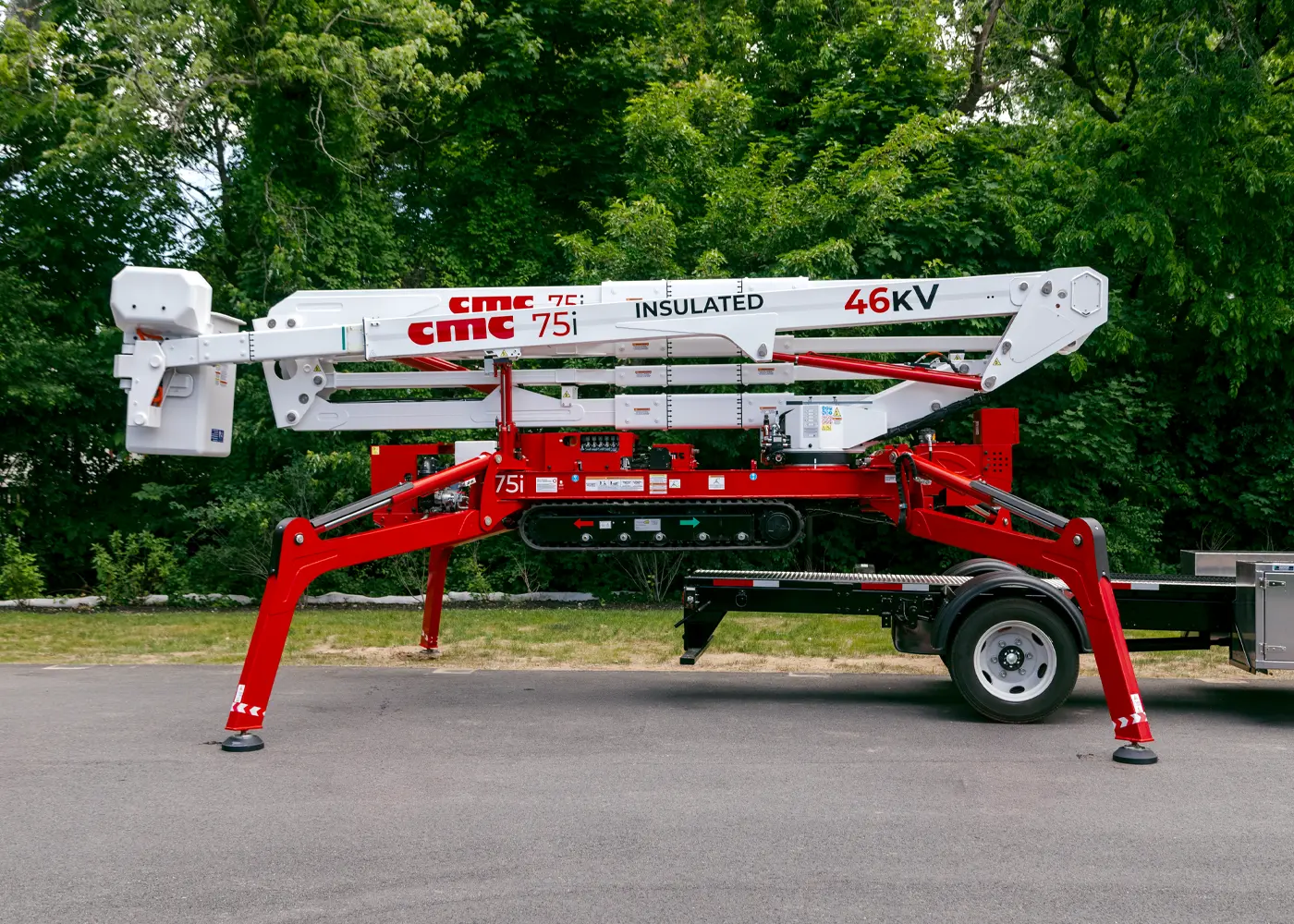

The ultra-low carry deck sits compact on the chassis, allowing to self-load and unload your CMC lift using the height of the automatic leveling outriggers.

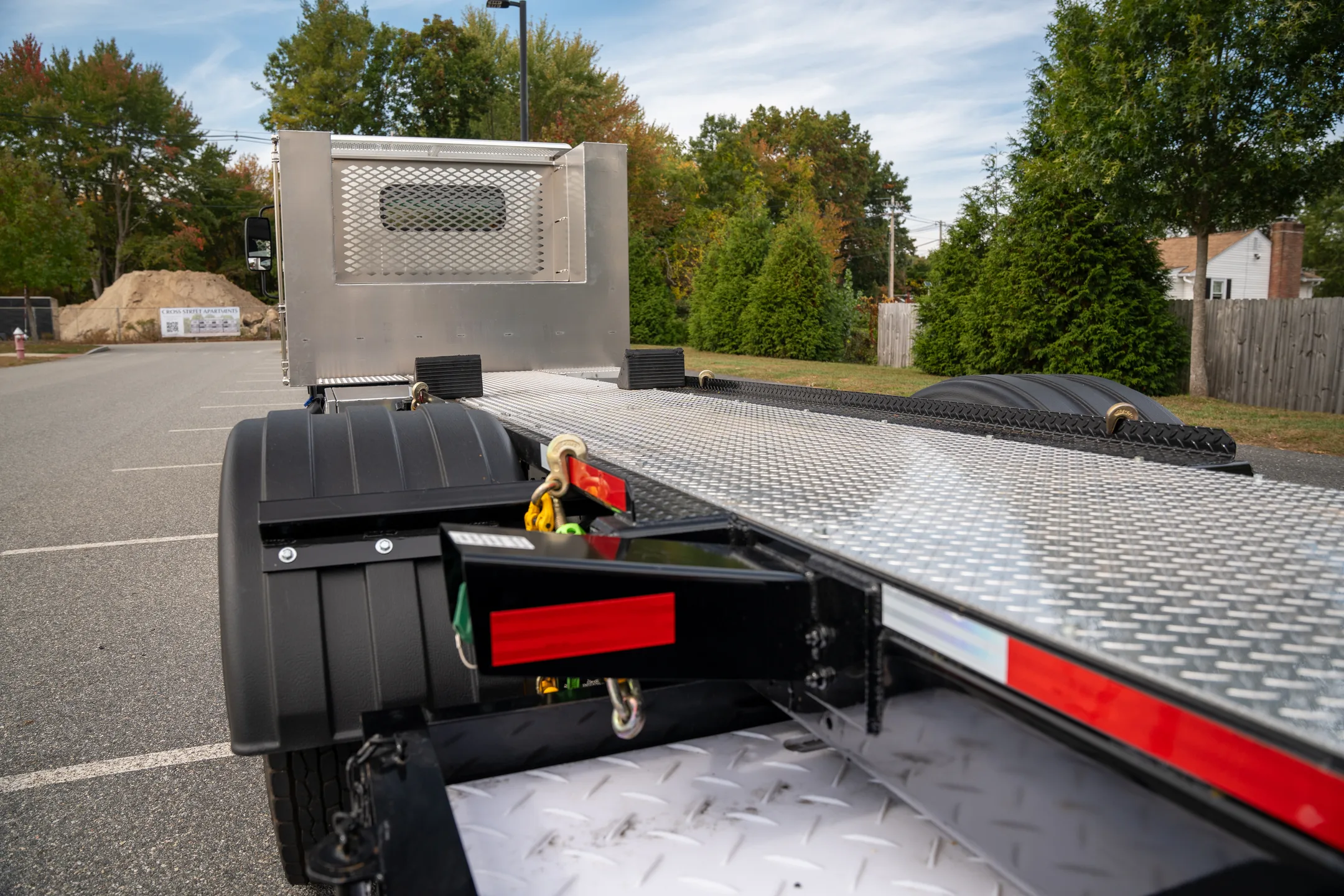

Narrow Aluminum Diamond Plate Deck
The narrow aluminum diamond plate deck keeps the carrier compact for tight streets and driveways while giving you sure footing underfoot.

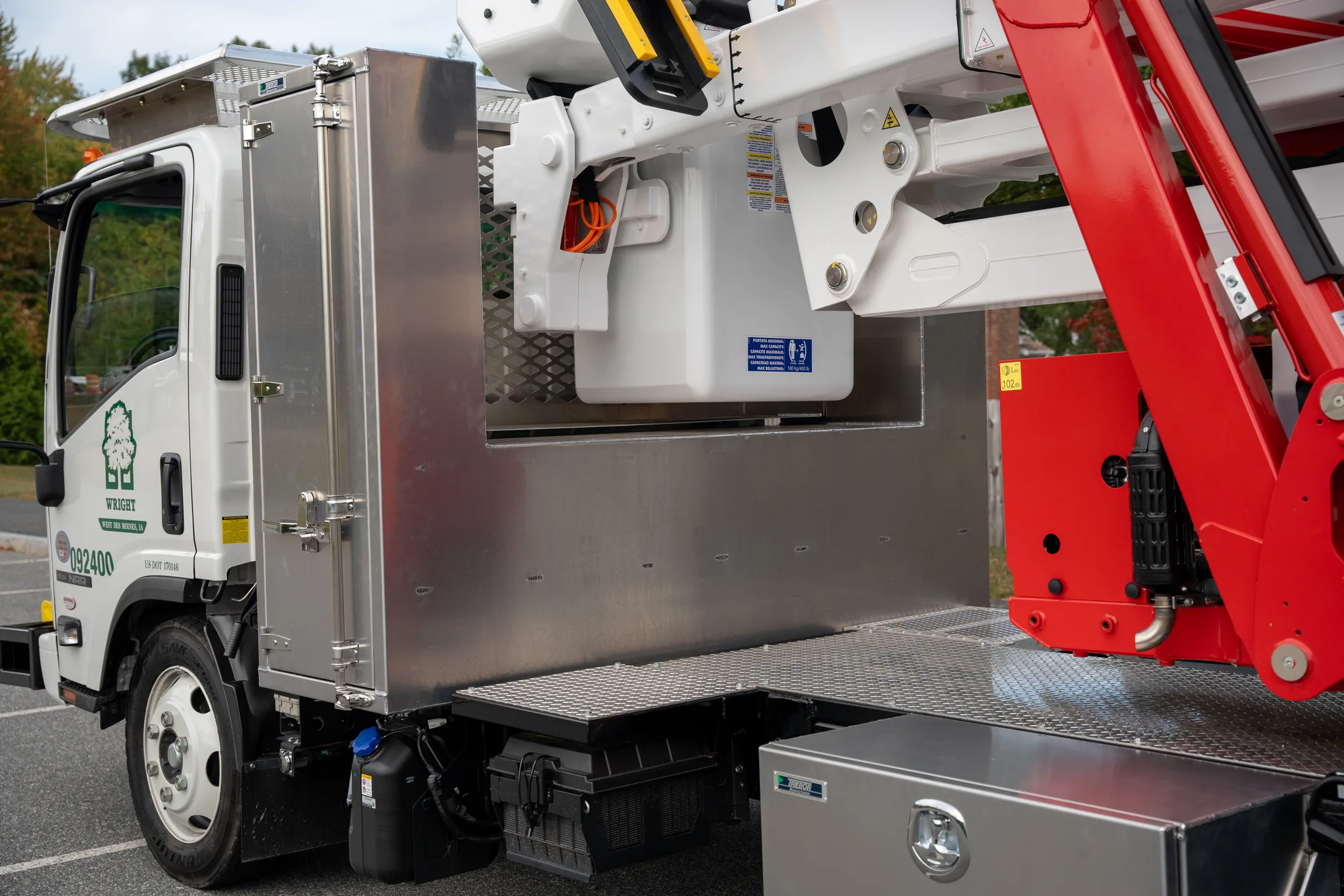

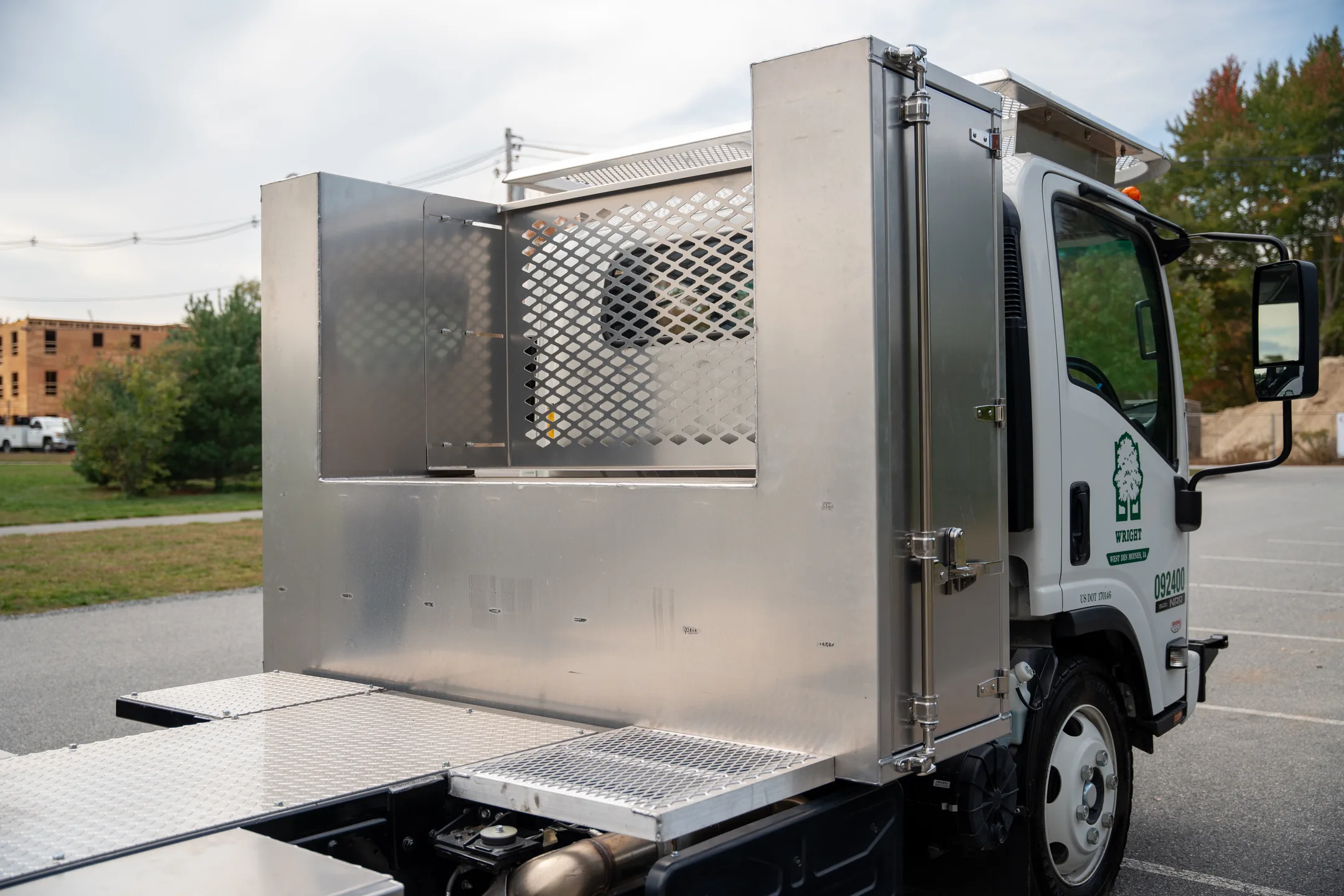

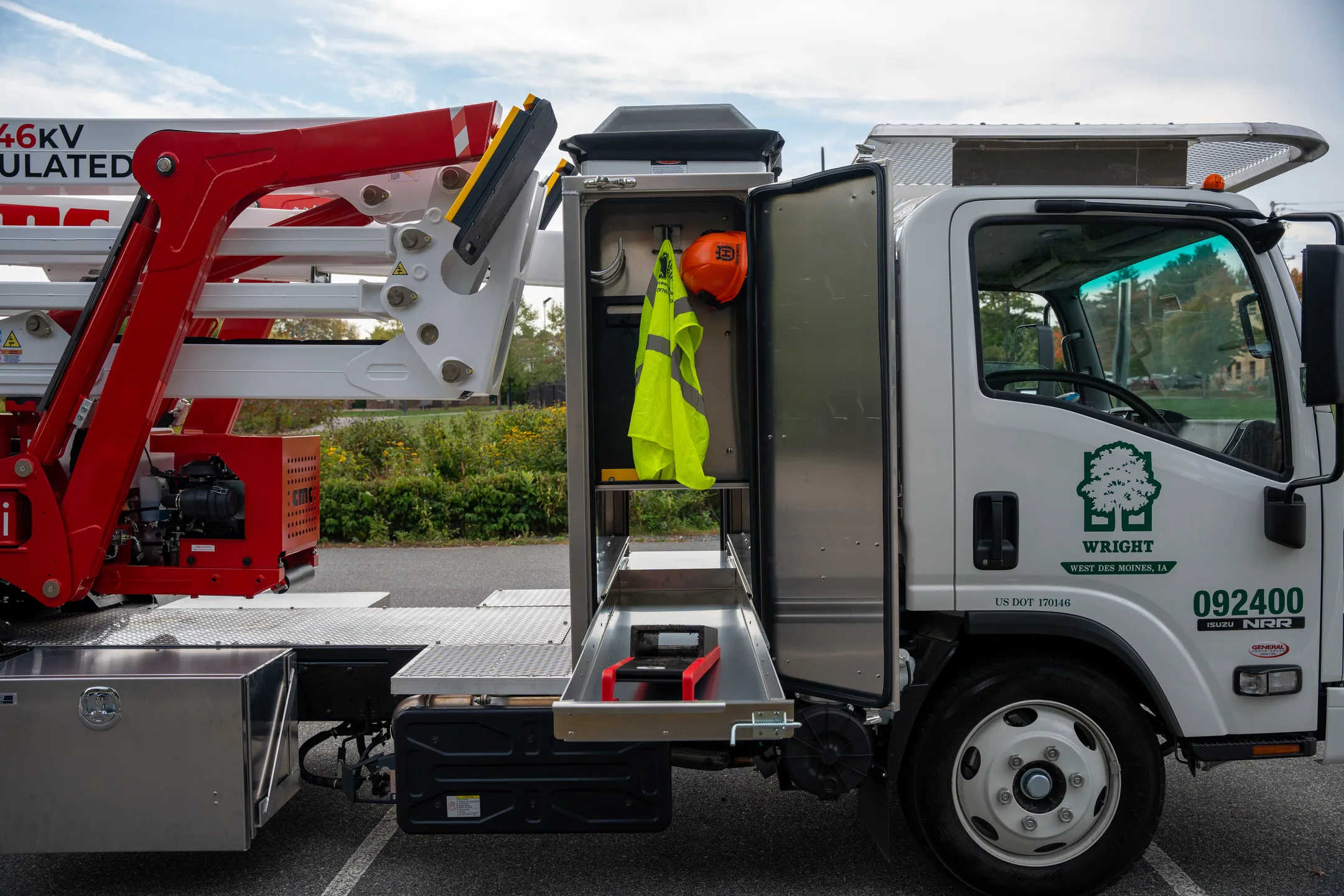

Heavy Duty Aluminum Toolbox
The heavy-duty aluminum toolbox keeps your rigging, saws, and gear secured and organized, so everything you need travels with the lift.
6" Track Stops
The 6" track stops indicate exactly where to position your lift on the deck, and helps brace the lift in transit.

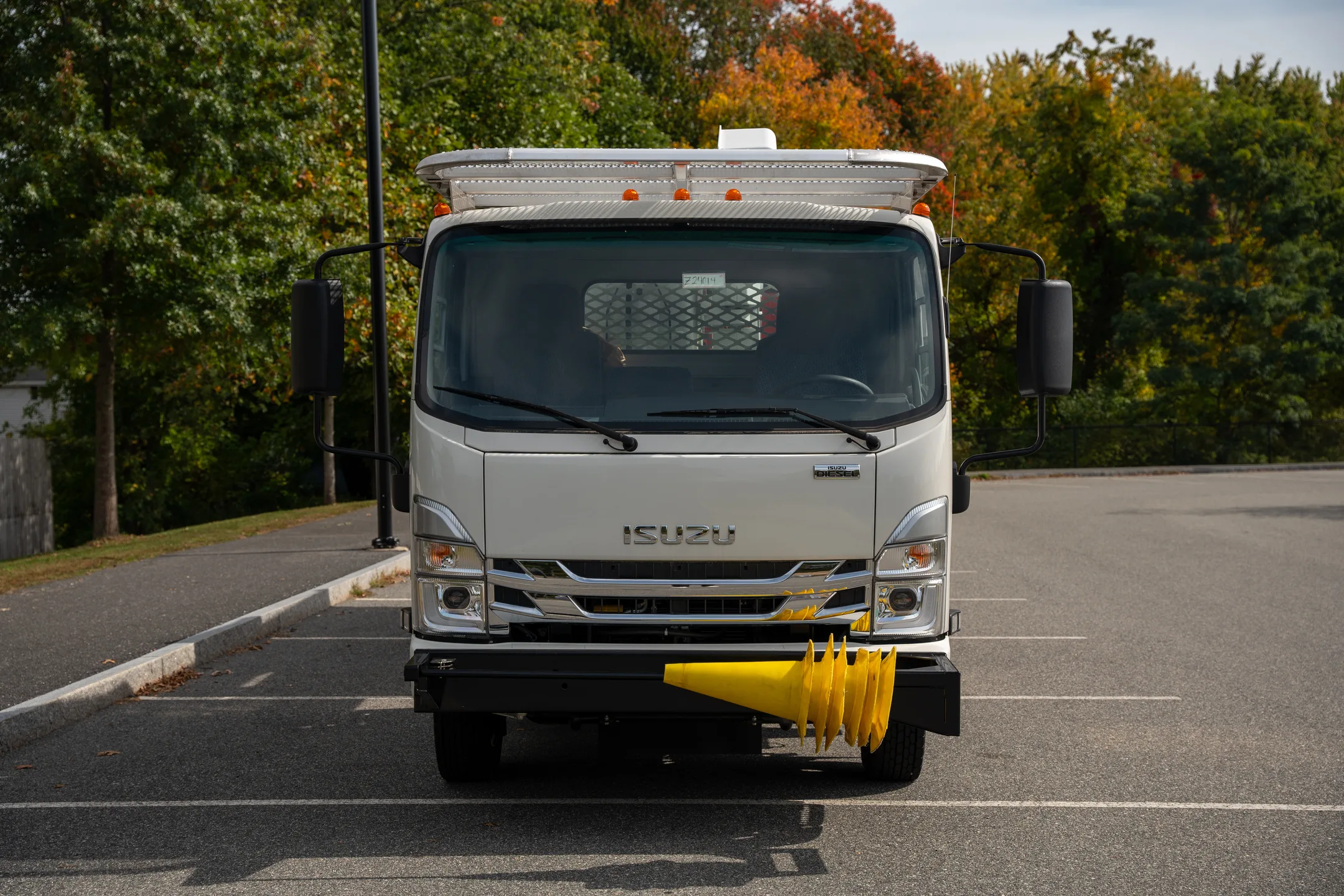

Traffic Cone Holder
The traffic cone holder keeps your cones stowed and within reach, so you set up a safe work zone fast when you reach the site.

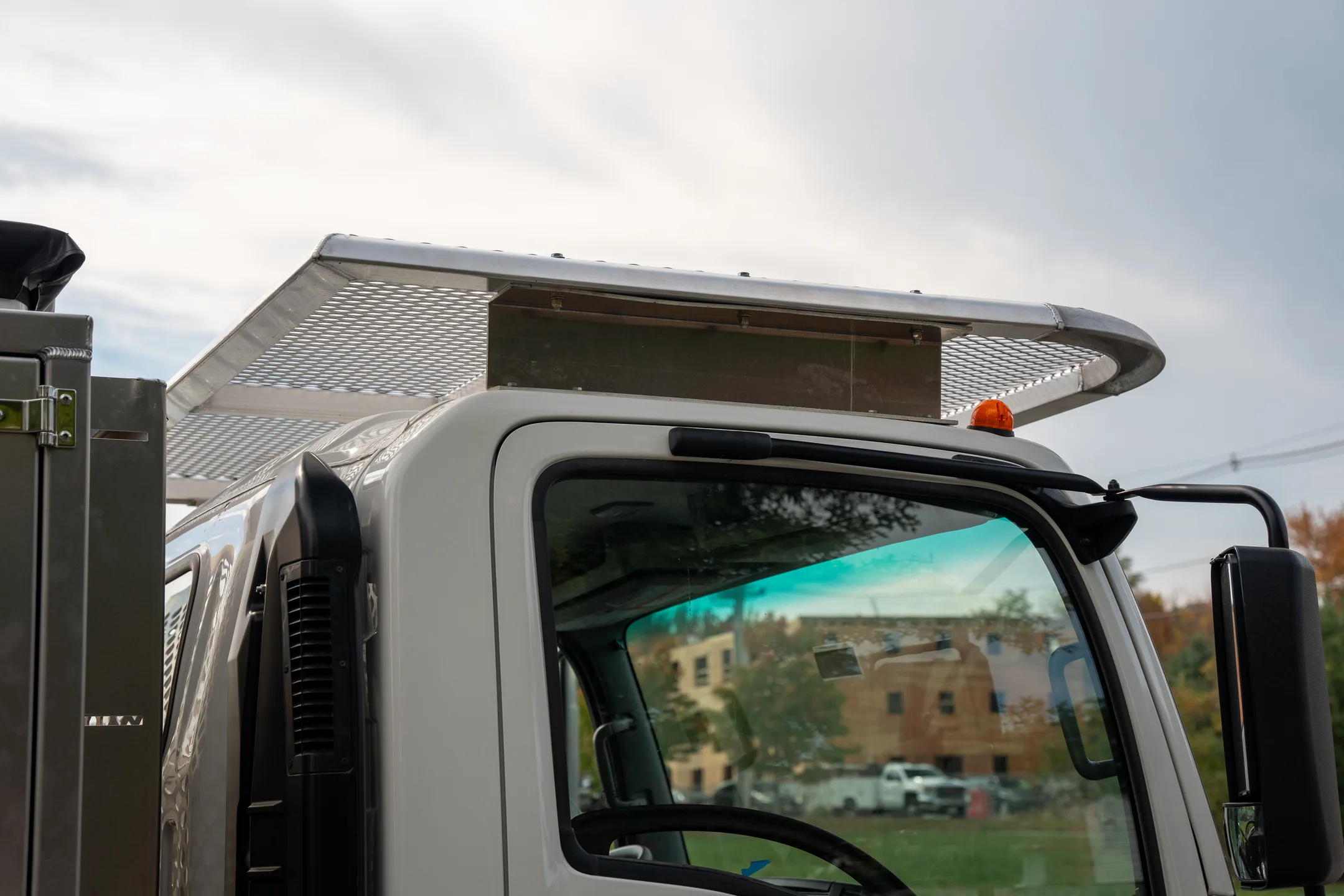

Partial Cab Guard
The partial cab guard shields the truck cab from shifting loads and debris, protecting the driver and the vehicle in transit.

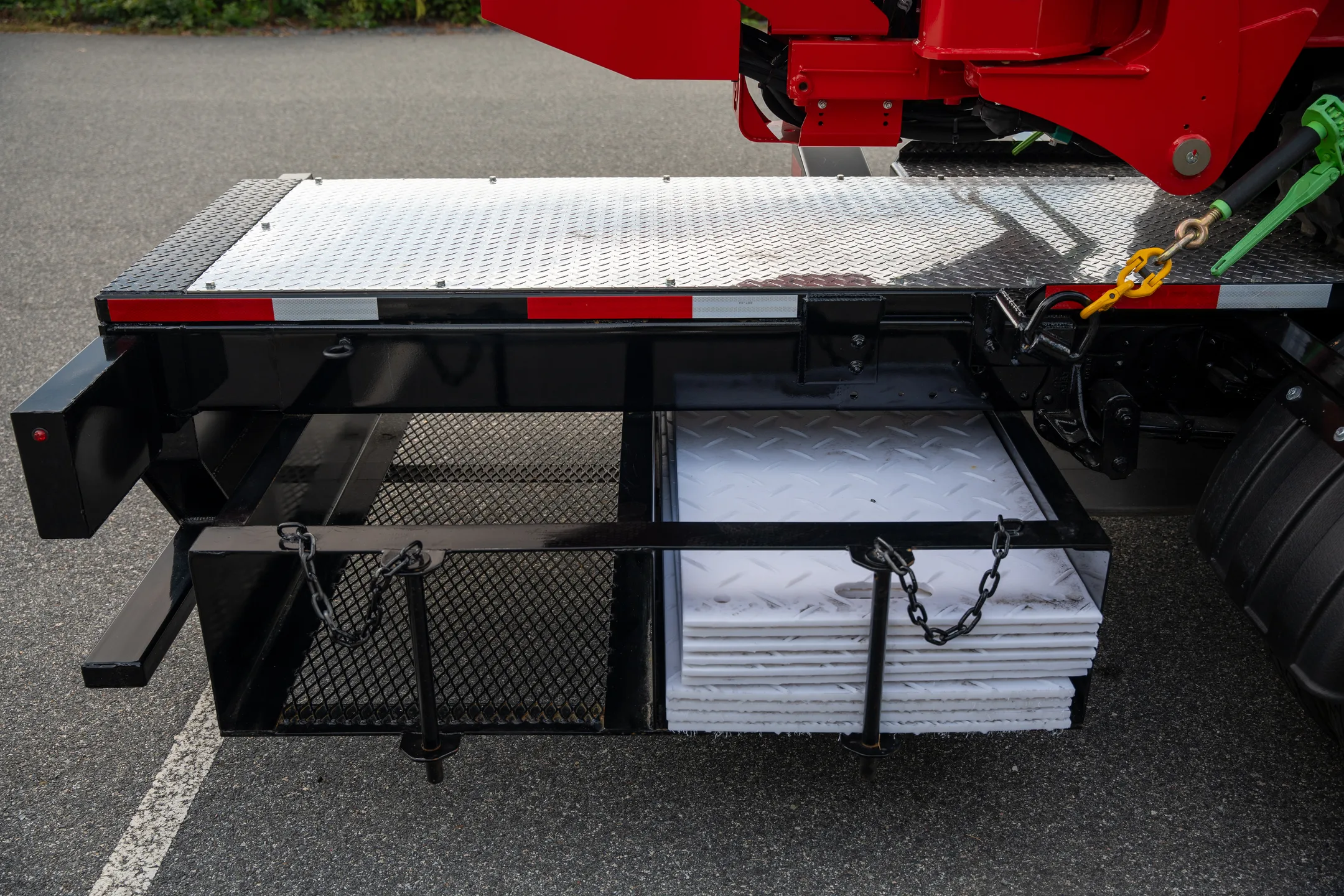

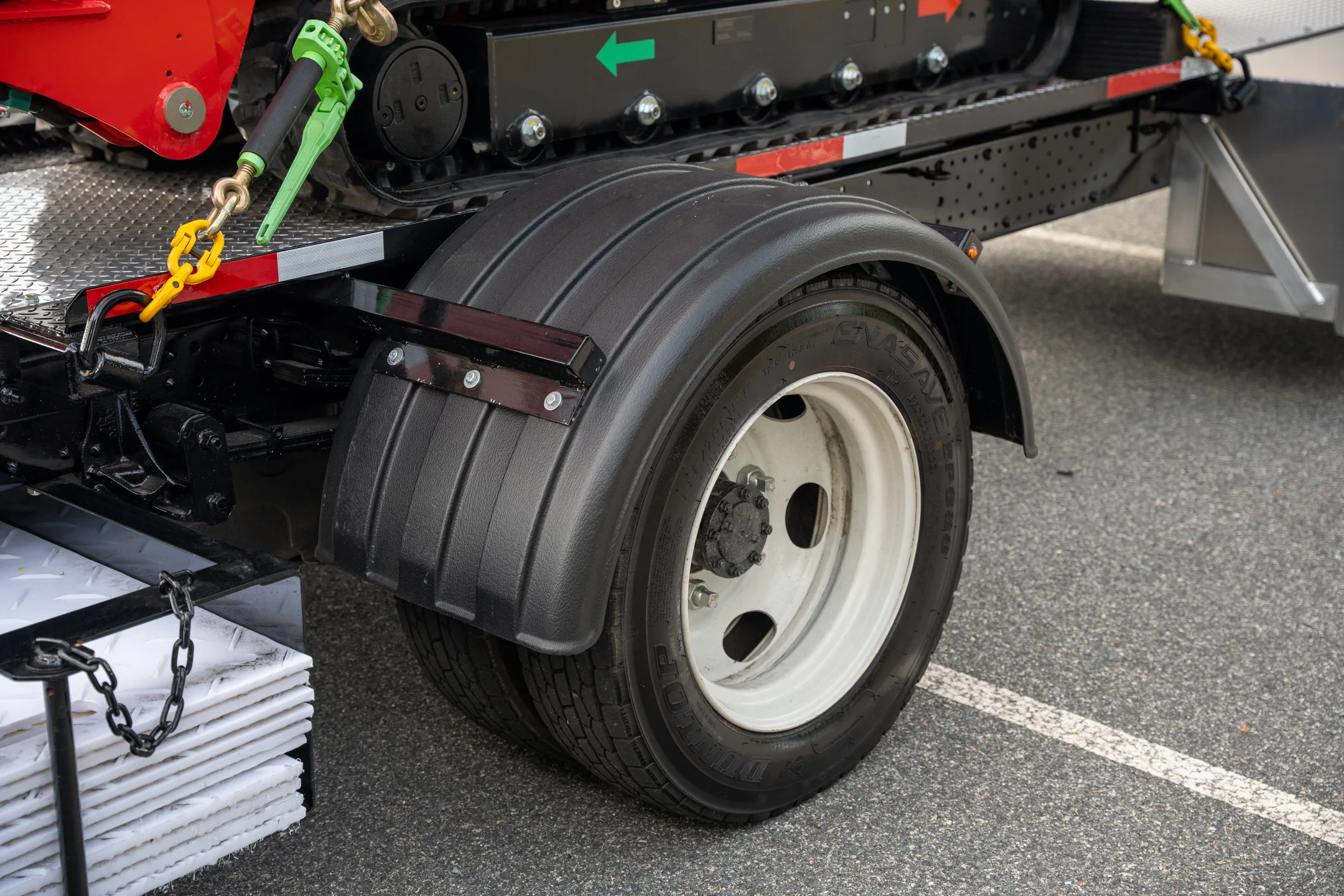

Ground Mat Carrier
The ground mat carrier stores your mats on the outside of the deck, so you protect lawns and surfaces without eating into deck space.
Specs
Model Specifications
The Lift Carrier 176 is an optimized work truck that allows the work crew to operate more efficiently. The transportation of the lift without a trailer makes accessing difficult areas simple. The addition of the toolboxes provides a single vehicle that can be used on the work site with minimal footprint and parking needs.
31"
Maximum Frame Height
81"
Maximum Frame Width
93"
Maximum Frame Length
21' 12"
Overall Truck Length
7' 9"
Overall Truck Height
6' 11"
Overall Truck Width
44"
Maximum Deck Width
7' 9"
Maximum Height with Lift
176"
Wheelbase
26,000 lbs
Maximum Combined Weight
Special features
Under-CDL Package
The carrier is built to stay within non-CDL weight limits, so more of your crew can legally get behind the wheel without holding a commercial license. That means less scheduling around who can drive, easier hiring, and a rig any qualified operator on your team can take to the job.
Special features 2
Self-Loading Lift Carrier

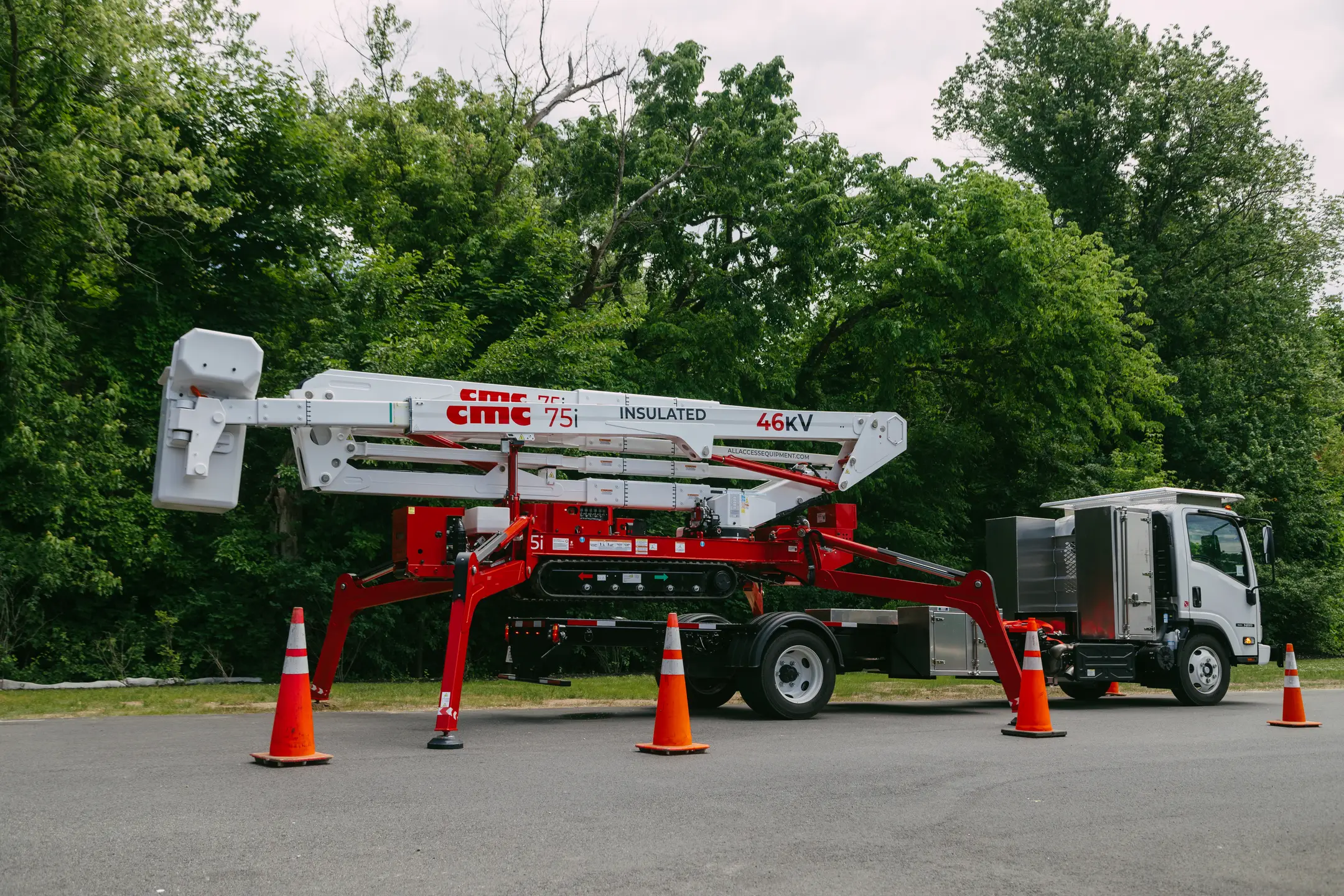

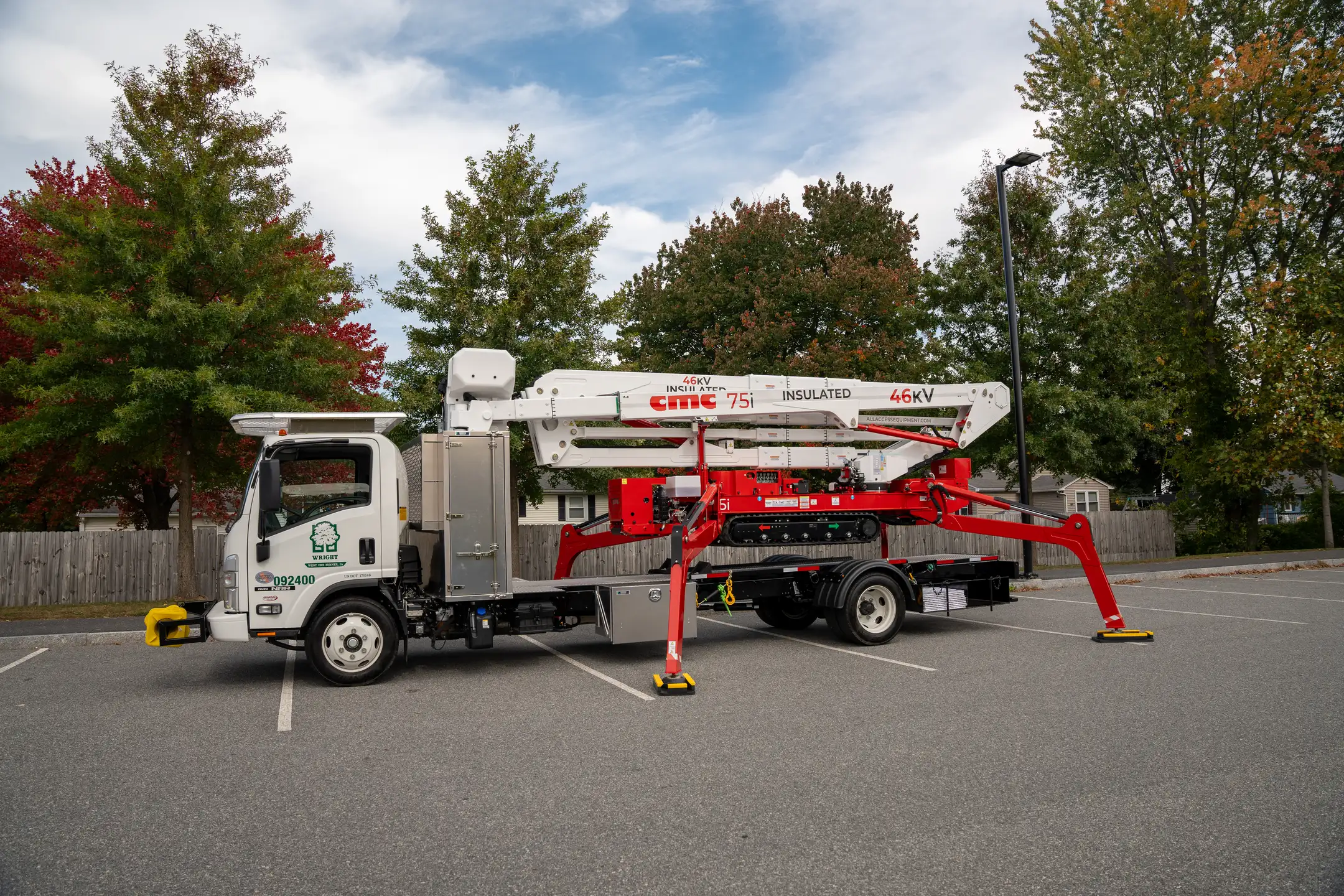

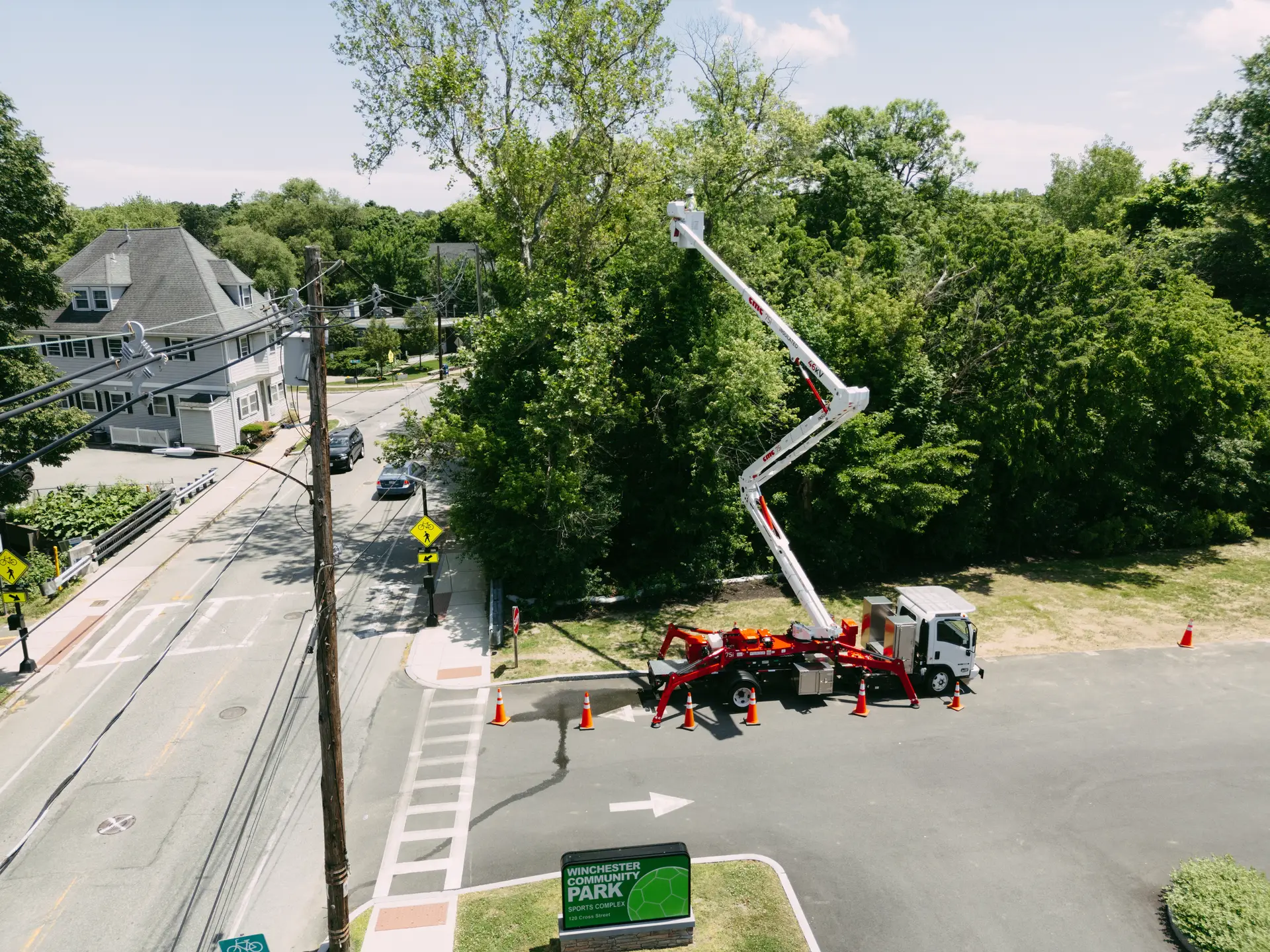

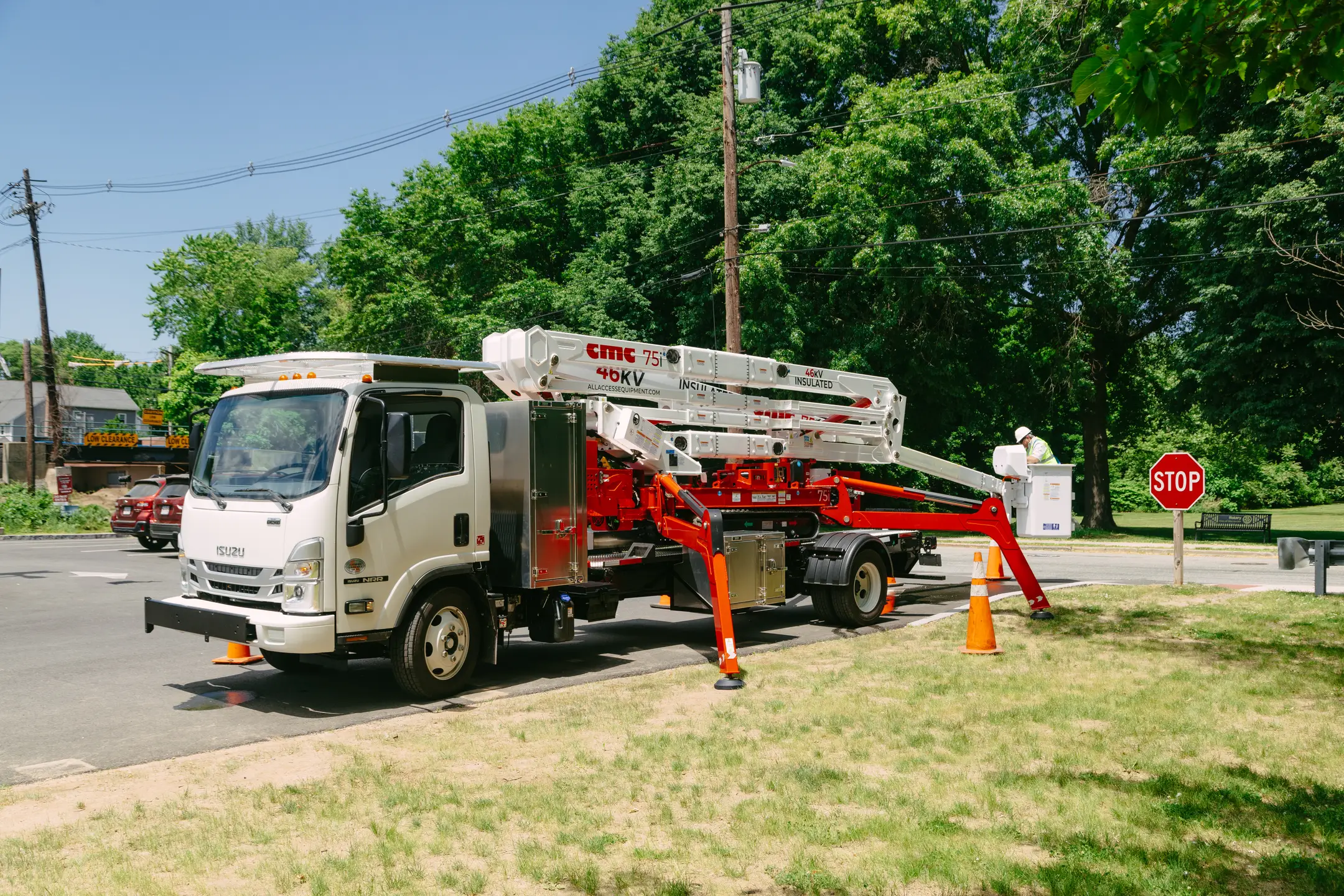

The patented carrier system lets your CMC lift load and unload itself using its own outriggers, with no ramps, winches, or second machine required. You drive up, deploy the outriggers, pull out the truck, lower your lift, and you're driving into a backyard working. One person and one truck handle the whole transport and setup cycle.
Special features 3
Tight-Turning Cab-Over
The cab-over design puts the driver over a short wheelbase for a sharp turning radius, so you thread narrow residential streets, tight driveways, and packed job sites without a three-point turn. When your work takes you into town and around obstacles all day, this is the truck that gets in and out clean. The complete package will also fit underneath low bridge clearances as low as 10' 4".
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description

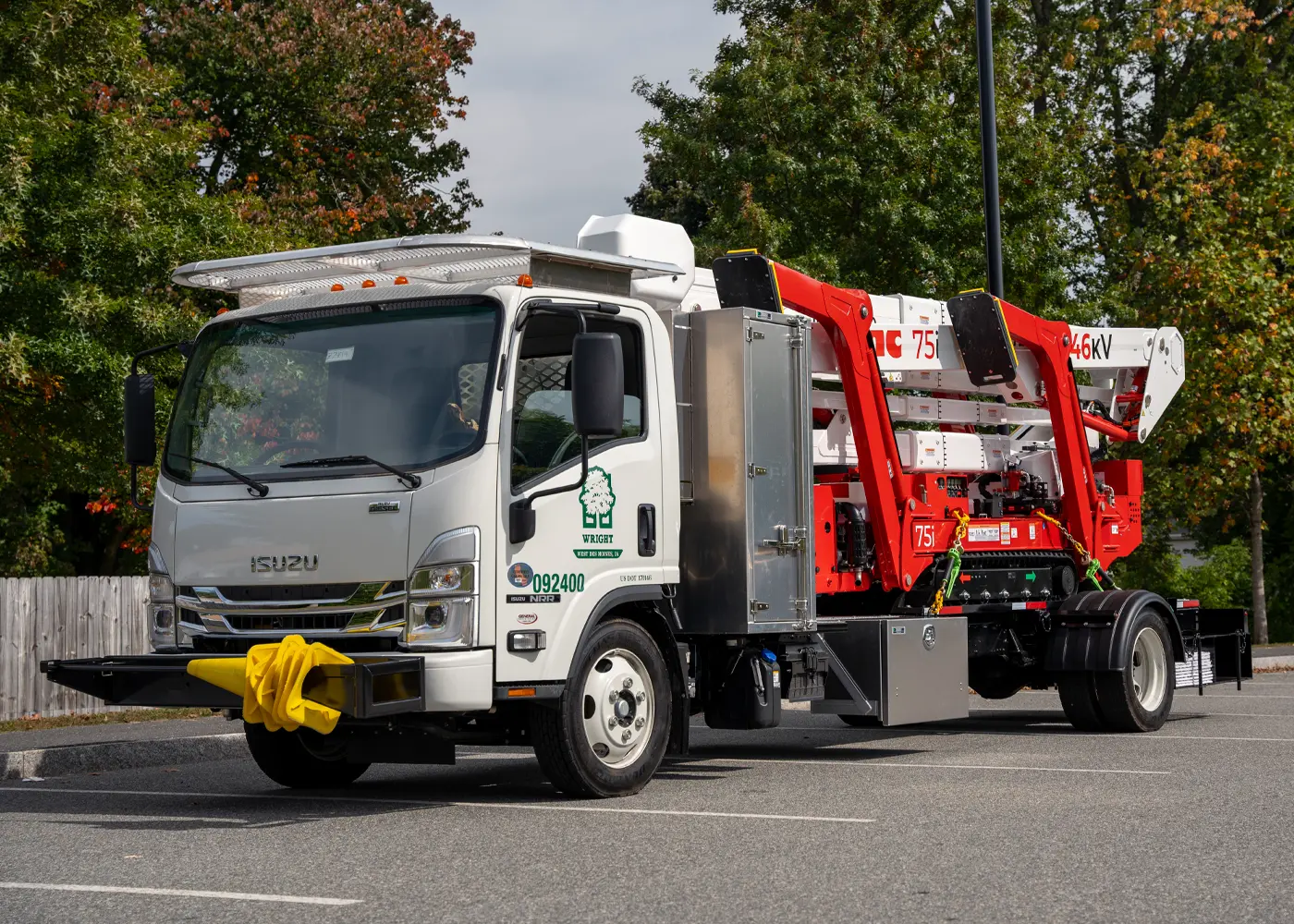

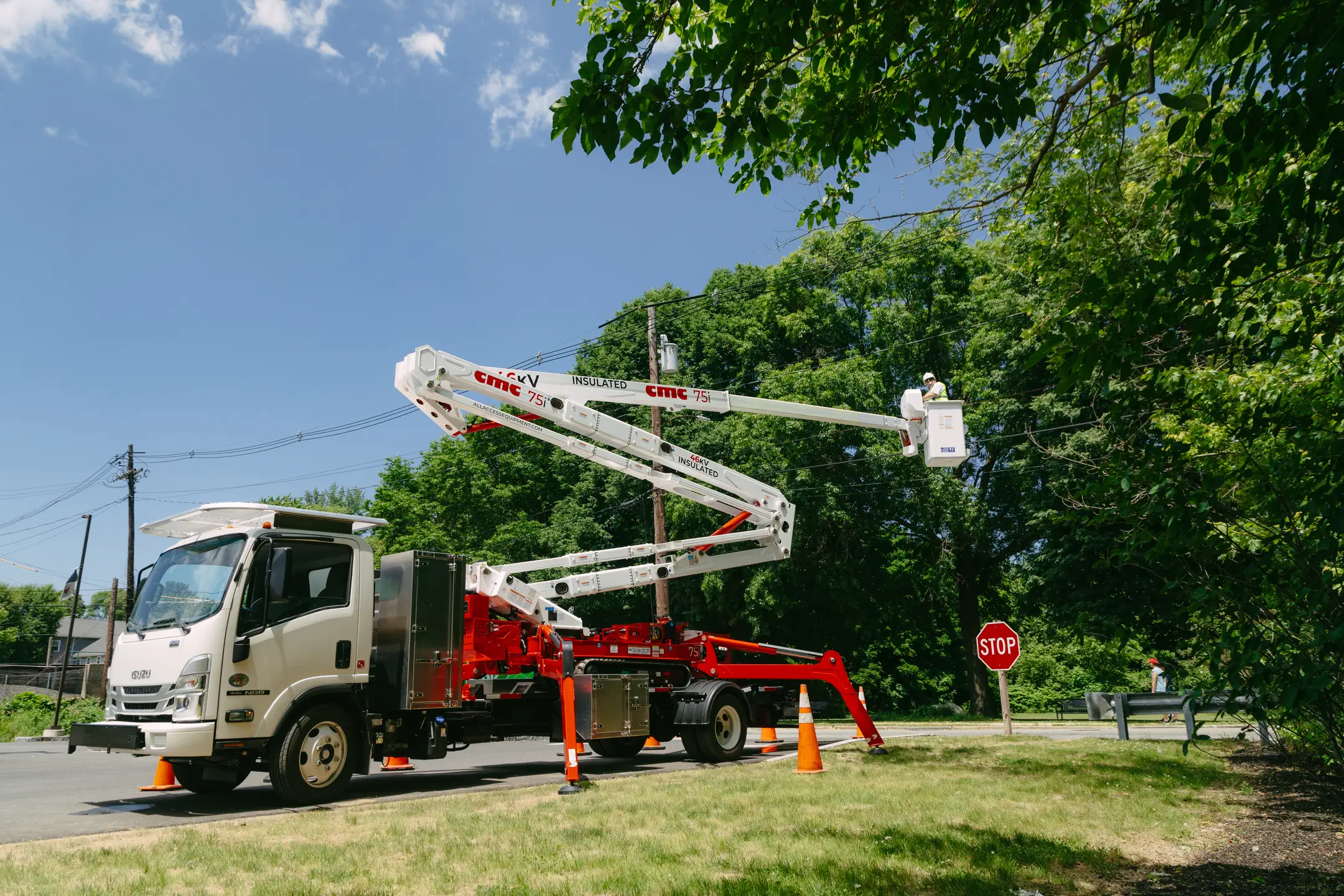

The CMC Lift Carrier Pro

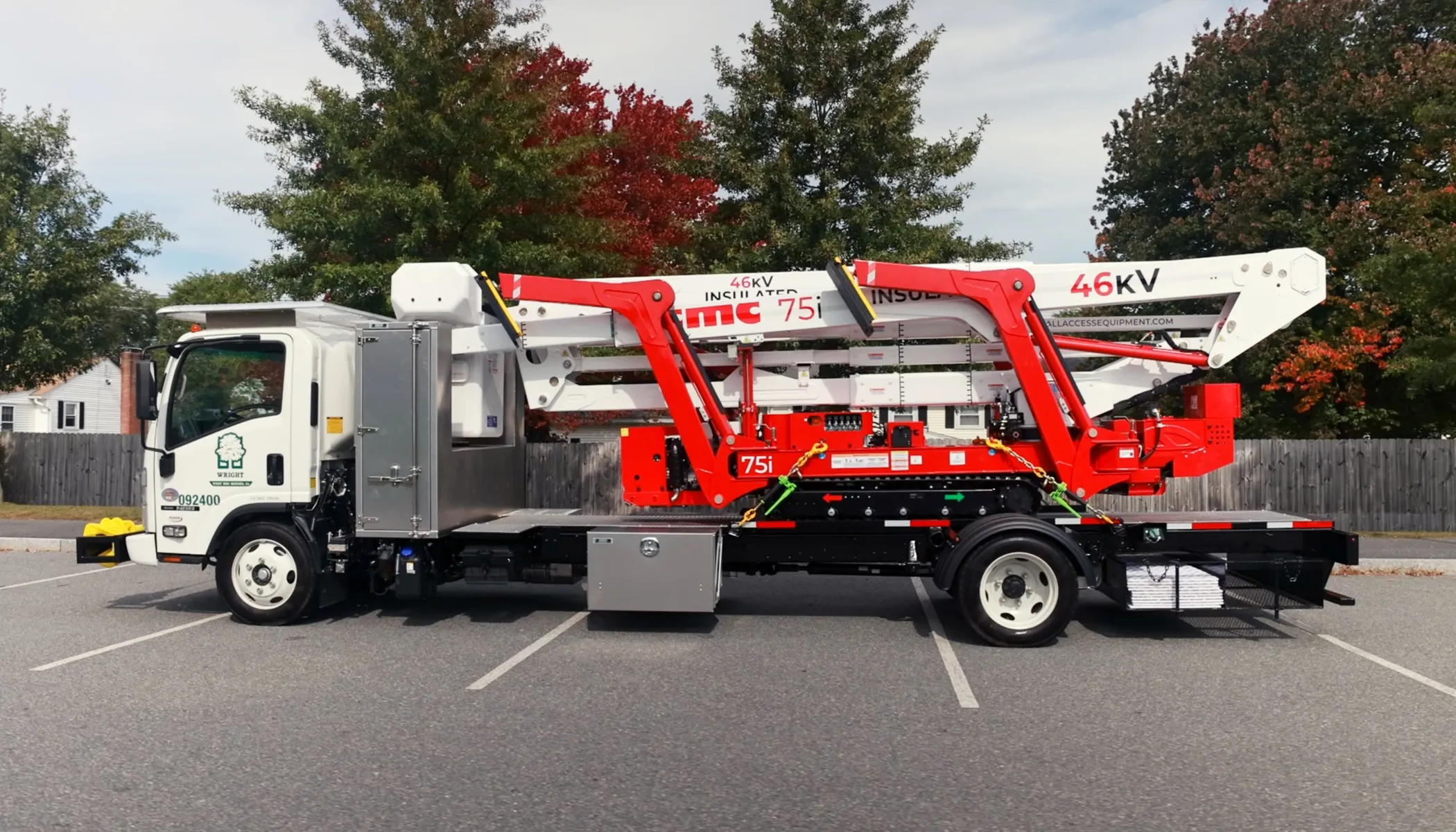

Overview of the Isuzu Lift Carrier Pro with the CMC 75i.
