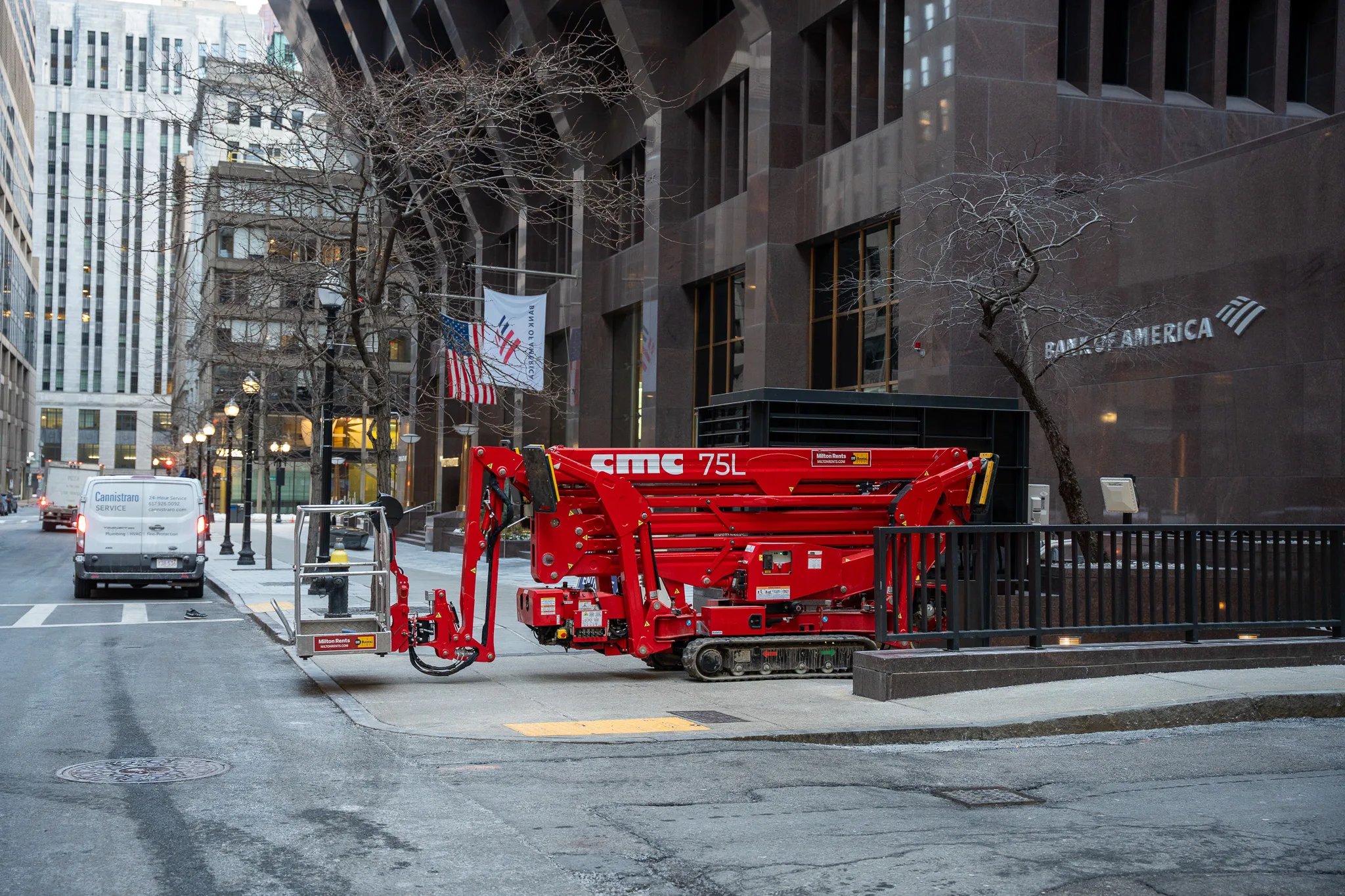

Tracked Aerial Lift
75L Contractor Pro
More Uptime. Rental-Ready Faster.
Built for the fleets and contractors who make a living by keeping machines in the field. CMC tracked lifts are engineered for durability, simplicity, and fast turnarounds. Because utilization is everything.
Contractor Pro Series
One versatile lift series that handles more applications, more environments, and more customers—helping you increase utilization, reduce downtime, and boost return on investment
Max. Working Height
75 ft
Max. Lateral Reach
40 ft
Max. Basket Load Capacity
441 lbs
Total Net Weight
6,615 lbs

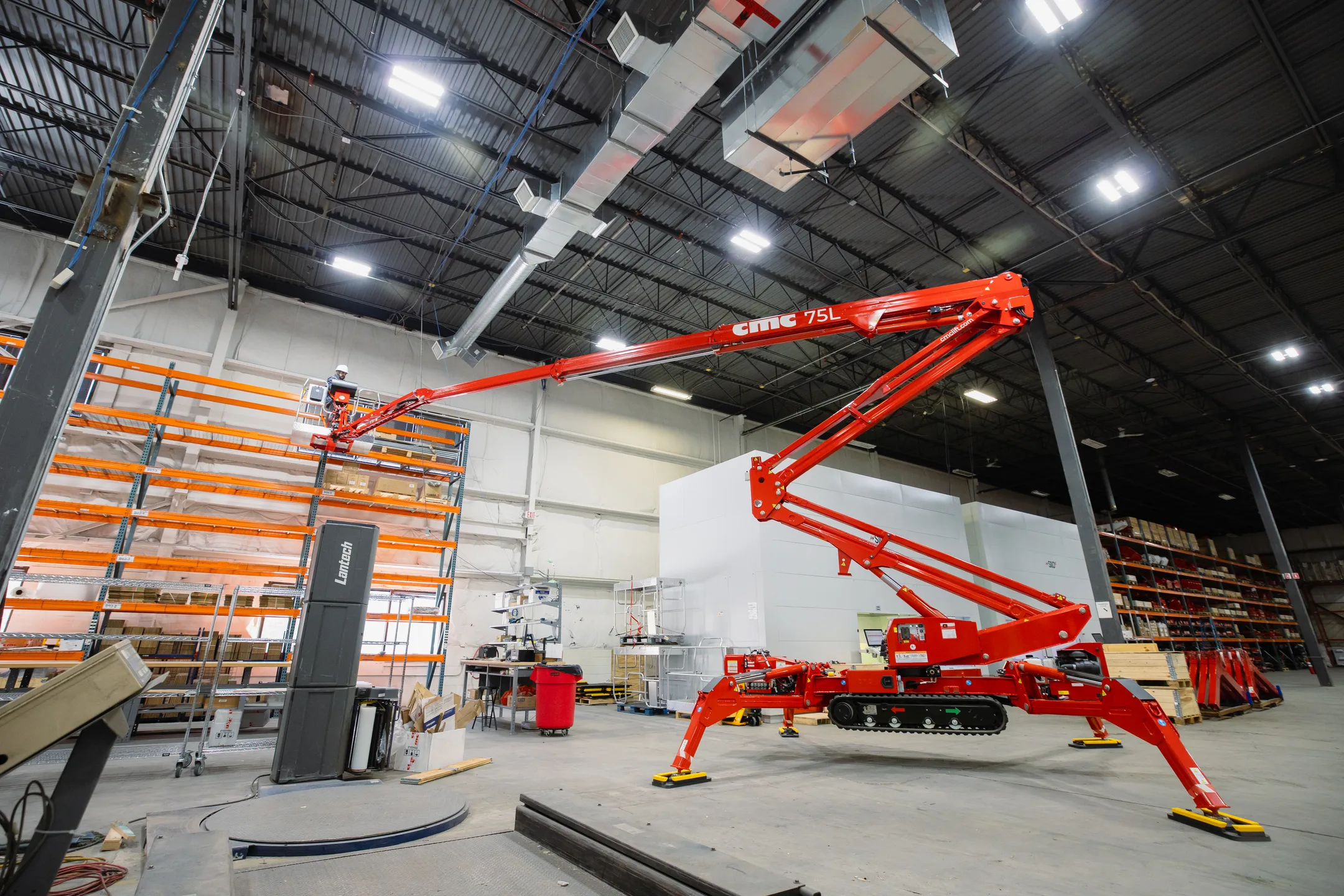

Telescopic Insulated Upper Boom
The telescopic upper boom reaches a 75 ft working height and up to 40 ft of side reach, so you cover more of the job from a single setup.
Double Pantograph Insulated Lower Boom
The double pantograph lower boom lifts you straight up to clear obstacles at the base before you extend out over the work.
Automatic Chassis Self-Leveling
Automatic chassis self-leveling handles slopes up to 13° (23%), setting up fast on uneven ground so you stay level and safe while cutting setup time.
Rotating Rear Mounted Turret
The rear-mounted rotating turret opens a wide work zone away from the base, so you reposition the basket instead of the whole machine.
Adjustable Tracks

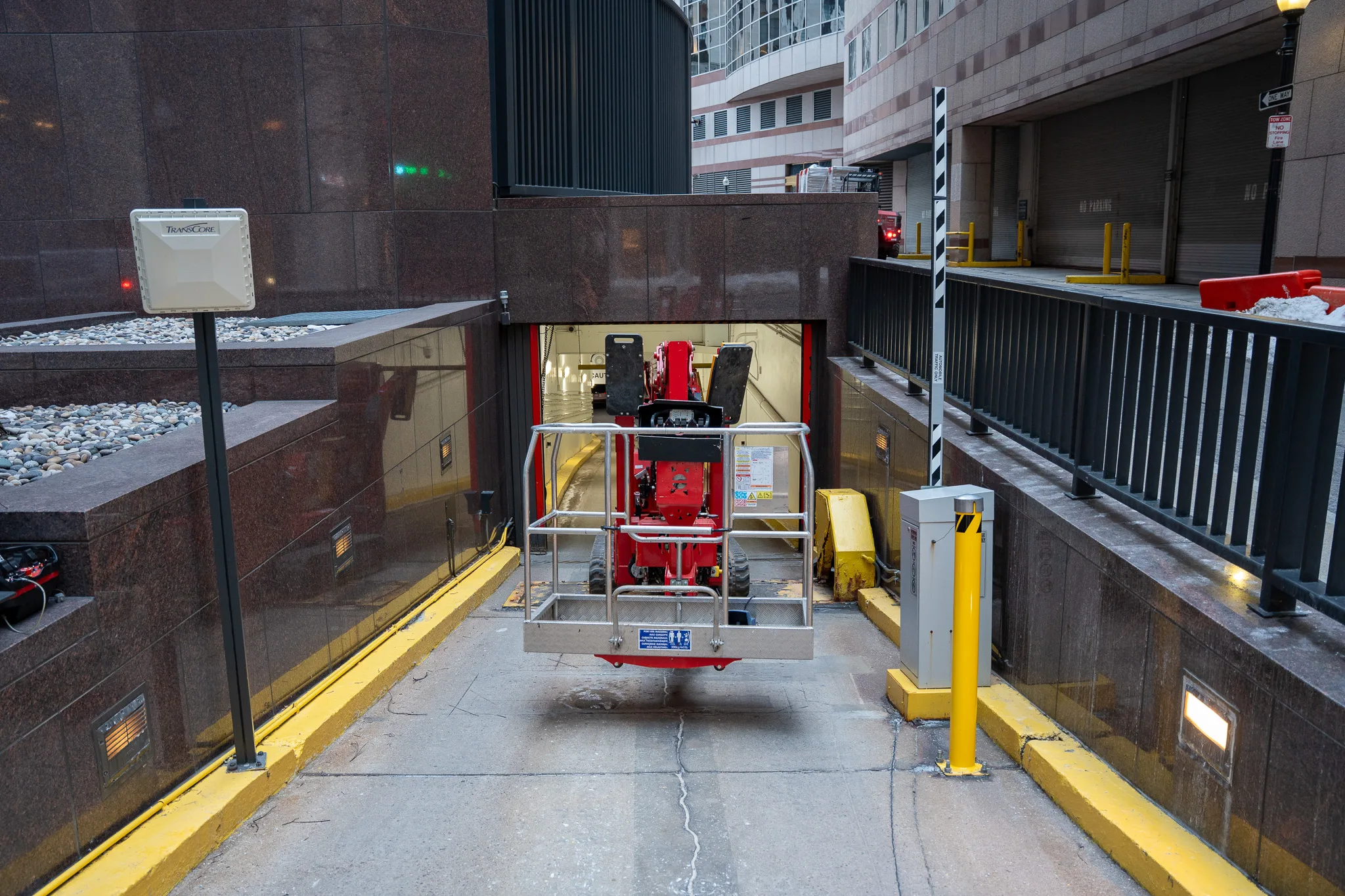

Adjustable tracks narrow to clear 36" gates and widen for stability, getting you into tight access spots others can't reach.

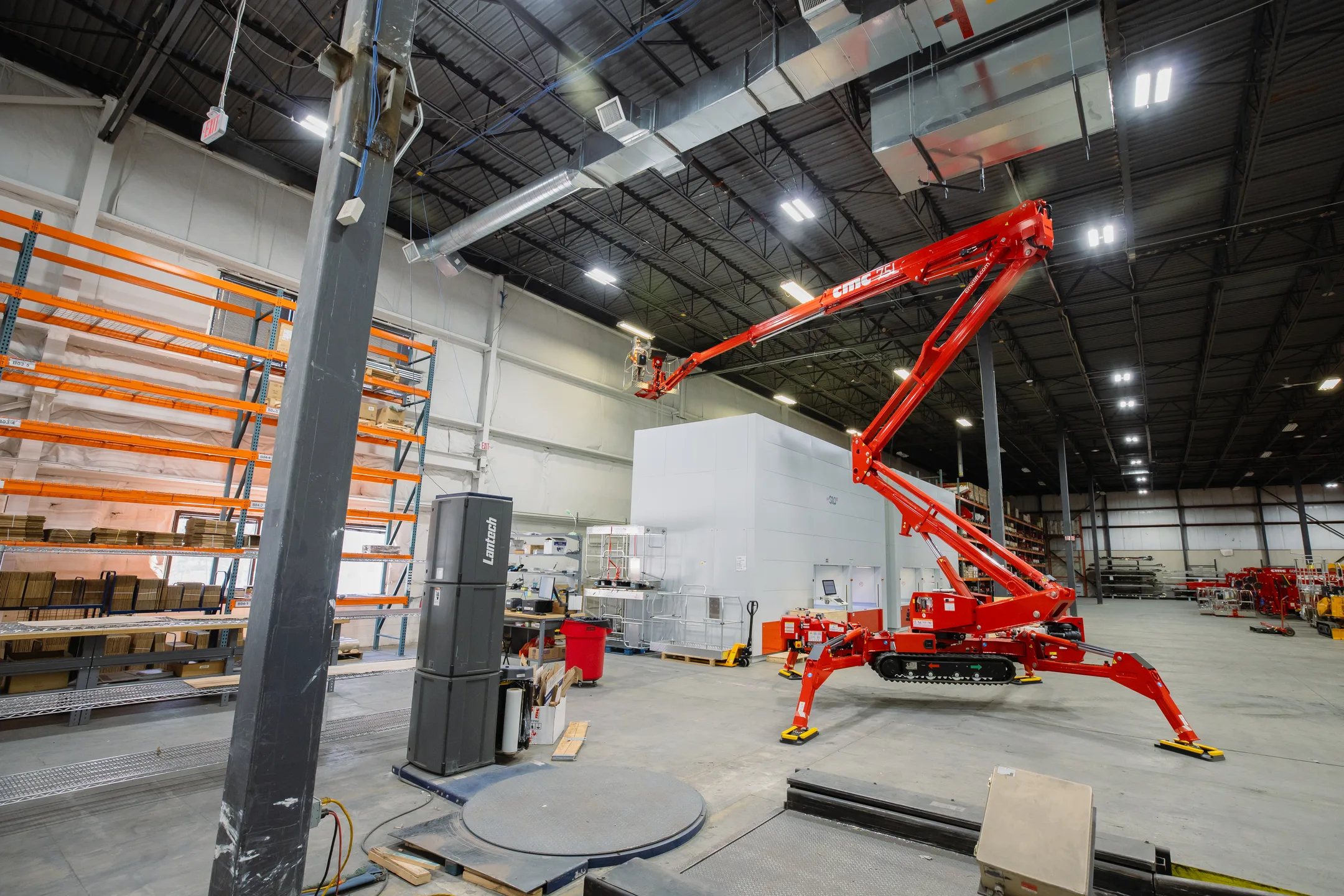

Multiple Outrigger Positions
Multiple outrigger positions let you set up wide for stability or narrow in tight spots, so you can work safely wherever the job puts you.
Fiberglass Basket with Rotation
The fiberglass basket rotates +/- 90° with a 90° articulating jib, letting you position precisely and tuck into tight spots the boom can't reach.
Specs
Model Specifications
Reach higher, set up faster, work where others can't. That's the capability built into every CMC lift.
75'
Working height
40' 8"
Max. lateral reach
441 lbs
Max. basket capacity
+/-90º
Basket rotation
90º
Jib articulation
Honda iGX390 Gas
Engine
0 - 2.2 ft/s
Travel speed
17º (31%)
Gradeability
13º (23%)
Max. slope to stabilize
6,615 lbs
Total weight
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Story From the Field: Pro Technologies
Go behind the scenes with Pro Technologies at a New Hampshire high school. Owner Steve Lawrence shares how the CMC Contractor Pro Light Duty lift speeds up alarm installations, boosts versatility, and gives them a competitive edge.
inclusions
Included with every lift
Every CMC lift is delivered with hands-on familiarization, manuals and documentation, a quick-access QR code linking to how-to videos, a safety harness, and spare equipment.
In-person delivery
In-person delivery and familiarization for up to 4 operators.
Operator's manual
Complete operator's manual, spare parts manual, service diagrams, error code lists, and quick guides.
How-to operation videos
Playlist link for familiarization videos to train future personnel.
Fall-arrest harness
A safety fall-arrest harness.
Spare equipment
Spare battery, fuse kit, and a coiled cord for wireless remote machines (when applicable).
