Carlton Stump Grinder

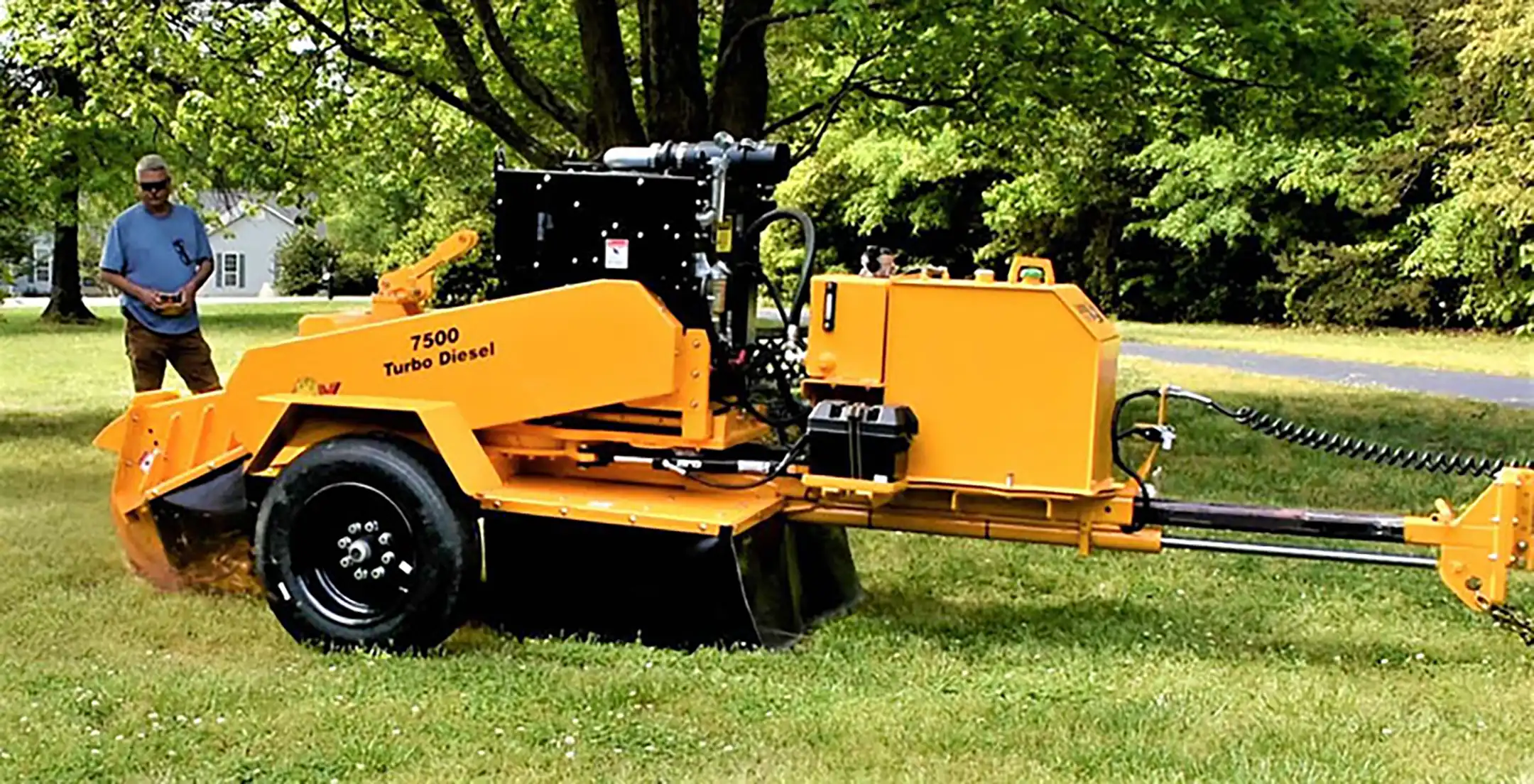

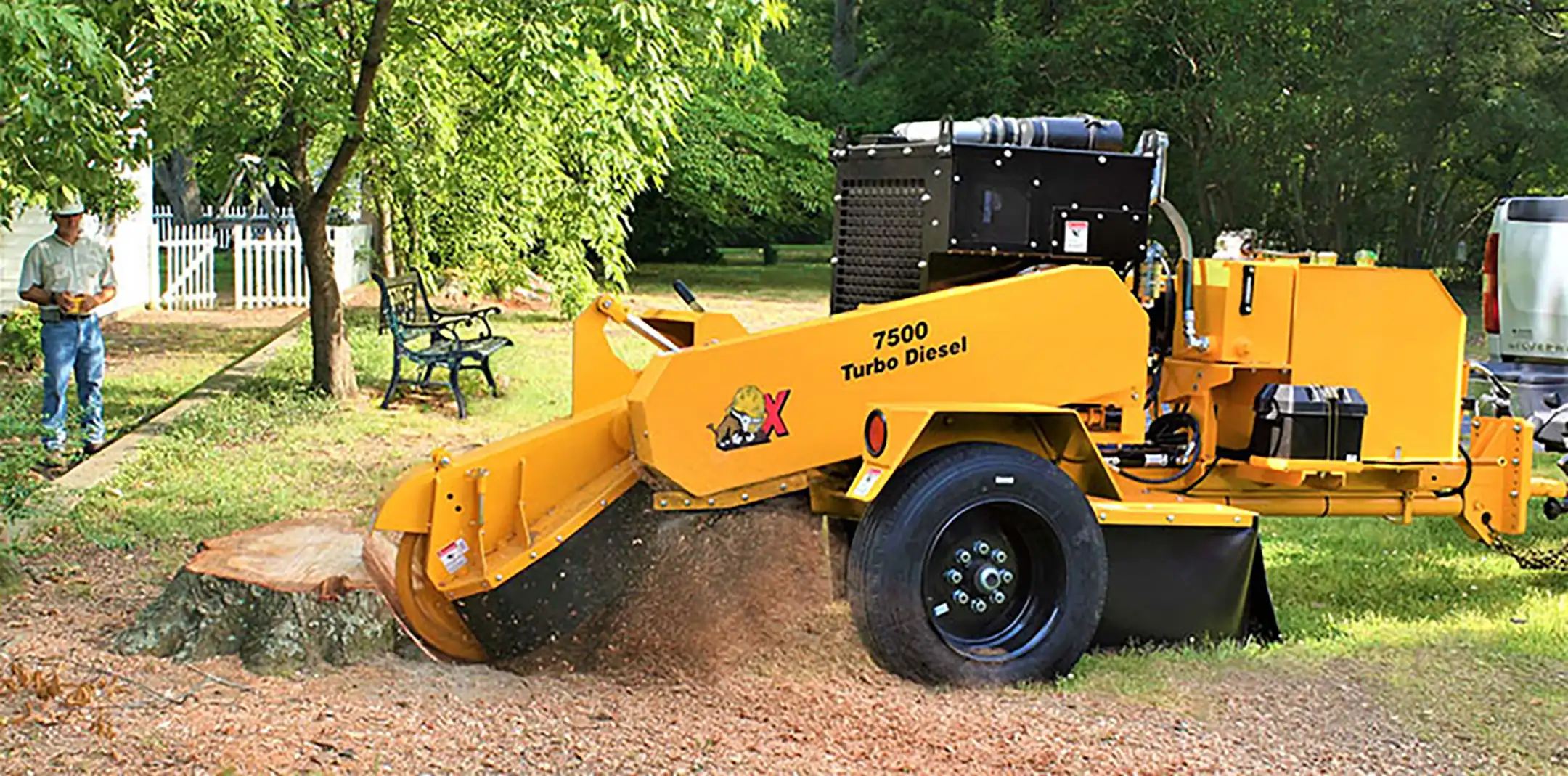

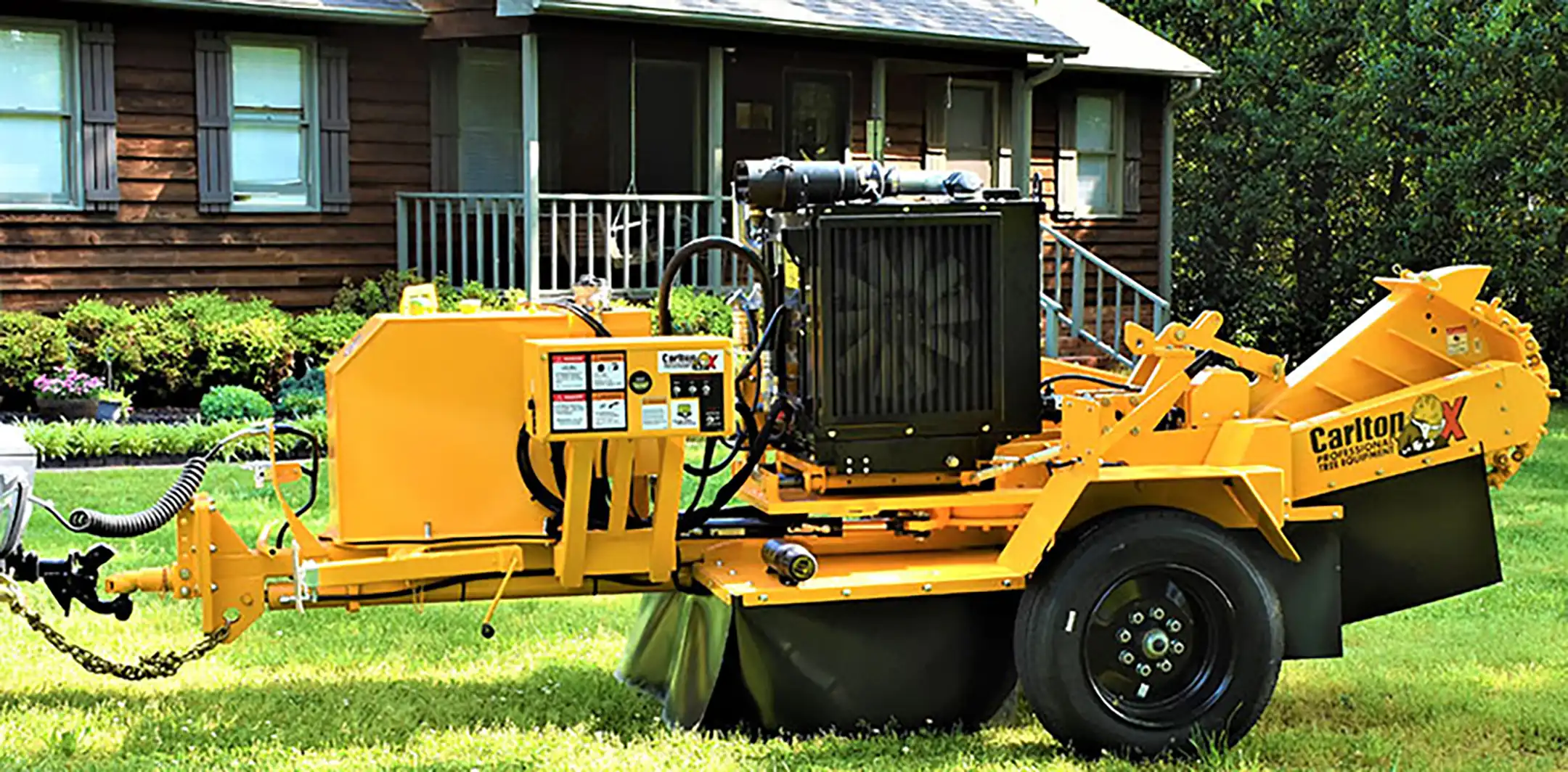

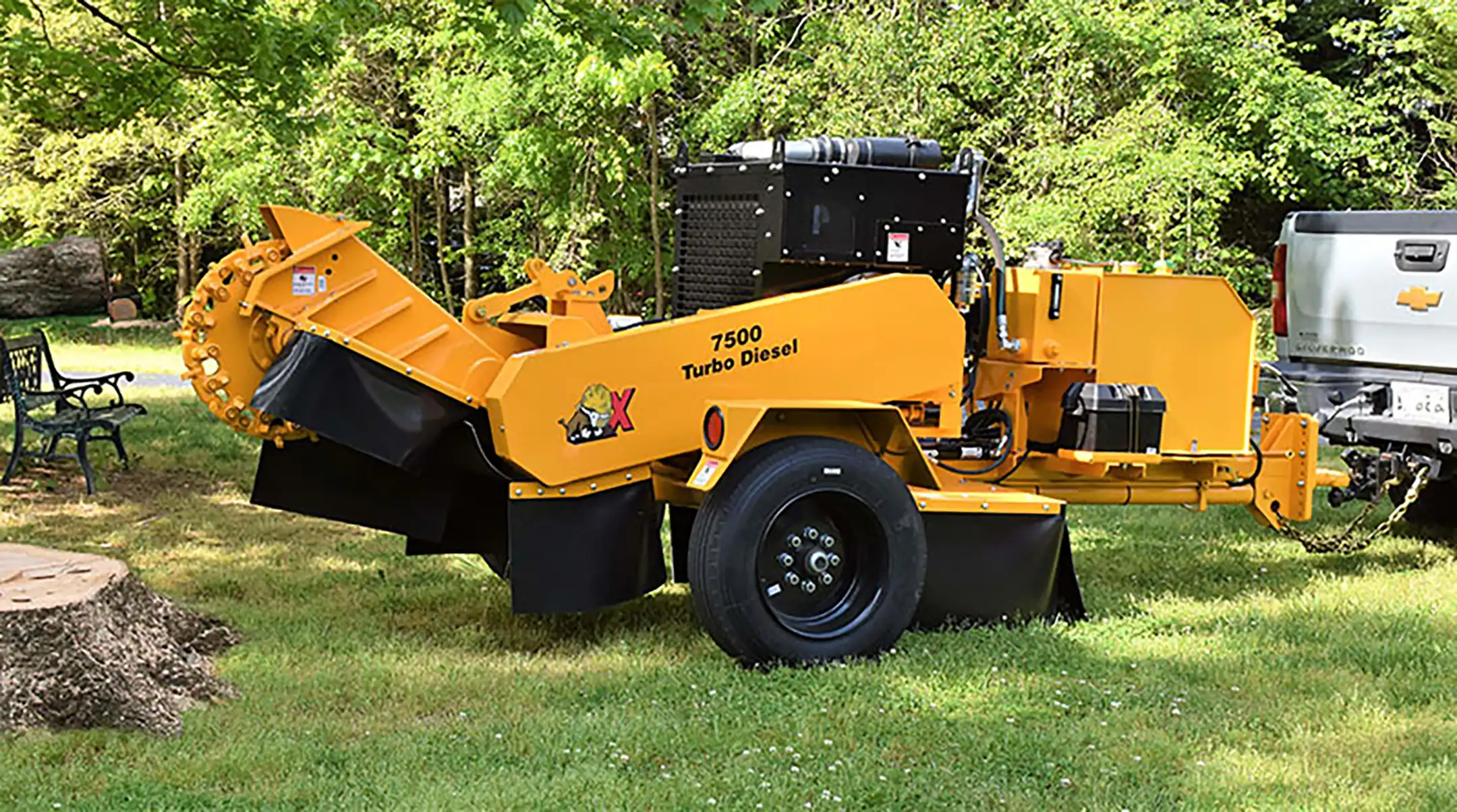

7500 Tow-Behind
The tow behind machine by which all others are judged.
J.P. Carlton manufactures a complete line of track-mounted stump cutters. These machines are the most versatile machines built today. Every machine in our line is manufactured with the same commitment to quality components and craftsmanship.
Carlton Stump Grinders
J.P. Carlton manufactures a complete line of track-mounted stump grinders. These machines are the most versatile machines built today. Every machine is manufactured with the same commitment to quality components and craftsmanship.
Max. Working Height
Max. Lateral Reach
Max. Basket Load Capacity
Total Net Weight
28-inch Diameter Cutter
28-inch Diameter by 1 1/2-inch cutter head makes cutting smooth and powerful.
Five Feet of Tongue Extension
Allows the 7500 to cut the largest stumps without repositioning.
Torsion Flex Suspension
Torsion flex suspension makes all J.P. Carlton tow-behind units ride smoothly.
Four-cylinder Turbo Charged Diesel Engine
Carlton Model 7500HD utilizes a 74HP T4F four-cylinder turbo charged diesel engine.
Specs
Model Specifications
The specs tell the story. Cutting wheel diameter, grinding depth, and a footprint narrow enough to clear a backyard gate are what let Carlton grinders reduce any stump, anywhere on the job.
16"
Cutter Depth Below Ground
48"
Cutter Height Above Ground
80" arc
Cutter Head Swing
1 1/2"
Cutter Wheel Thickness
28"
Cutter Wheel Diameter with Teeth
84"
Machine Width
70"
Machine Height
15'
Machine Length
5,675 lbs
Total Weight
