Lift Carrier
Ford F650
Heavy-Duty Ford Chassis for optimal comfort, performance, and versatility.
Work from the rear of the truck or self-unload your CMC lift and drive through 36" gates in seconds.

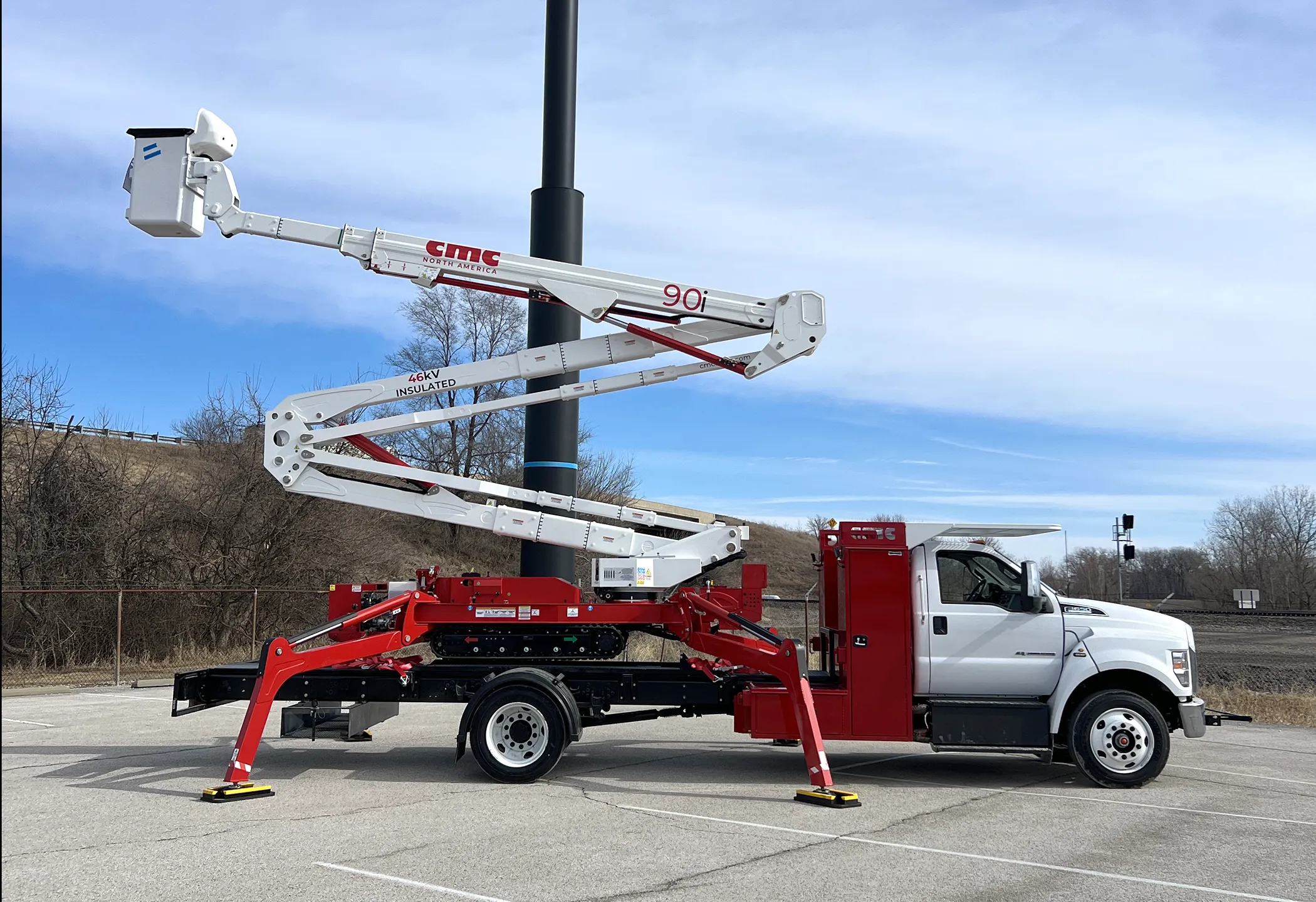

Ford F650 Lift Carrier
The Ford F650 Lift Carrier is engineered to transport all Arbor Pro® series, Contractor Pro Heavy Duty models, and Utility Pro series lifts. It carries the aerial lift securely and allows it to be operated directly from the rear of the truck—no attachment required.
Max. Working Height
Max. Lateral Reach
Max. Basket Load Capacity
Total Net Weight

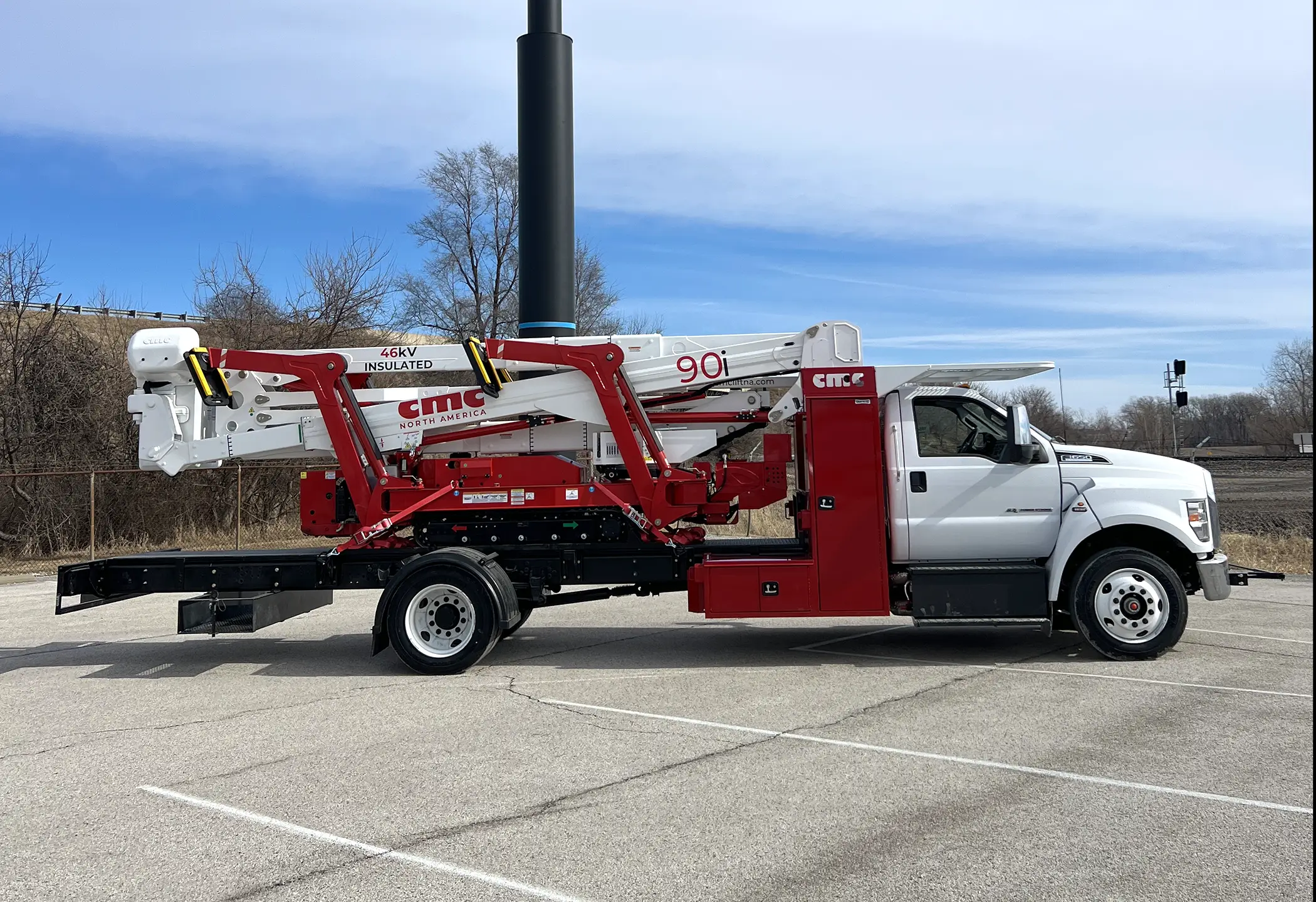

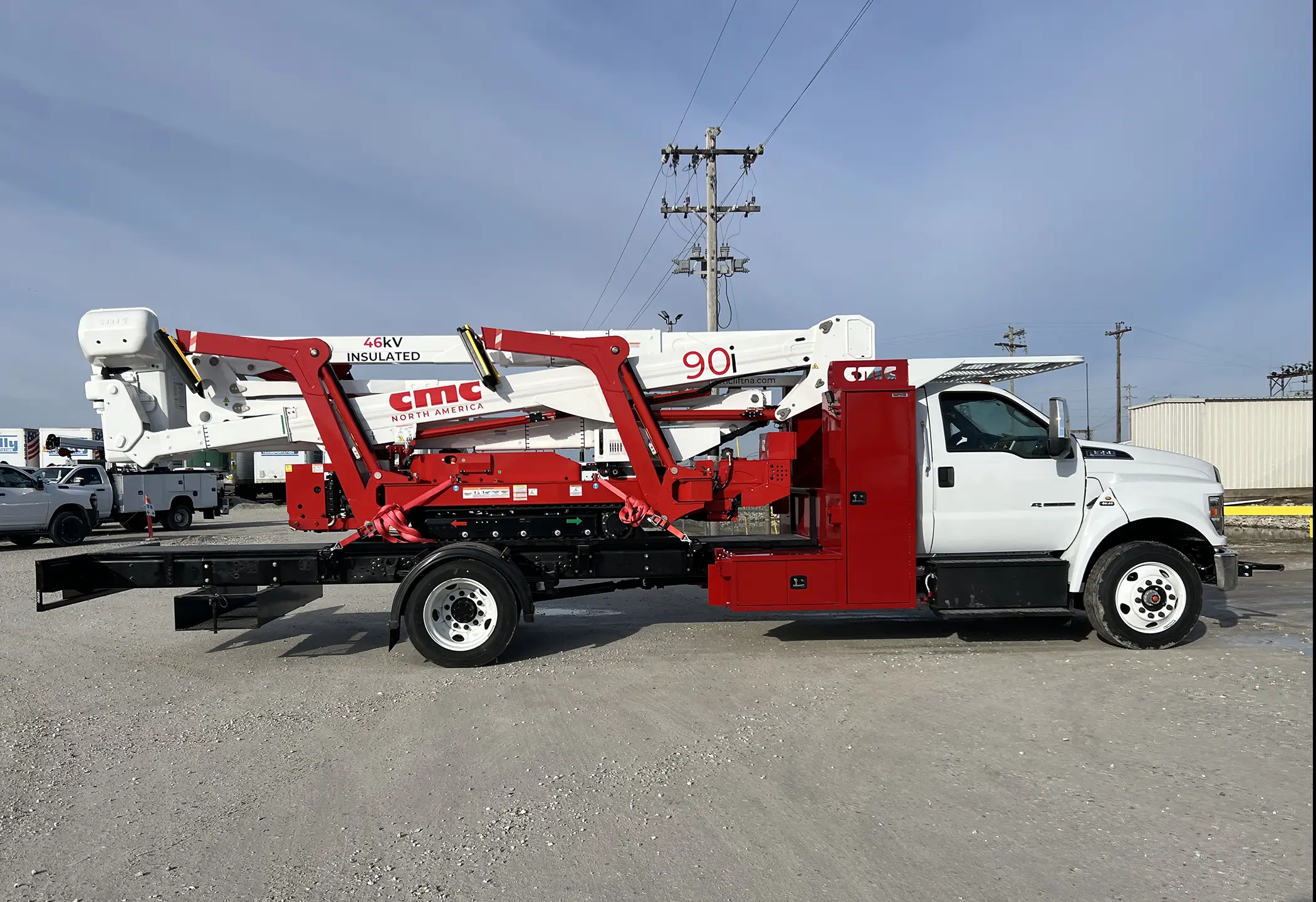

Ultra-low Carry Lift Deck
The ultra-low carry deck sits compact on the chassis, allowing to self-load and unload your CMC lift using the height of the automatic leveling outriggers.
Narrow Aluminum Diamond Plate Deck
The narrow aluminum diamond plate deck keeps the carrier compact for tight streets and driveways while giving you sure footing underfoot.
Heavy Duty Aluminum Toolbox
The heavy-duty aluminum toolbox keeps your rigging, saws, and gear secured and organized, so everything you need travels with the lift.
Traffic Cone Holder
The traffic cone holder keeps your cones stowed and within reach, so you set up a safe work zone fast when you reach the site.
Partial Cab Guard
The partial cab guard shields the truck cab from shifting loads and debris, protecting the driver and the vehicle in transit.
Ground Mat Carrier
The ground mat carrier stores your mats on the outside of the deck, so you protect lawns and surfaces without eating into deck space.

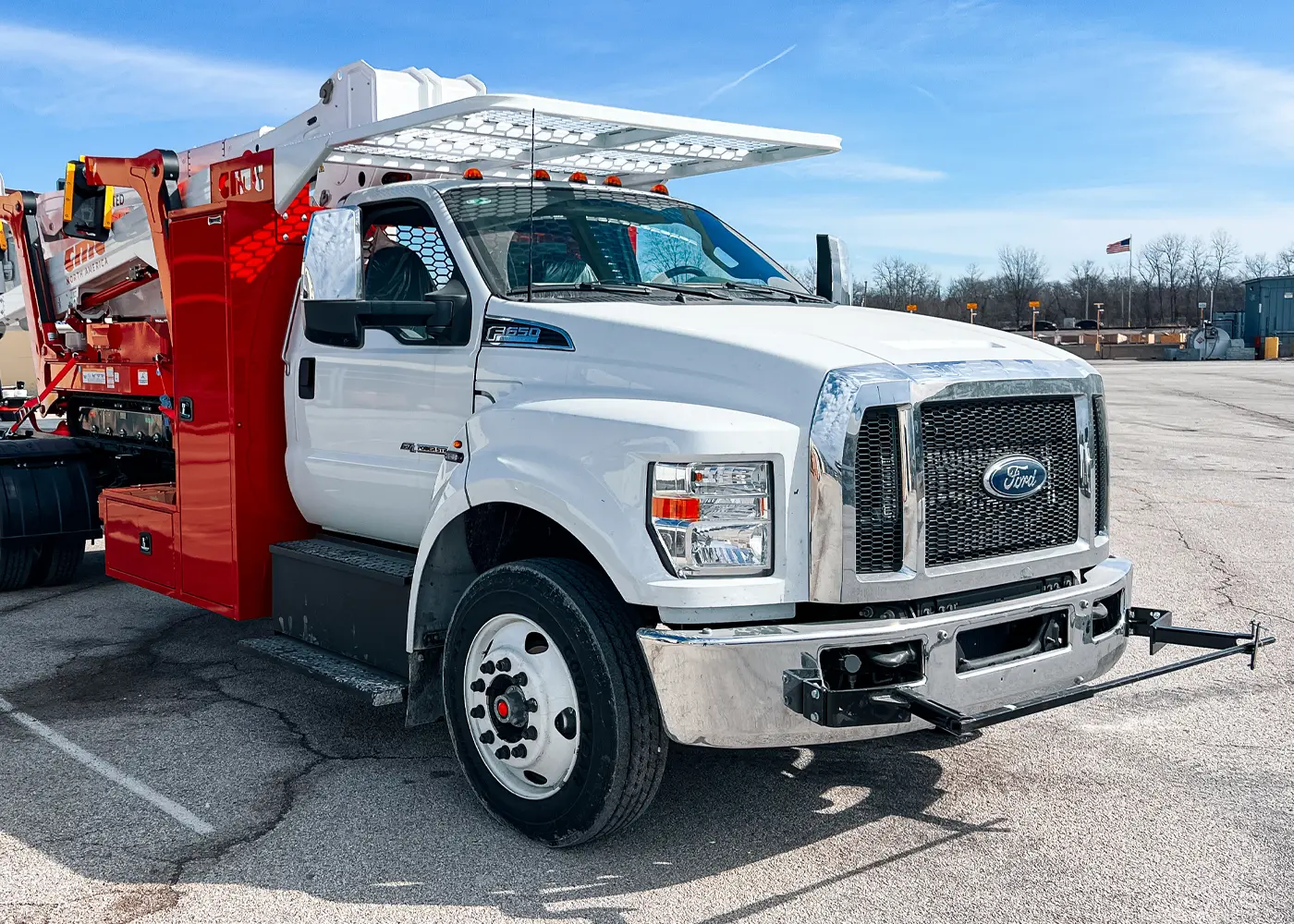

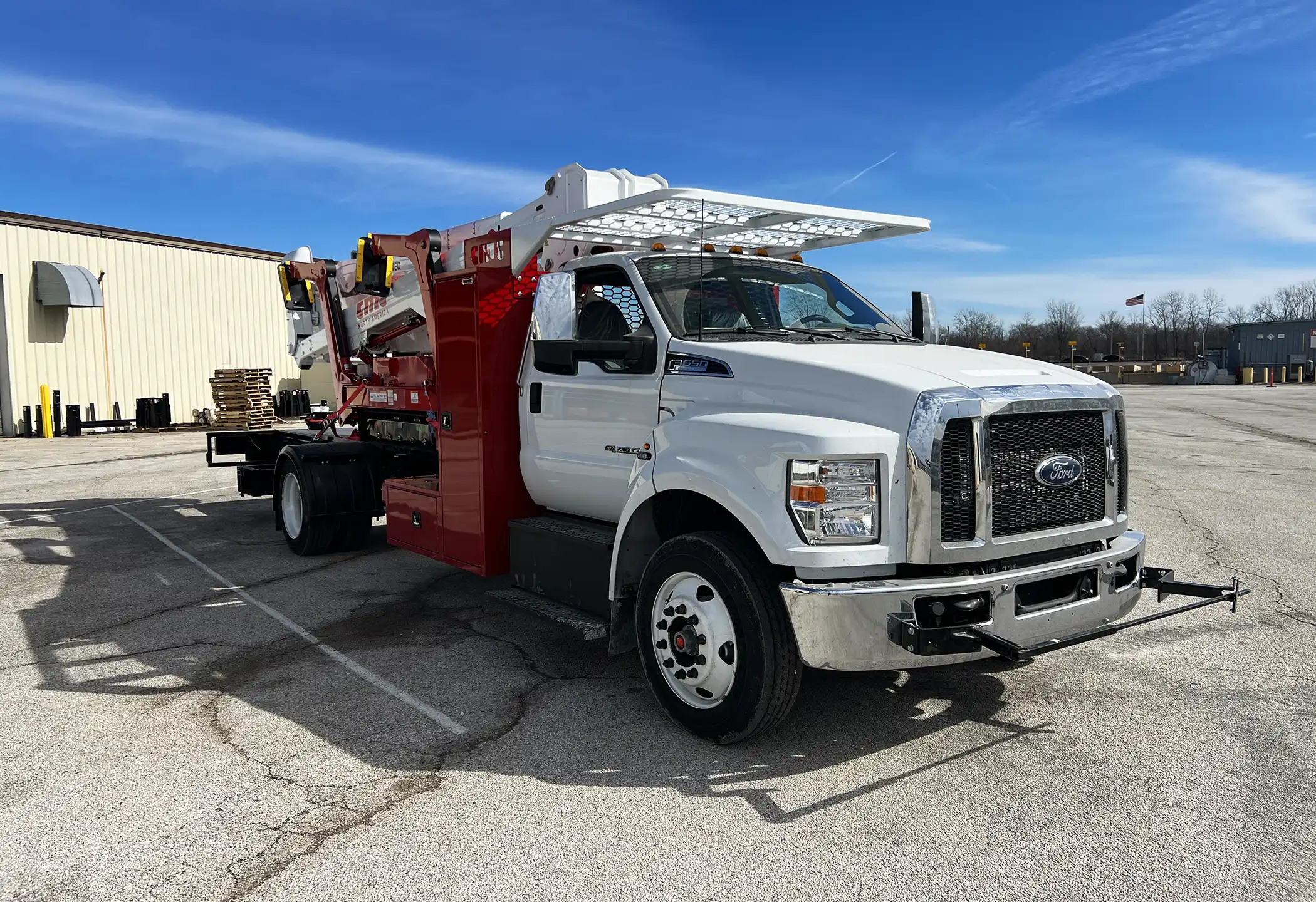

Ford F650 Truck
The Ford F650 chassis gives you a proven, serviceable truck platform with the payload and road manners to haul your lift anywhere.
Under CDL Lift Carrier
The under-CDL build keeps the carrier within non-CDL weight limits, so more of your operators can legally drive it without a commercial license.
Specs
Model Specifications
Easy loading is made possible by the low deck height and obstruction-free design, allowing outriggers to deploy and raise or lower the lift directly from the truck deck. By eliminating the need for a trailer, the Lift Carrier simplifies access to tight or hard-to-reach job sites.
6' 11"
Maximum Frame Height
8'
Maximum Frame Width
21' 2"
Maximum Frame Length
34' 4"
Overall Truck Length
8' 4"
Overall Truck Height
8' 3"
Overall Truck Width
21'
Diamond Plate Deck Length
28' 5"
Cab Guard to Rear Light Bar
45"
Maximum Deck Width
10' 2"
Maximum Height with Lift
281"
Wheelbase
23,347 lbs
Maximum Combined Weight
Special features
Under-CDL Package
The F650 carrier is built to stay within non-CDL weight limits while carrying heavier loads than a lighter chassis, so you get more payload capacity without pushing your crew into commercial license territory. More of your operators can legally drive it, and you still have the muscle to haul your lift and a full load of gear.
Special features 2
Comfortable & Highway Ready Cab
The roomy conventional cab and longer wheelbase deliver a smooth, planted ride at highway speed, so the miles between distant job sites stay easy on the driver. When your work spreads across a wider service area and the day starts with a long haul, this is the cab that keeps your operator fresh when they arrive.
Special features 3

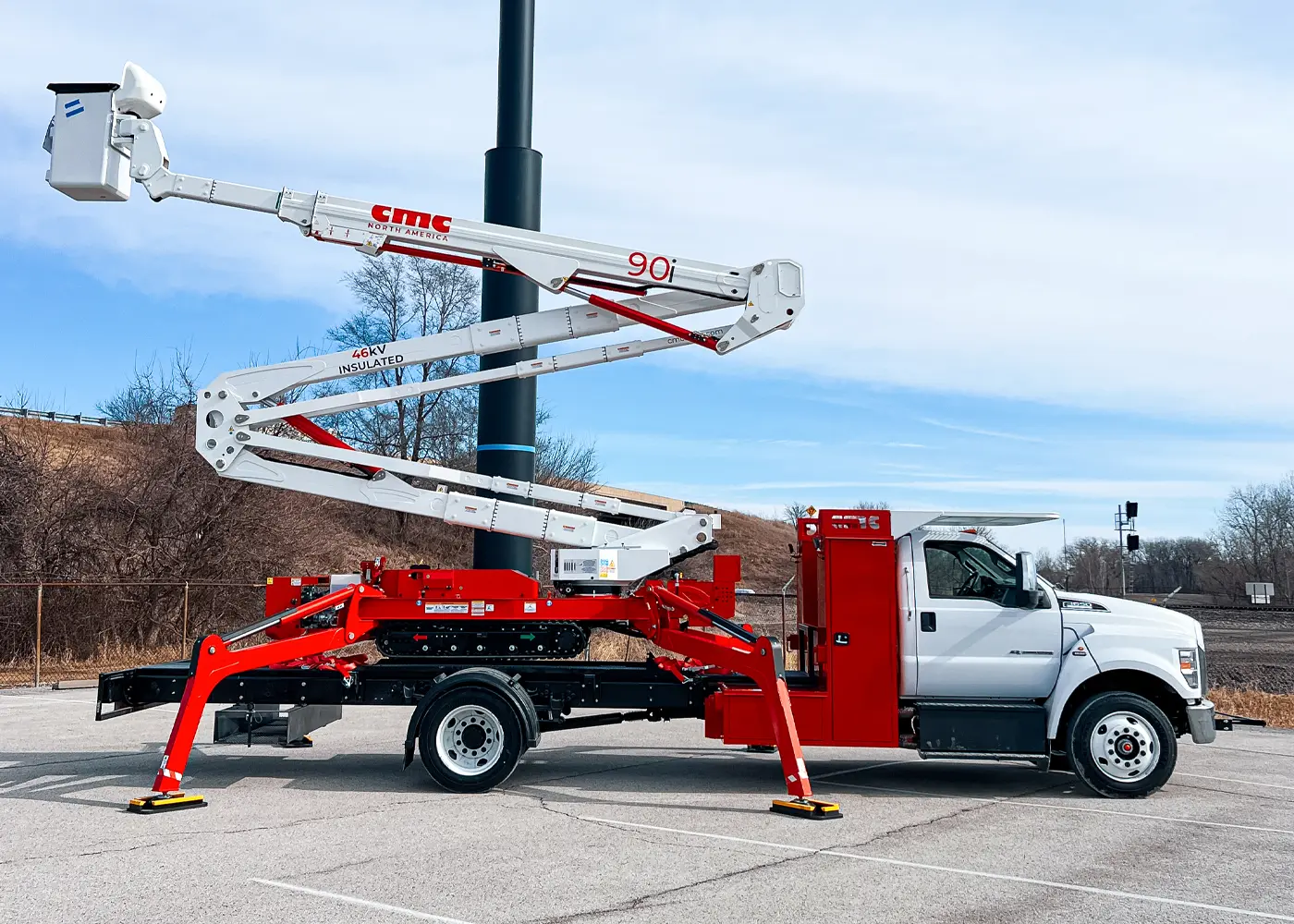

Versatile Rear-Mount or Self-Propelled
Run the lift straight off the rear of the deck as a rear-mount aerial for quick roadside work, or unload it and drive the tracks into backyards and tight spots the truck can't reach. One rig covers curbside jobs and hard-to-access sites both, so you are never limited by where you can park.
Image Description
Image Description
Image Description
Image Description
