Carlton Chipper
1712
Powerful & Portable. Reliability that trimming crews can count everyday.
J.P. Carlton builds a full line of 7-21 inch capacity wood chippers. Unique design elements make them among the industry's most desired. Every Carlton chipper reflects superior engineering and top-quality construction.
Carlton Wood Chippers
J.P. Carlton manufactures a complete line of 7-, 9-, 12-, 15-, 18-, and 21-inch capacity wood chippers. These chippers feature many unique design elements that make them the most desired chippers in the industry. Each Carlton wood chipper is a result of superior design and the highest quality construction.
Max. Working Height
Max. Lateral Reach
Max. Basket Load Capacity
Total Net Weight
Swivel Discharge
Allows the operator to fill the truck corner to corner, or easily direct the chips to a precise place on the lot.

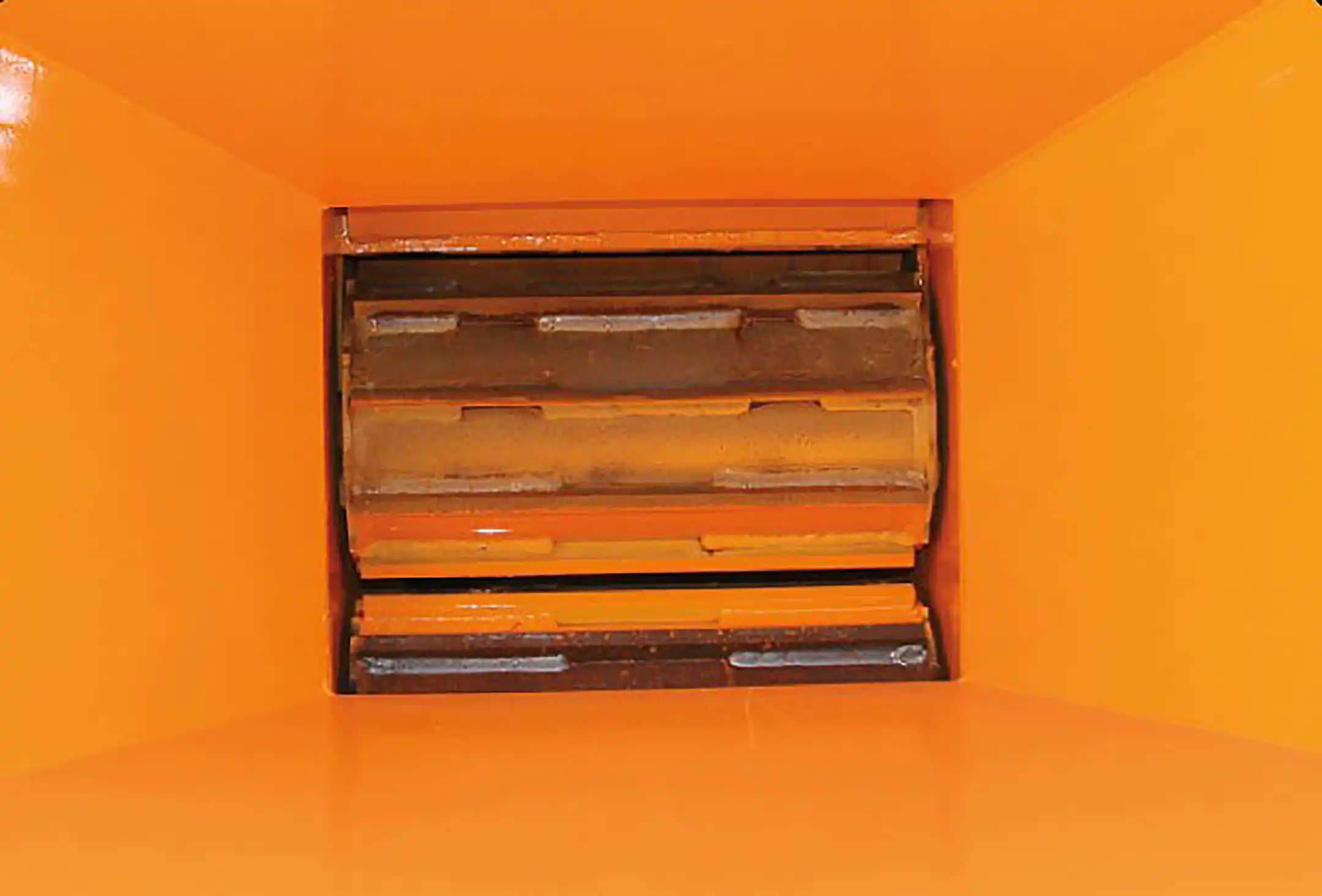

12″ x 17″ Throat Opening
12″ x 17″ Throat Opening, easily handles the most difficult materials.
48″ Wide Feed Chute
Takes the big tops, requires less trimming by the crew!
Live Hydraulics
Run directly off the engine allowing the operator to engage all hydraulic functions without the disk being engaged.
Arborist Package Kubota Diesel
Designed for use on a chipper, includes: radiator debris screen, live hydraulic pump hook up, locking side panels, air cleaner mounted to the rear of the engine
Specs
Model Specifications
The specs tell the story. Chipping capacity, feed system, and drum power are what let Carlton chippers turn a pile of brush into clean mulch without slowing your crew down.
5,500 lbs
Weight
15' 6"
Length
93"
Height
12" x17"
Throat Opening
29" x 48"
Infeed Hopper Opening
38 1/2"
Chipper Disk Diameter
48"
Feed Chute
4.4 GPM
Flow Per Motor
100 FPM
Feed Rate
10 1/2" x 16 1/4"
Two Feed Rollers
32 in cu
Two Feed Motors
Image Description
Image Description
Image Description
