Carlton Chipper
2015
Powerful & Portable. Reliability that trimming crews can count everyday.
The Carlton 2015 Wood Chipper drum utilizes J.P. Carlton’s exclusive Air Vortex Control to channel and accelerate discharge air, giving the 2015 high discharge velocities and great chip throwing power.
Carlton 2015 Wood Chipper

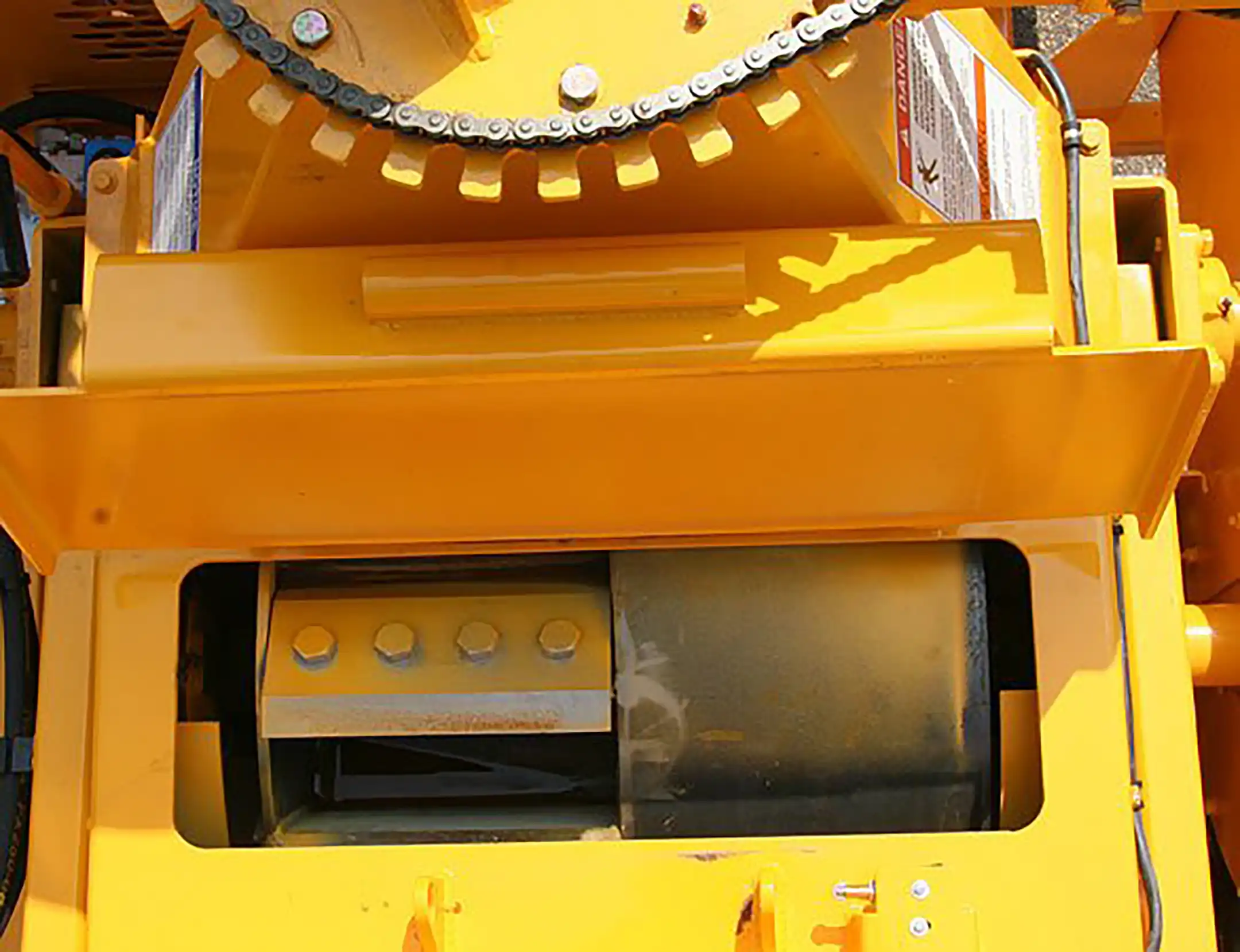

Aggressive feeding is handled by the exclusive long arm pivot top feed roller. This long arm pivot design keeps the top feed roller close to the drum with a lift path that closely matches the contour of the drum – minimizing the dead space and “hang ups.” The dual feed wheels are powered by three hydraulic drive motors working on two independent circuits to further maximize pulling power.
Cutting Style
Drum
Drum Size
15"
Infeed
64"
Engine
140 HP John Deere T4F Turbo Charged Diesel

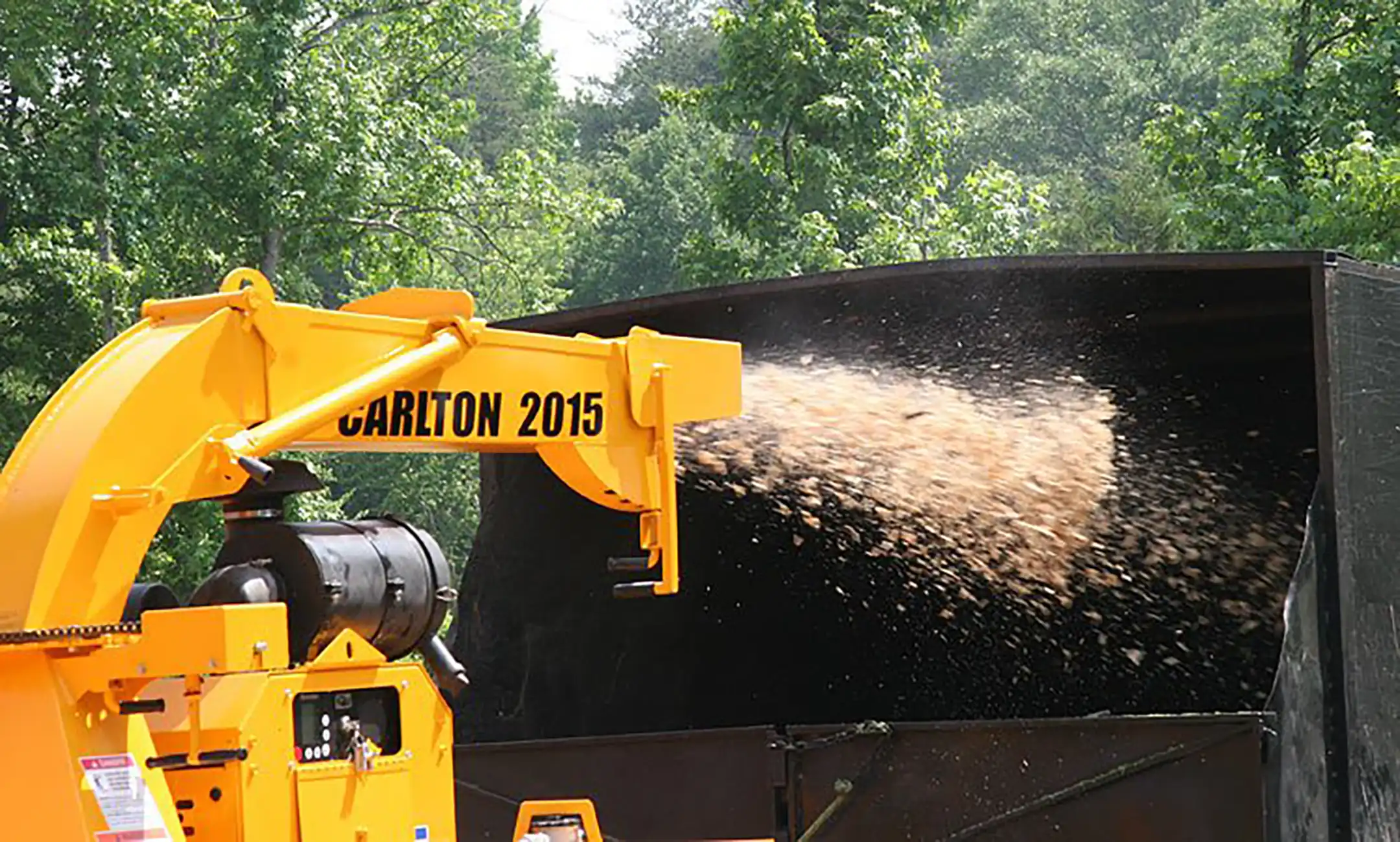

Swivel Discharge
Quickly and easily allows the operator to fill the largest capacity chip trucks corner to corner, or direct the chips to a precise place on the lot.
Massive 20″ x 15″ Throat Opening
Largest in its class and easily handles the largest tops.
Dual Lift and Crush Cylinders
Provides crushing power when necessary and allow easy access to the anvil. Allows for a full 360-º chute rotation.
Height Adjustable Discharge Chute
Allows the operator to quickly adjust the discharge perfectly for any truck.
Three Hydraulic Feed Motors
Three hydraulic feed motors provide the most pulling power available.
Specs
Model Specifications
The specs tell the story. Chipping capacity, feed system, and drum power are what let Carlton chippers turn a pile of brush into clean mulch without slowing your crew down.
9,900 lbs
Weight
17' 7"
Length
8' 4"
Height
15" x 20"
Throat Opening
24"
Chipper Drum Diameter
27"
Chipper Disk Width with Fans
110 FPM
Feed Rate
15 3/4"
Top Feed Rollers
10 1/2"
Bottom Feed Rollers
46 in cu
Top Feed Motor
32 in cu
Bottom Two Feed Motors
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Models
Other models in the same series
