Carlton Chipper
2018HD
Powerful & Portable. Reliability that trimming crews can count everyday.
The Carlton 2018HD Wood Chipper is built to stand the day in day out duty of clearing or producing fuel chips while still being operator friendly.
Carlton 2018HD Wood Chipper

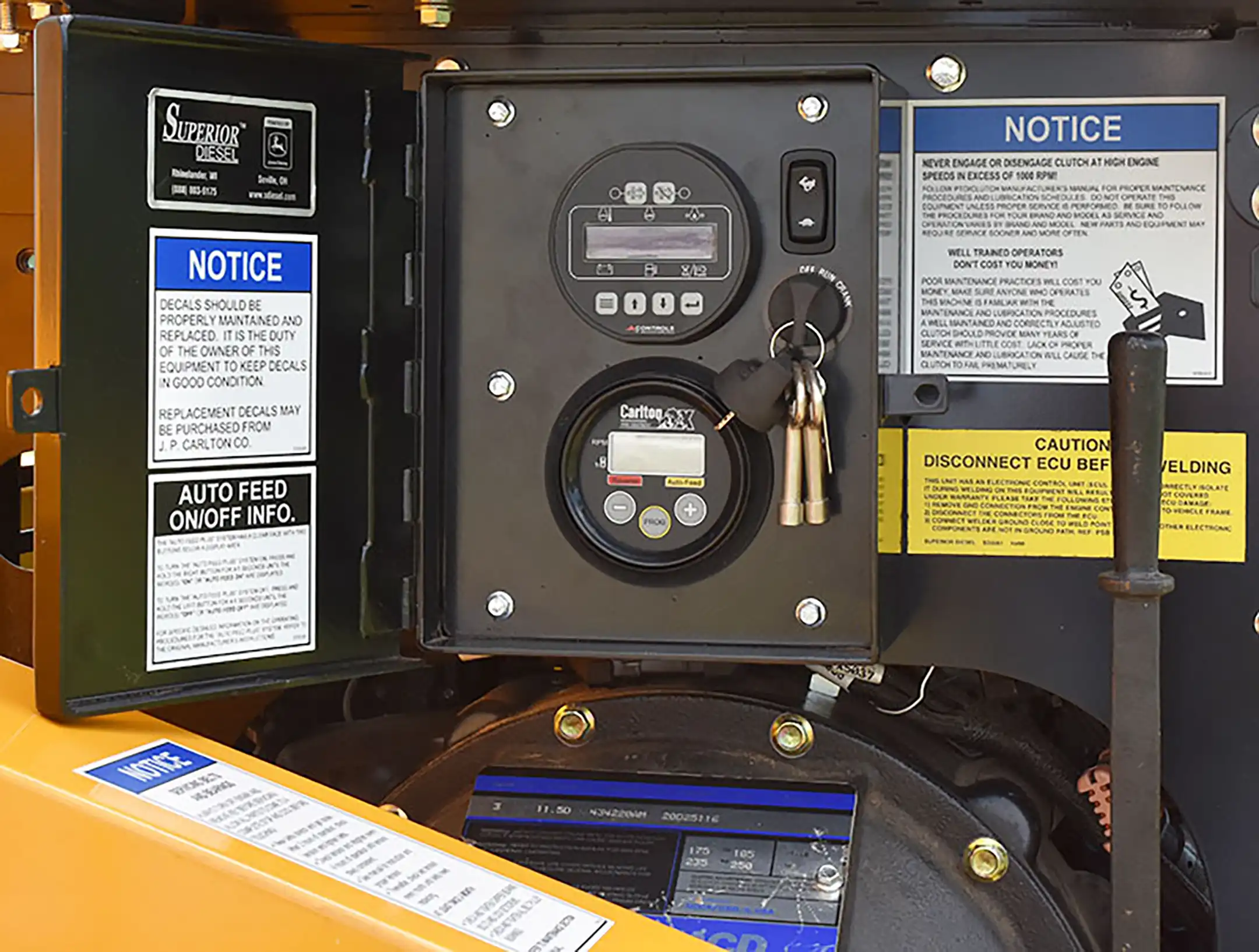

The J.P. Carlton 2018HD Wood Chipper is designed and built to stand up in the toughest applications, able to withstand all the punishment you and your crew can dish out. From its high capacity axles and tires, to its heavy-duty frame, back to the rigid 3/8″ feed table, the 2018HD is built right. J.P. Carlton understands the environment the 2018HD must survive in everyday. Thoughtful design elements like concealed wiring, integrated single manifold hydraulics with electronic control, dual lift cylinders, full – length radiator protection guards keep the 2018HD operating at peak performance year after year.
Cutting Style
Disk
Disk Size
18"
Infeed
64"
Engine
173 HP John Deere T4F Turbo Charged Diesel
Hydraulic Swivel Discharge
Quickly and easily allows the operator to fill the largest capacity chip trucks corner to corner, or direct the chips to a precise place on the lot.

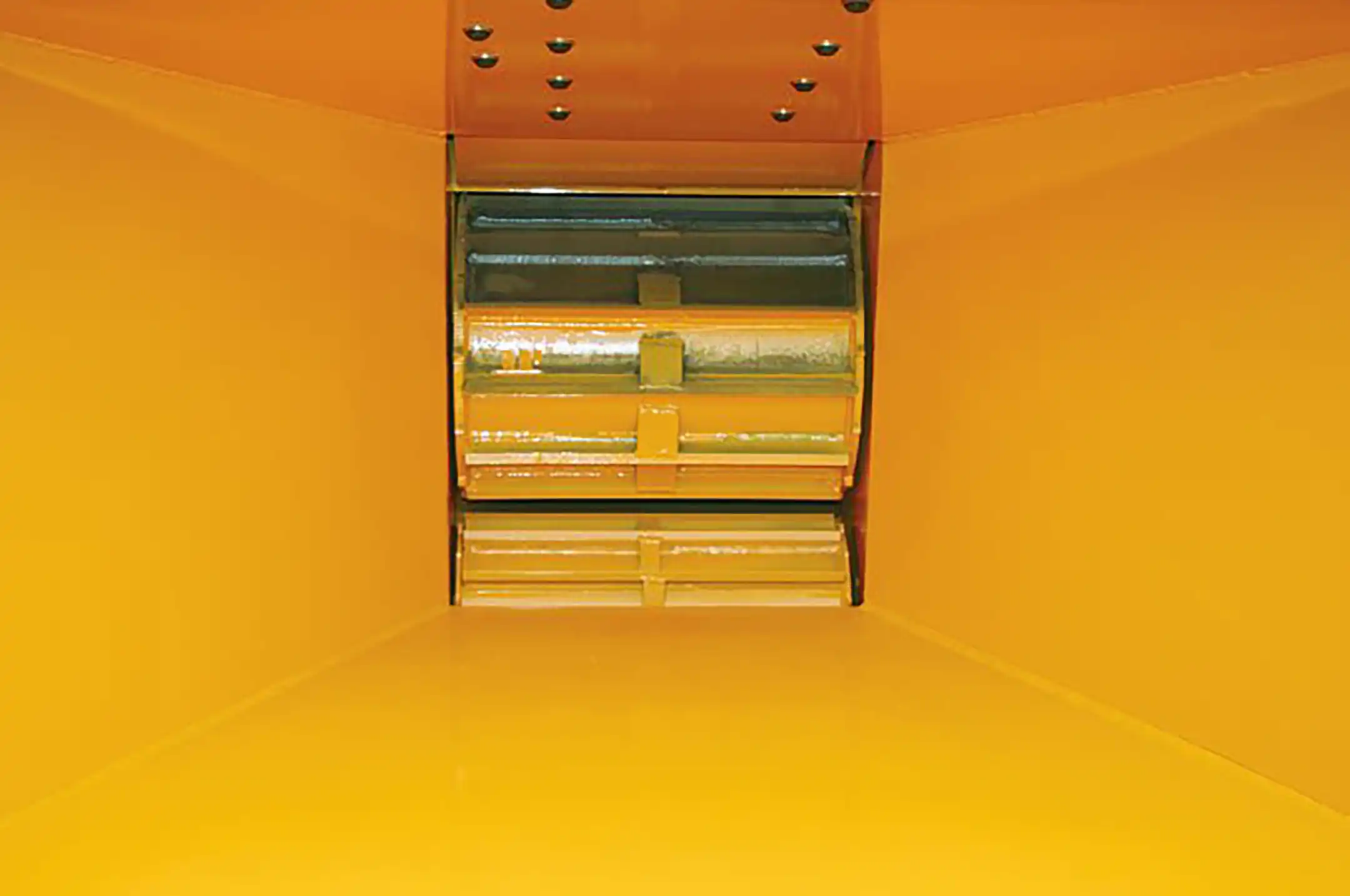

20″ x 18″ Throat Opening
Massive 20″ x 18″ Throat Opening is the largest in its class and easily handles the most difficult materials.
6000 Pound Capacity Tires
Four 235/75R17.5 6000 Pound Capacity Tires easily carry the load.
64″ Wide Infeed Chute
64″ Wide Infeed Chute takes the big tops and requires less trimming by the crew!

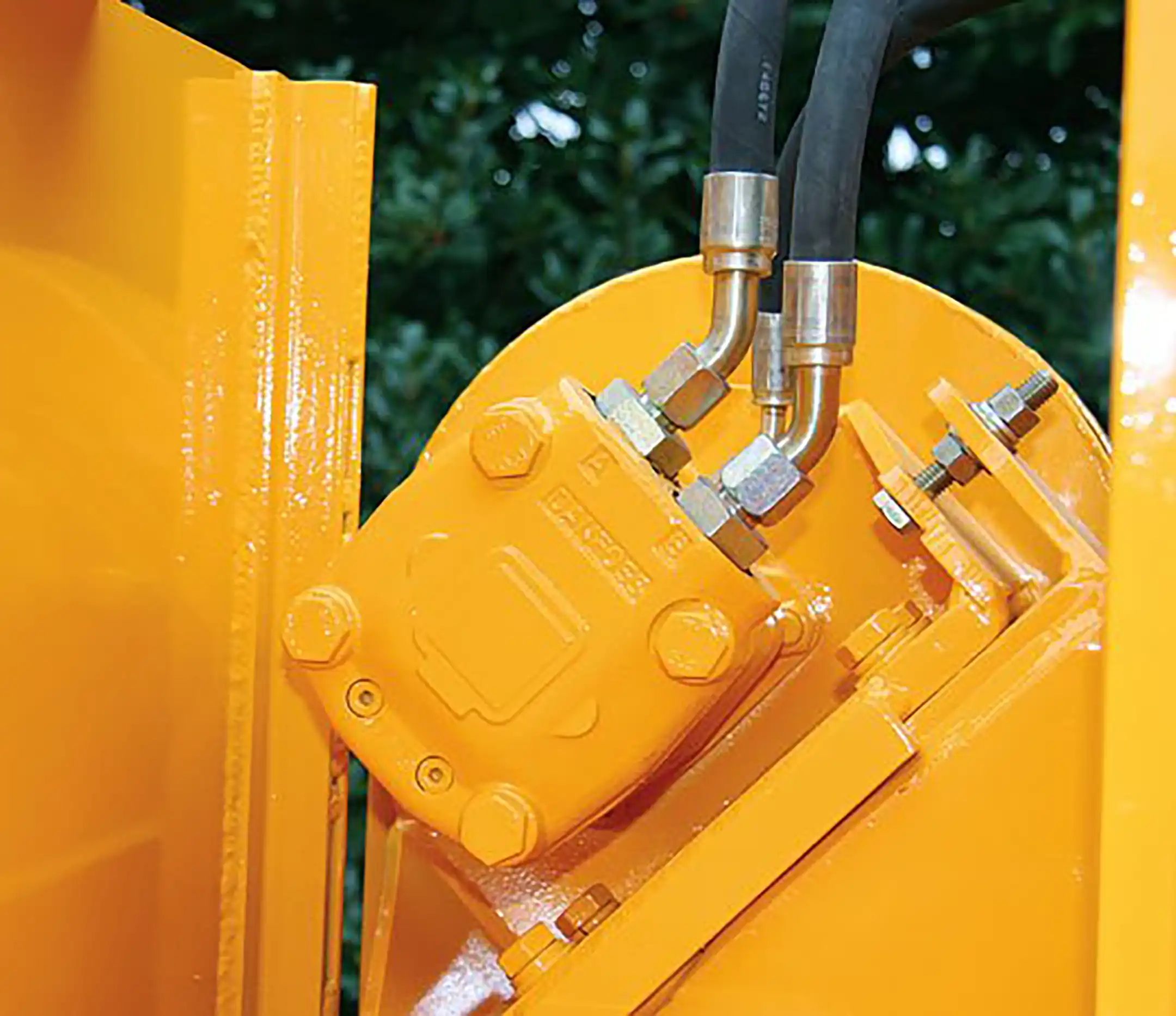

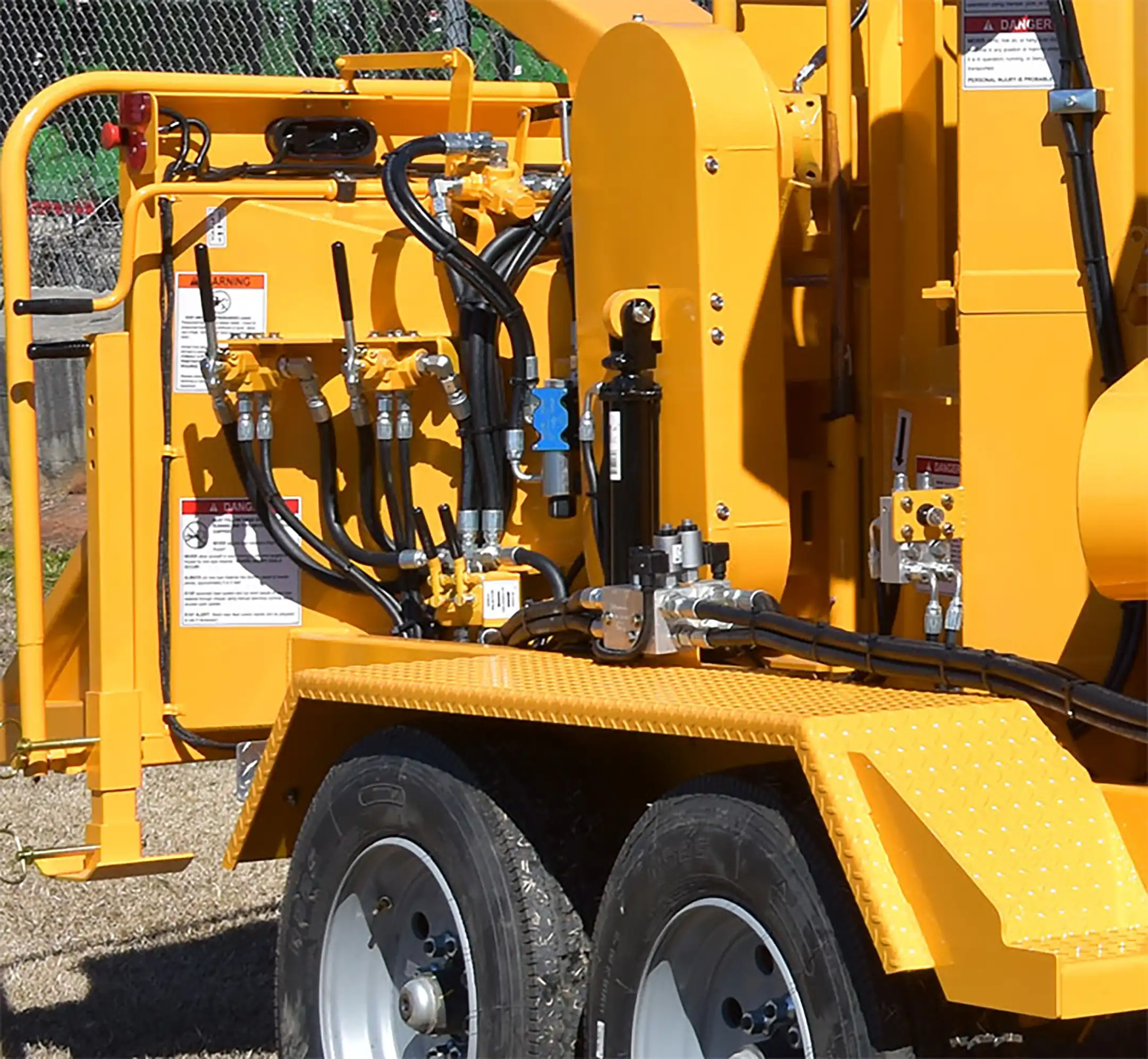

Tandem Hydraulic System
Provides power independently to each feed wheel. This system ensures the most power at all times to the feed system.
Hydraulic Planetary Winch
Hydraulic Planetary Winch with 2 speeds and freewheel provides 10,000 pounds of pulling power
Specs
Model Specifications
The specs tell the story. Chipping capacity, feed system, and drum power are what let Carlton chippers turn a pile of brush into clean mulch without slowing your crew down.
9,900 lbs
Weight
21' 6"
Length
9' 6"
Height
7' 4"
Width
18 1/2" x 20 1/2"
Throat Opening

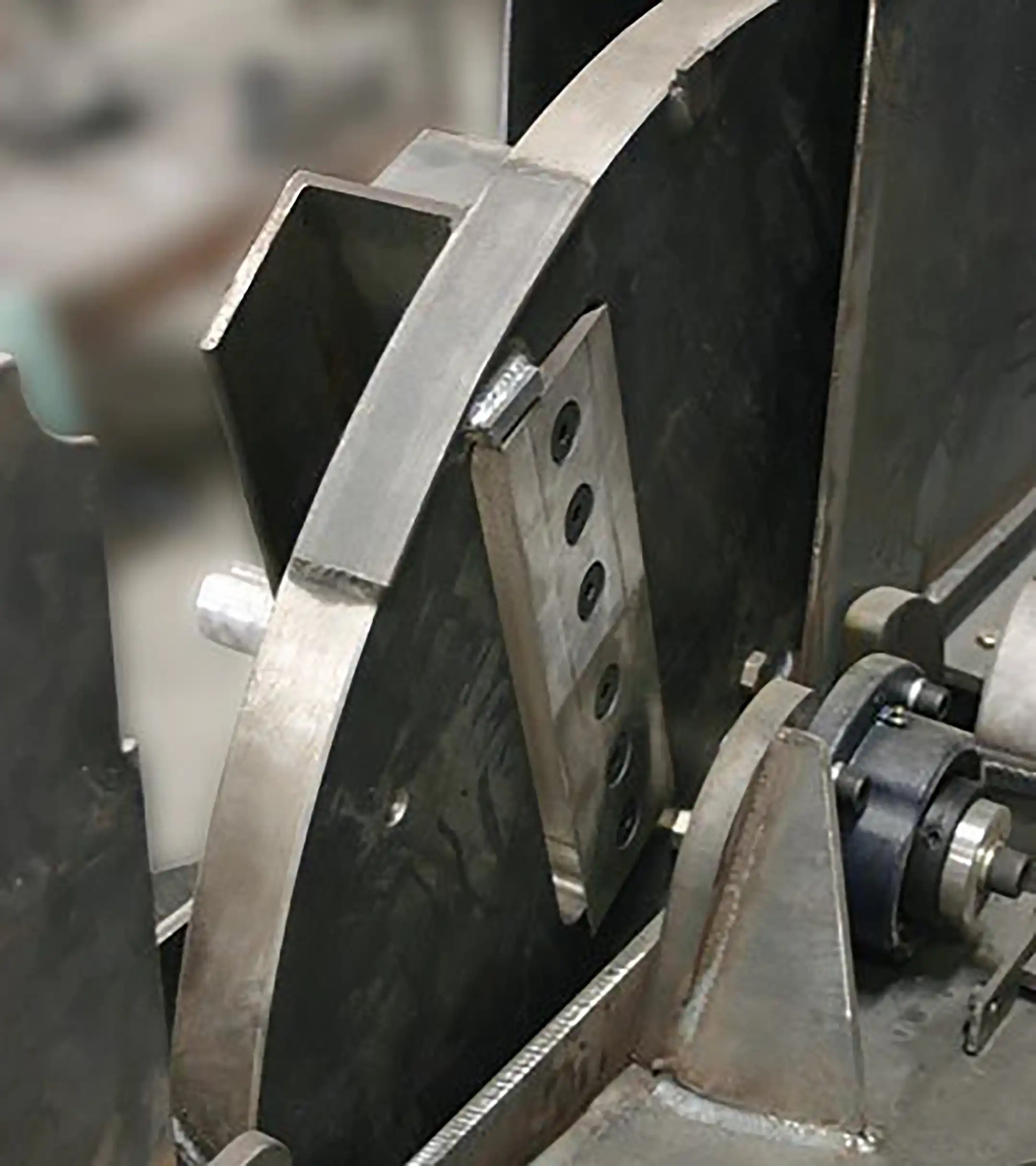

6
Chipper Disk Knives
27"
Chipper Disk Width with Fans
55"
Chipper Disk Diameter
49 Cubic Inch Displacement
Feed Motor
100' per minute
Feed Rate
