Carlton Stump Grinder
5014 NTX
Maximum cutting power in narrow and hard to reach areas.

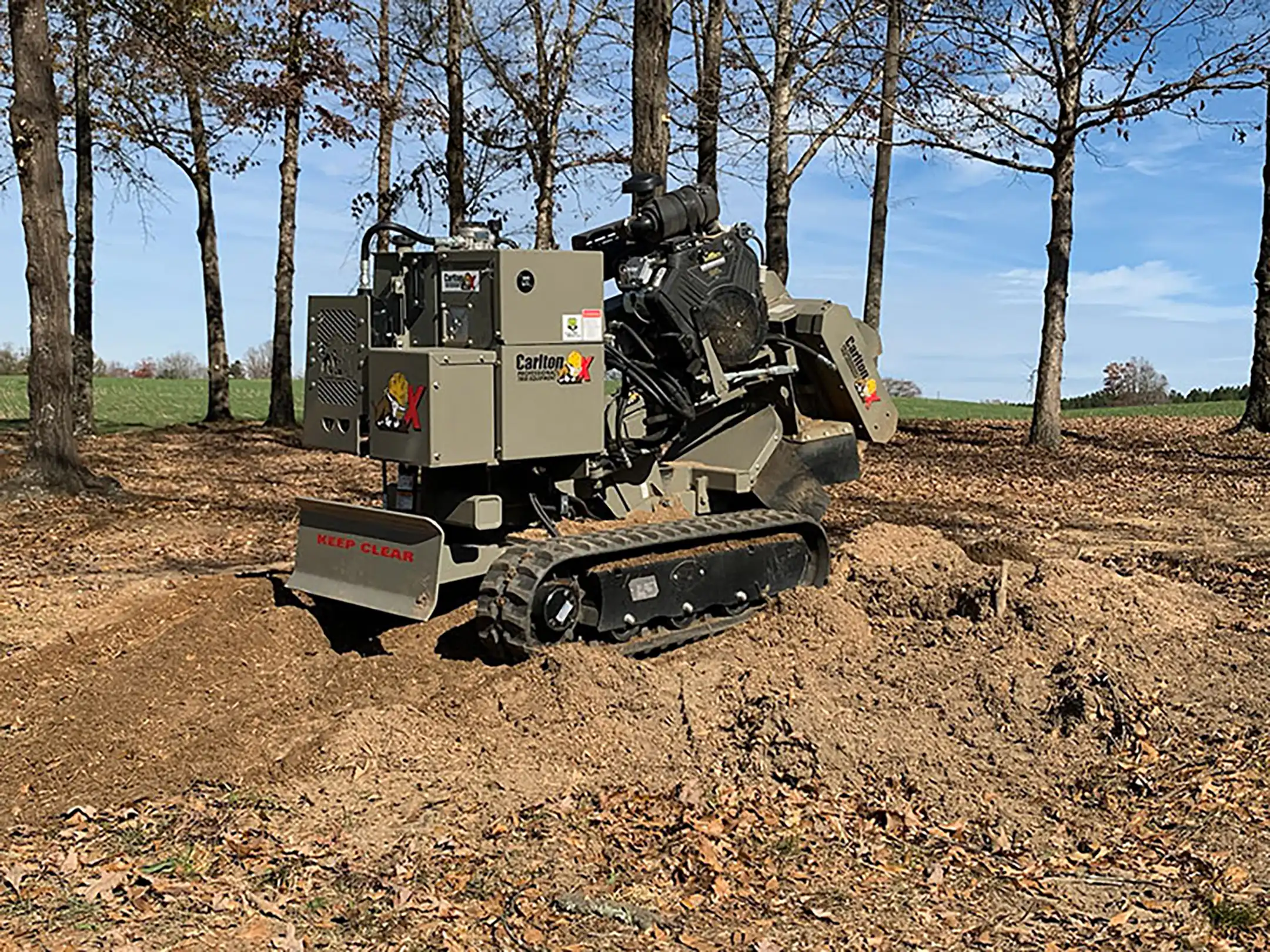

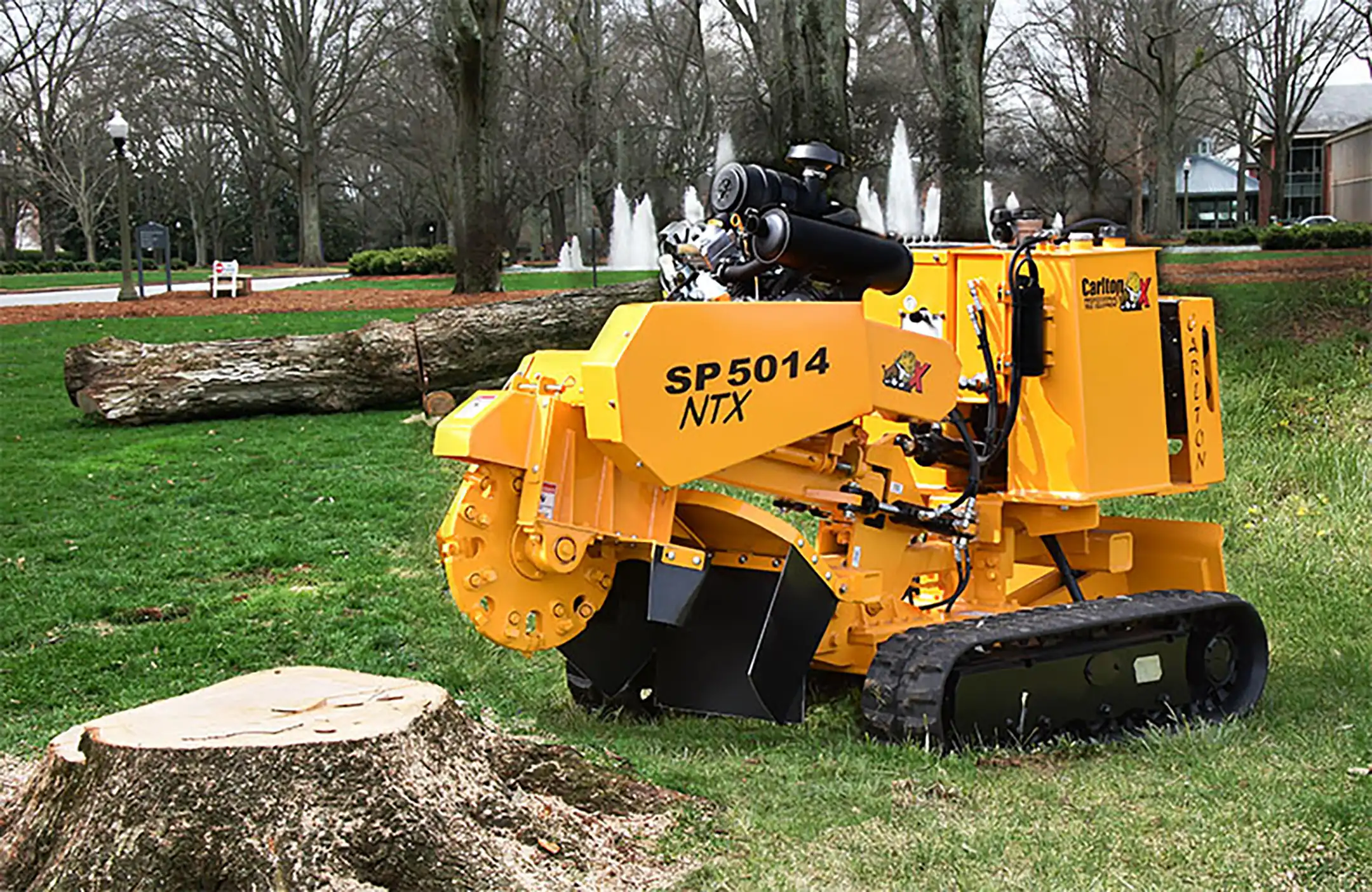

The Carlton SP5014 NTX stump grinder couples the industry’s best hydraulic controlled self-propelled grinder with the versatility of a rubber track undercarriage.
Carlton 5014 NTX Stump Grinder
The Carlton SP5014 NTX stump grinder uses a rubber track system that incorporates dumbbell style rollers and hydraulic tensioning to keep the track at optimal efficiency for running and tracking characteristics. This track system minimizes ground pressure and disturbance while providing a stable grinding platform and go anywhere traction.
Cutting Depth Below Ground
12"
Cutting Height Above Ground
25"
Cutter Head Swing
43"
Cutter Wheel Diameter
21"

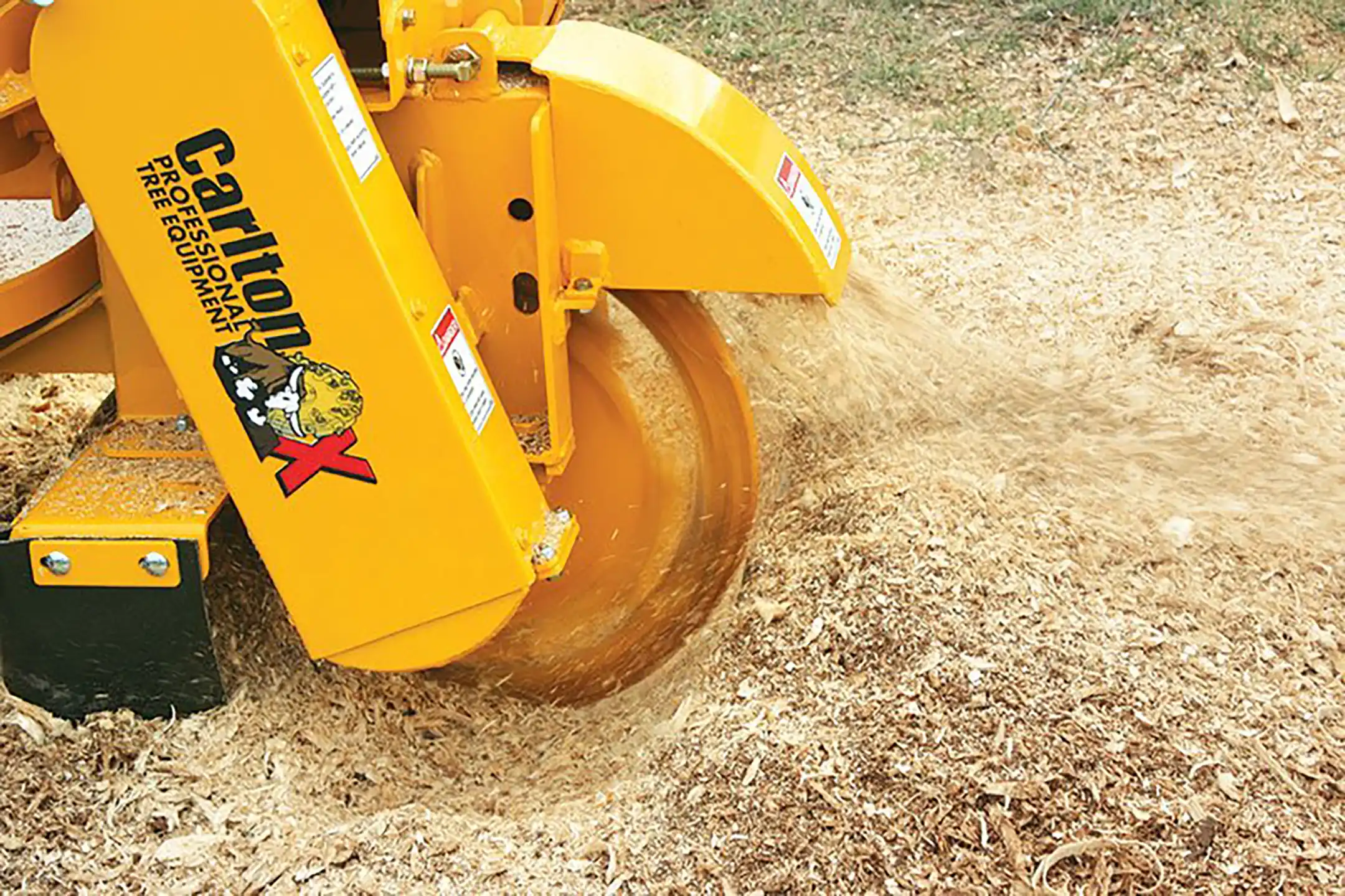

Large Cutter Wheel
21-inch diameter & 1 1/4-inch thick, provides maximum cutting power and flywheel momentum.
Proprietary Dual Motor Ground Drive
Eliminates troublesome chains, axles and axle bearings
Proprietary Rubber Track Undercarriage
Provides positive climbing power over the roughest terrain.
Hydraulic Tensioned Track
Keeps the tracks on the rollers and allows for easy adjustment.
Specs
Model Specifications
The specs tell the story. Cutting wheel diameter, grinding depth, and a footprint narrow enough to clear a backyard gate are what let Carlton grinders reduce any stump, anywhere on the job.
12"
Cutter Depth Below Ground
25"
Cutter Height Above Ground
43"
Cutter Head Swing
1 1/4"
Cutter Wheel Thickness
36
Number of Teeth on Cutter Wheel
21"
Cutter Wheel Diameter with Teeth
29.5"
Machine Width
63"
Machine Height
96"
Machine Length
2,700 lbs
Total Weight
Image Description
Image Description
Image Description
