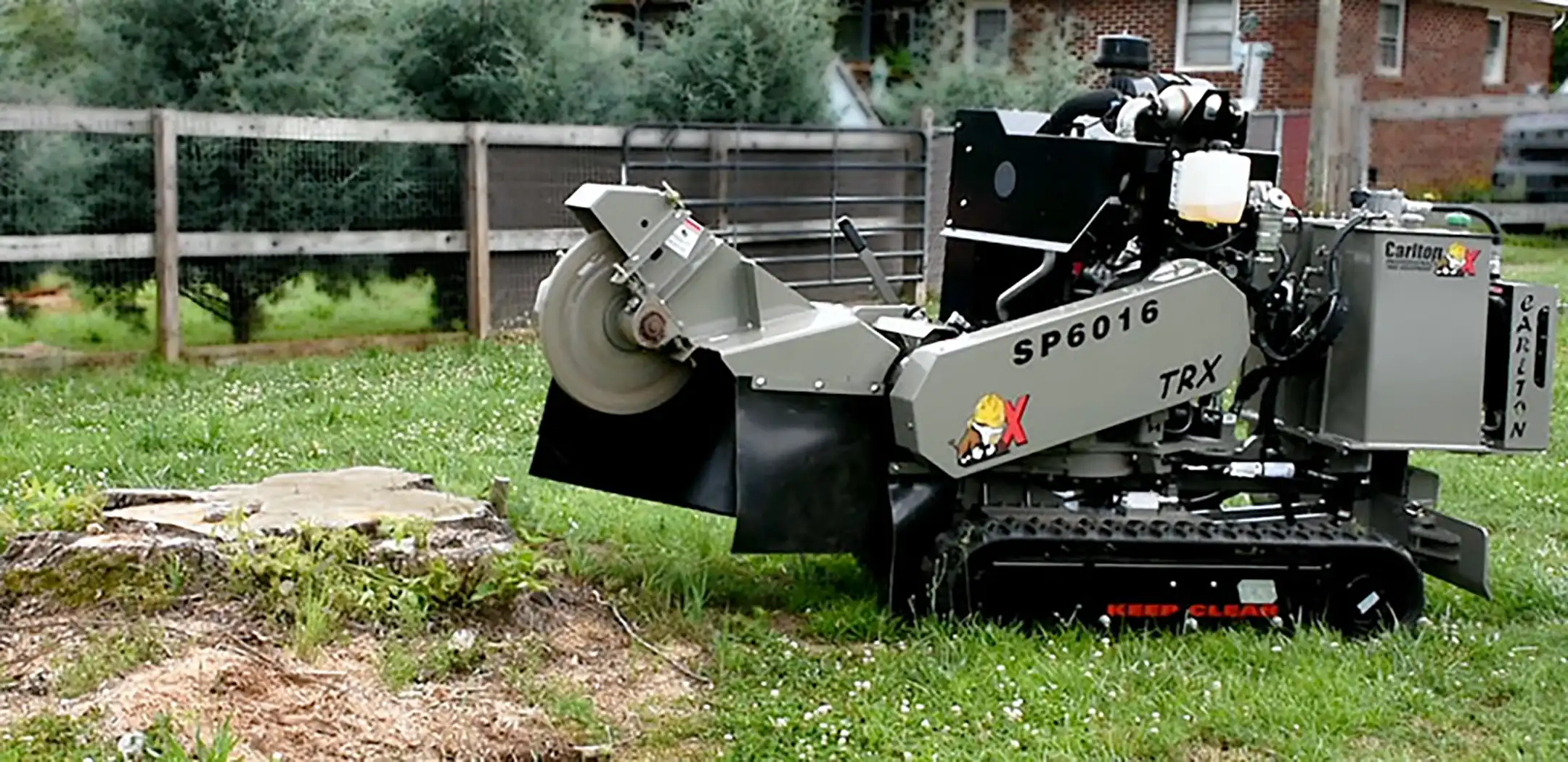

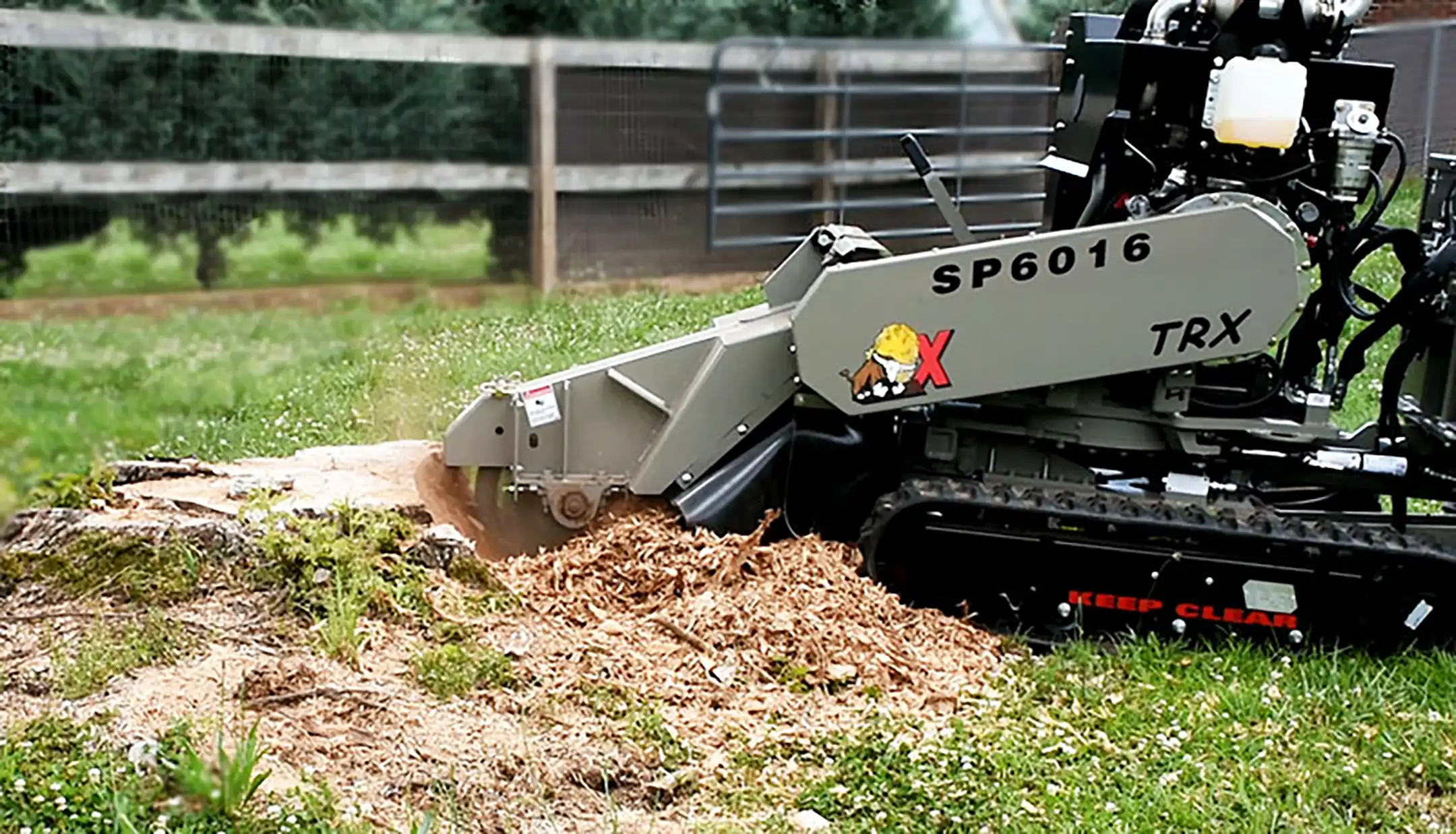

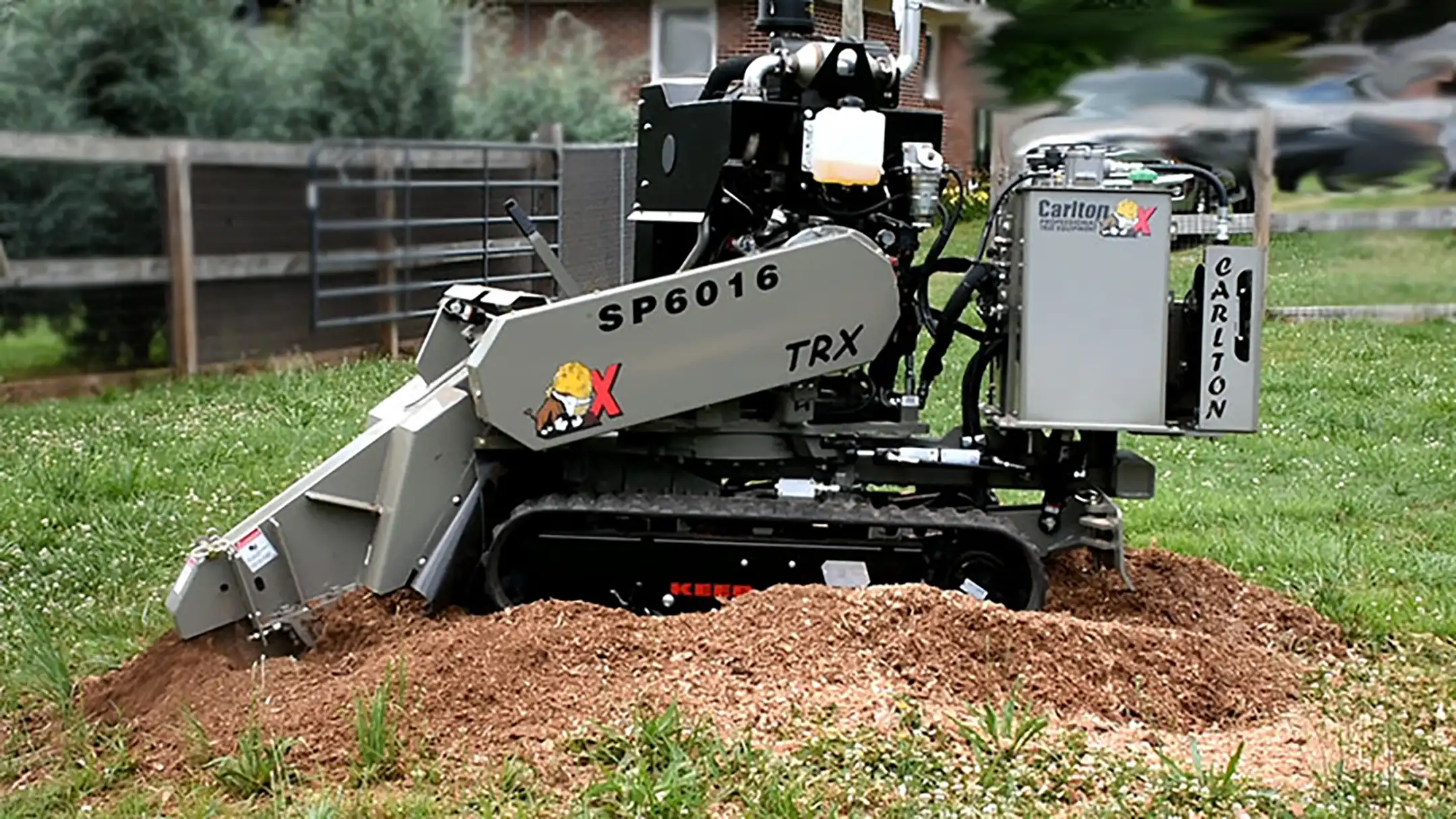

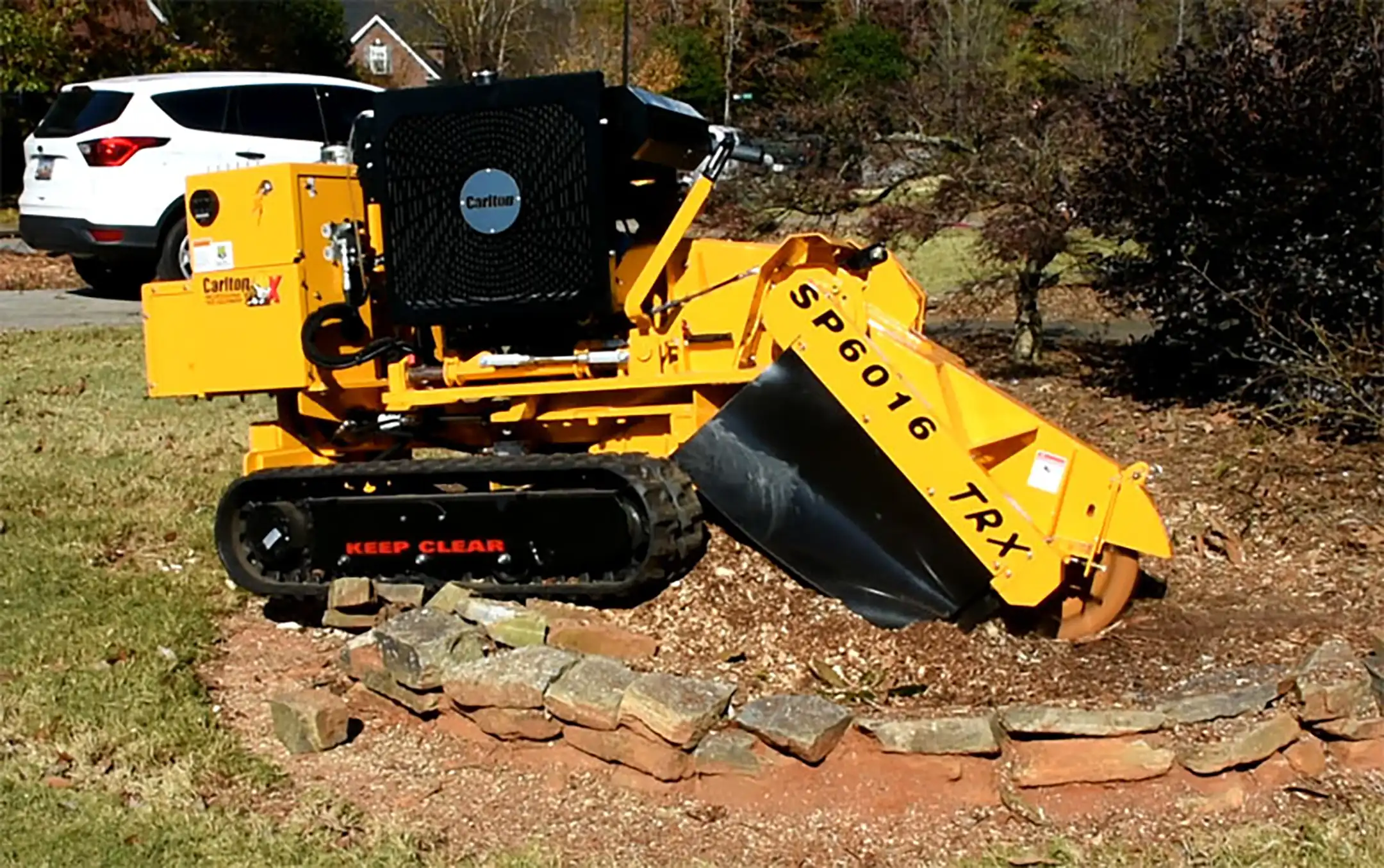

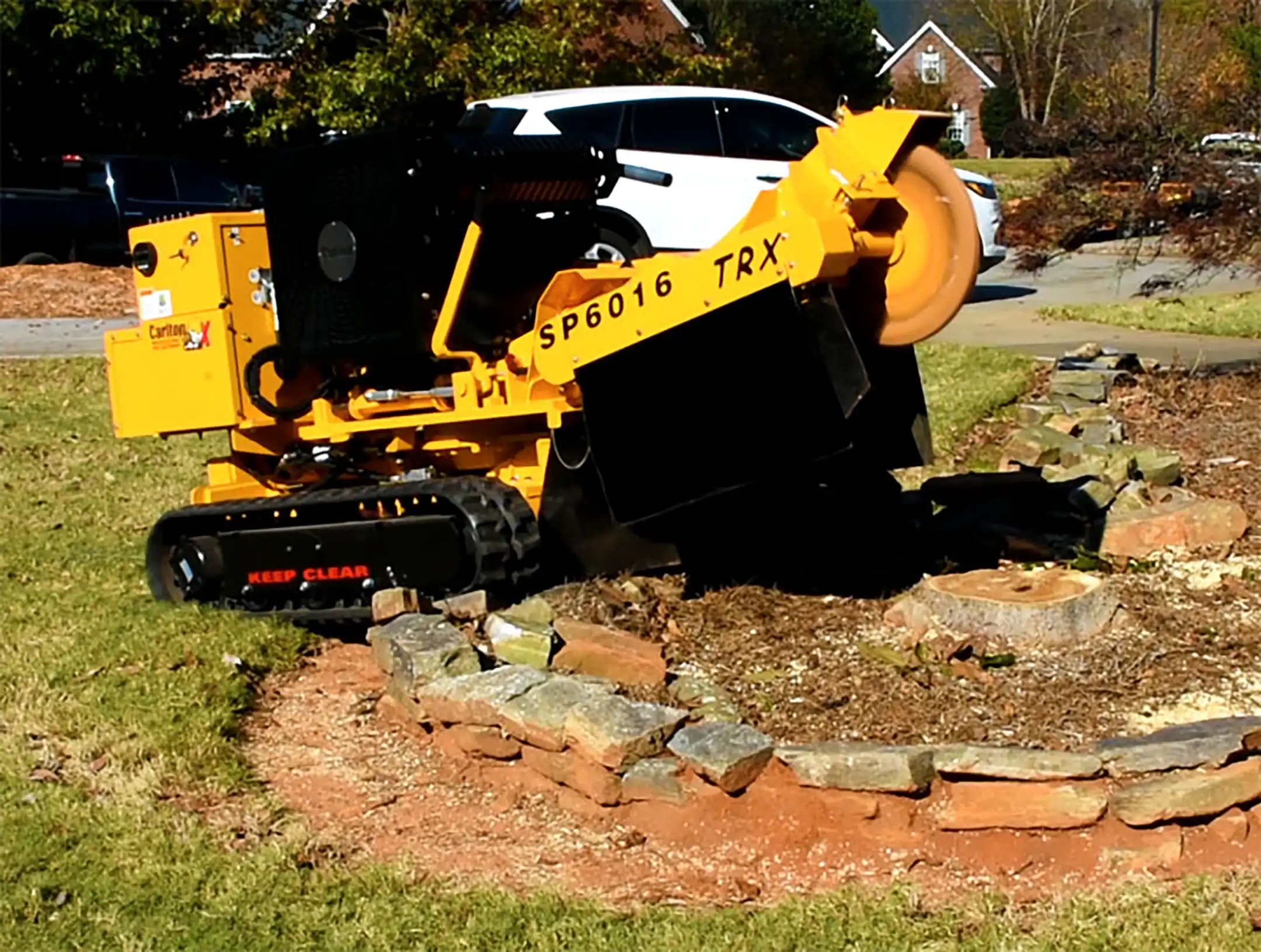

Carlton Stump Grinder
6016 TRX
Maximum cutting power in narrow and hard to reach areas.
J.P. Carlton manufactures a complete line of track-mounted stump cutters. These machines are the most versatile machines built today. Every machine in our line is manufactured with the same commitment to quality components and craftsmanship.
Carlton Stump Grinders
J.P. Carlton manufactures a complete line of track-mounted stump grinders. These machines are the most versatile machines built today. Every machine is manufactured with the same commitment to quality components and craftsmanship.
Max. Working Height
Max. Lateral Reach
Max. Basket Load Capacity
Total Net Weight
Large Cutter Wheel
21-inch diameter & 1 1/4-inch thick, provides maximum cutting power and flywheel momentum.
Proprietary Dual Motor Ground Drive
Eliminates troublesome chains, axles and axle bearings
Proprietary Rubber Track Undercarriage
Provides positive climbing power over the roughest terrain.
Expandable Tracks
Allows the machine to work in tight locations.
Specs
Model Specifications
The specs tell the story. Cutting wheel diameter, grinding depth, and a footprint narrow enough to clear a backyard gate are what let Carlton grinders reduce any stump, anywhere on the job.
14"
Cutter Depth Below Ground
34"
Cutter Height Above Ground
58"
Cutter Head Swing
1 1/4"
Cutter Wheel Thickness
36
Number of Teeth on Cutter Wheel
54 1/2"
Machine Width Wide Stance
35"
Machine Width Narrow Stance
60"
Machine Height
10' 3"
Machine Length
4,100 lbs
Total Weight
Image Description
Image Description
Image Description
Image Description
Image Description
