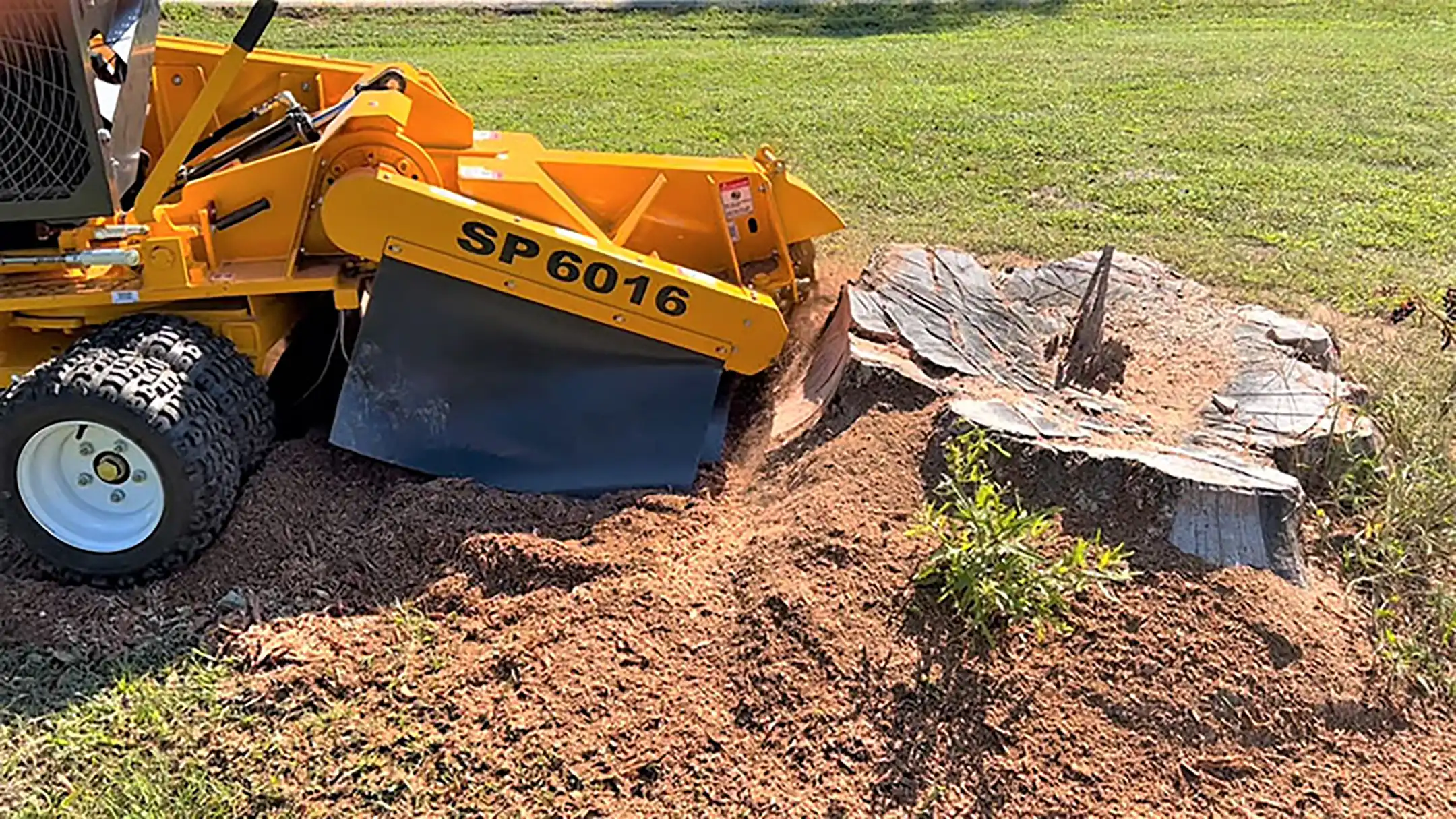

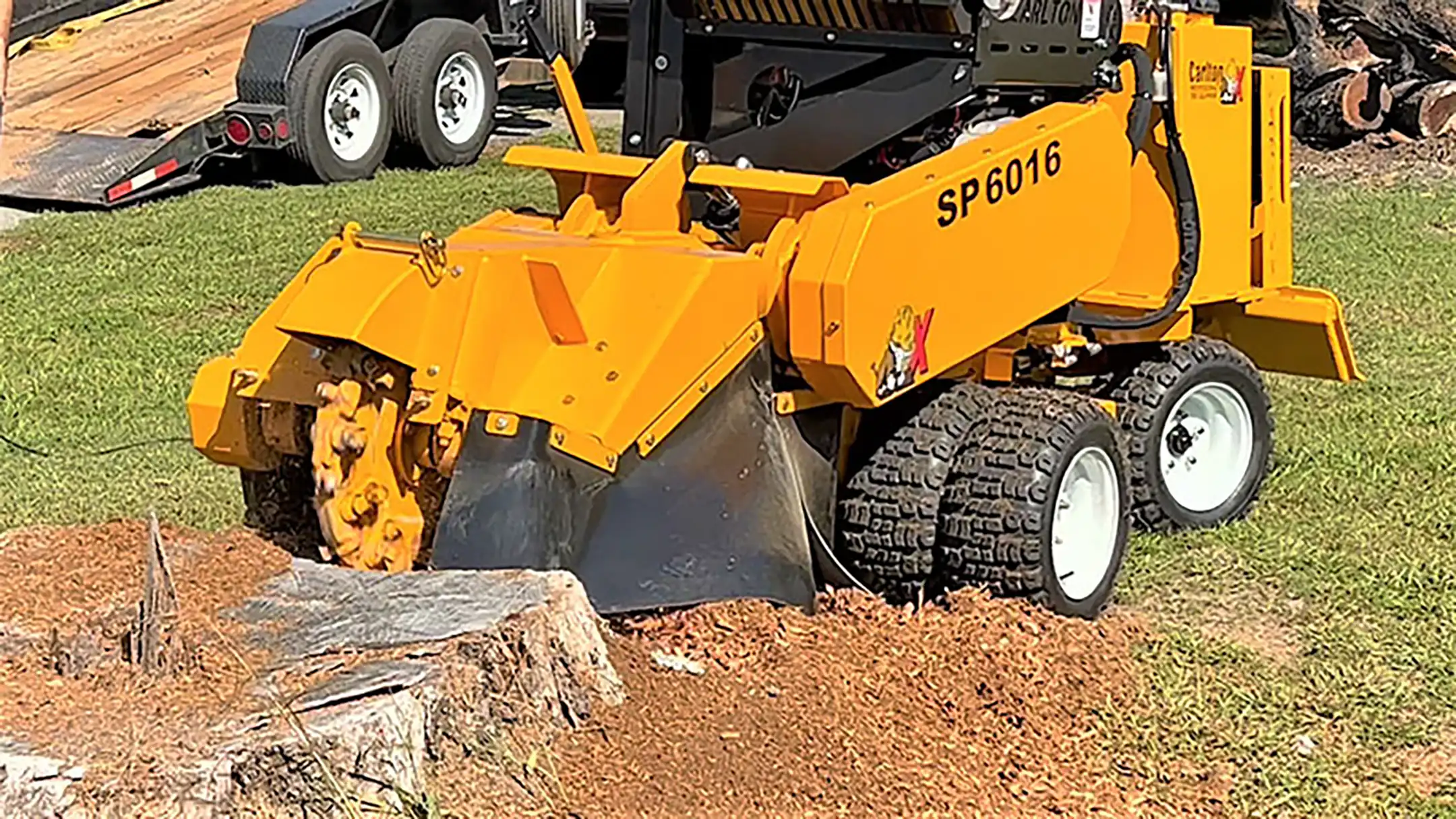

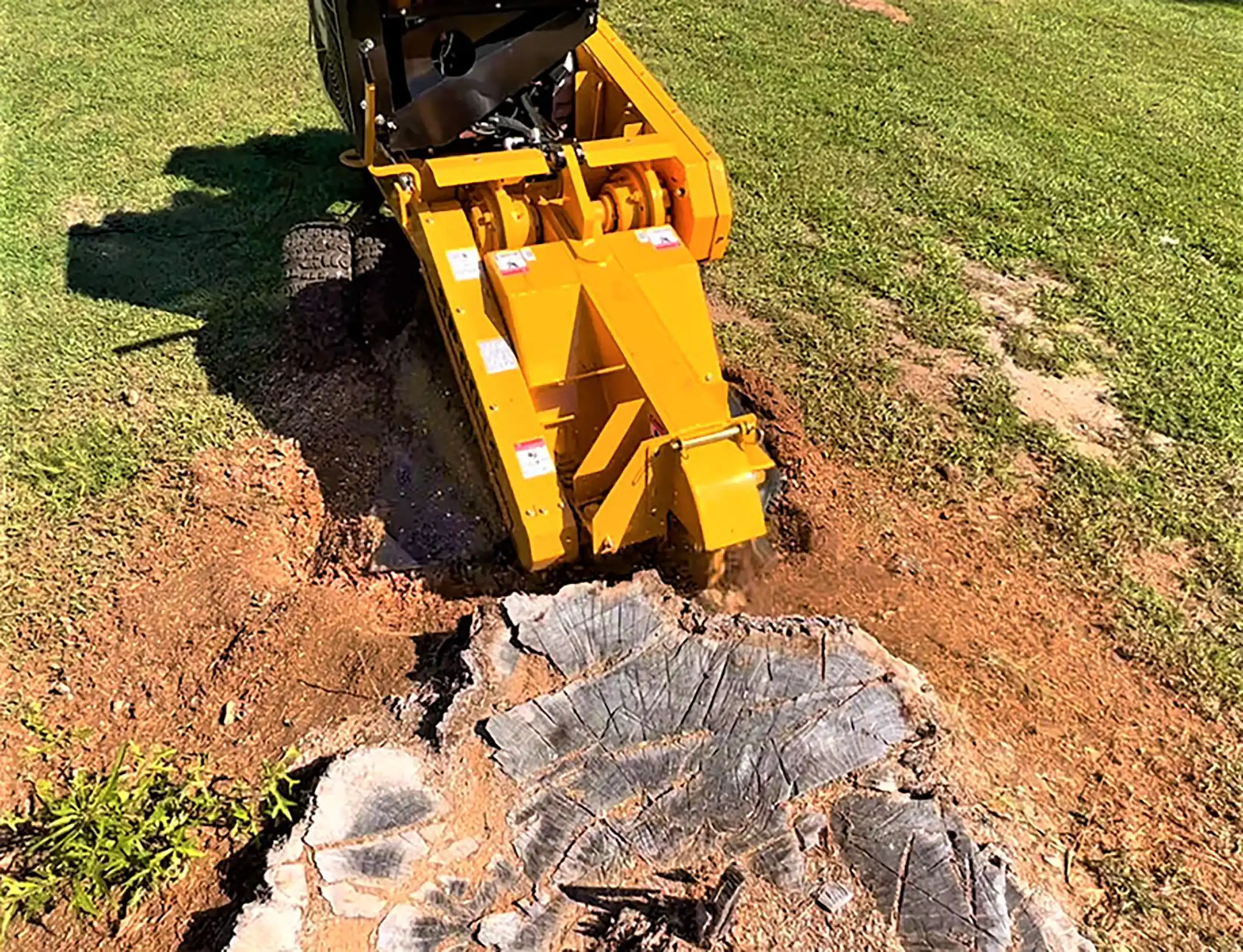

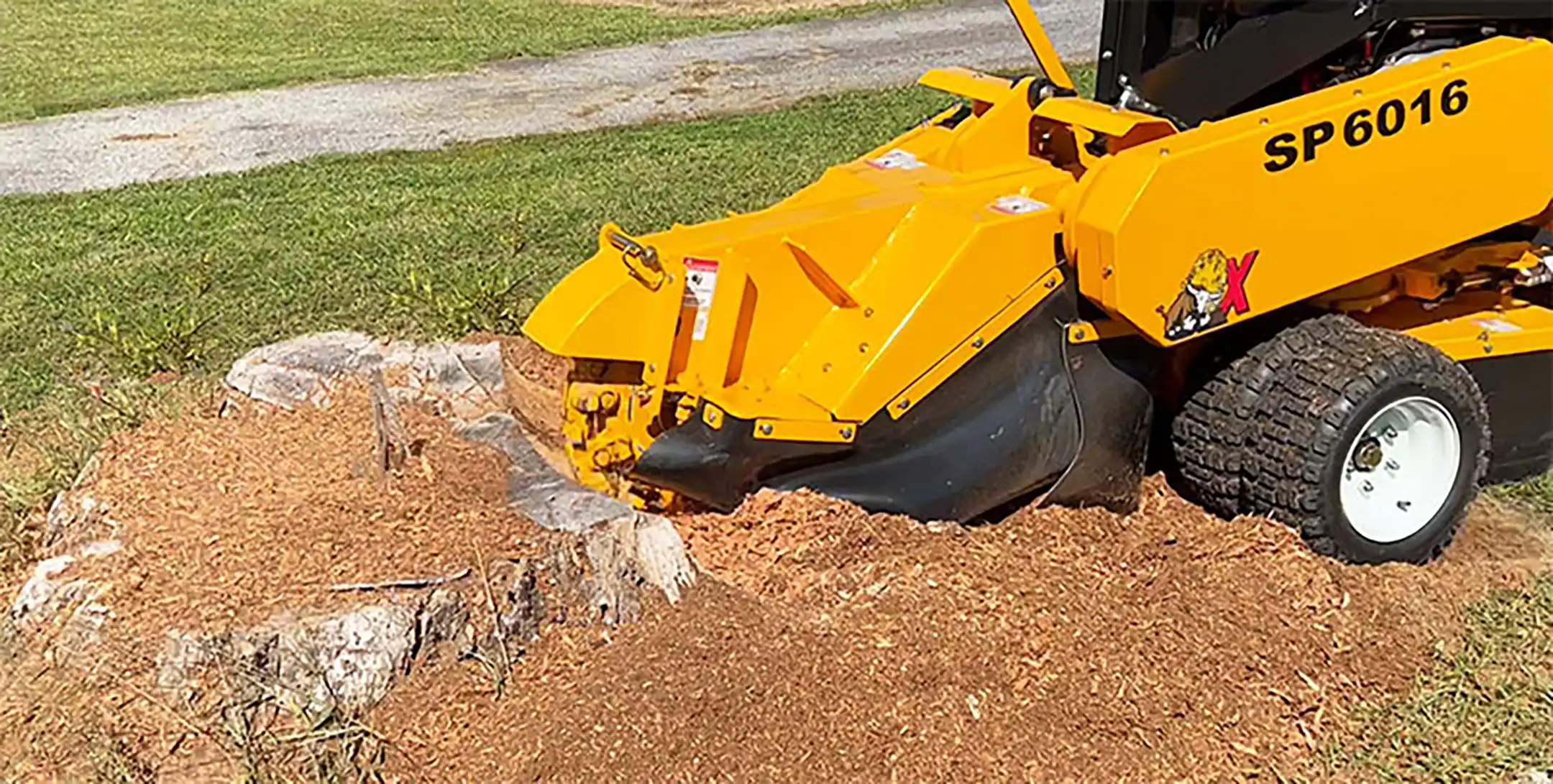

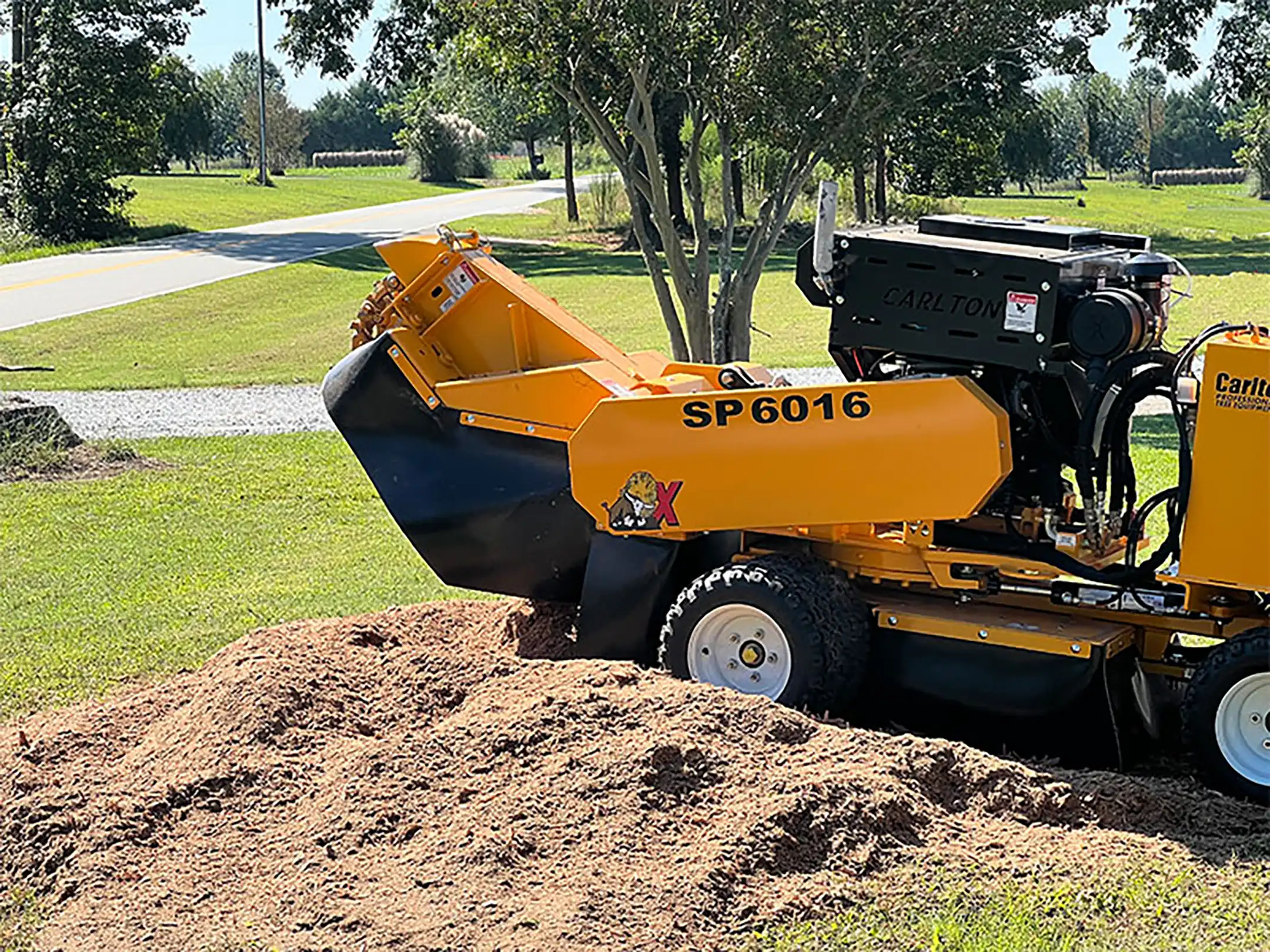

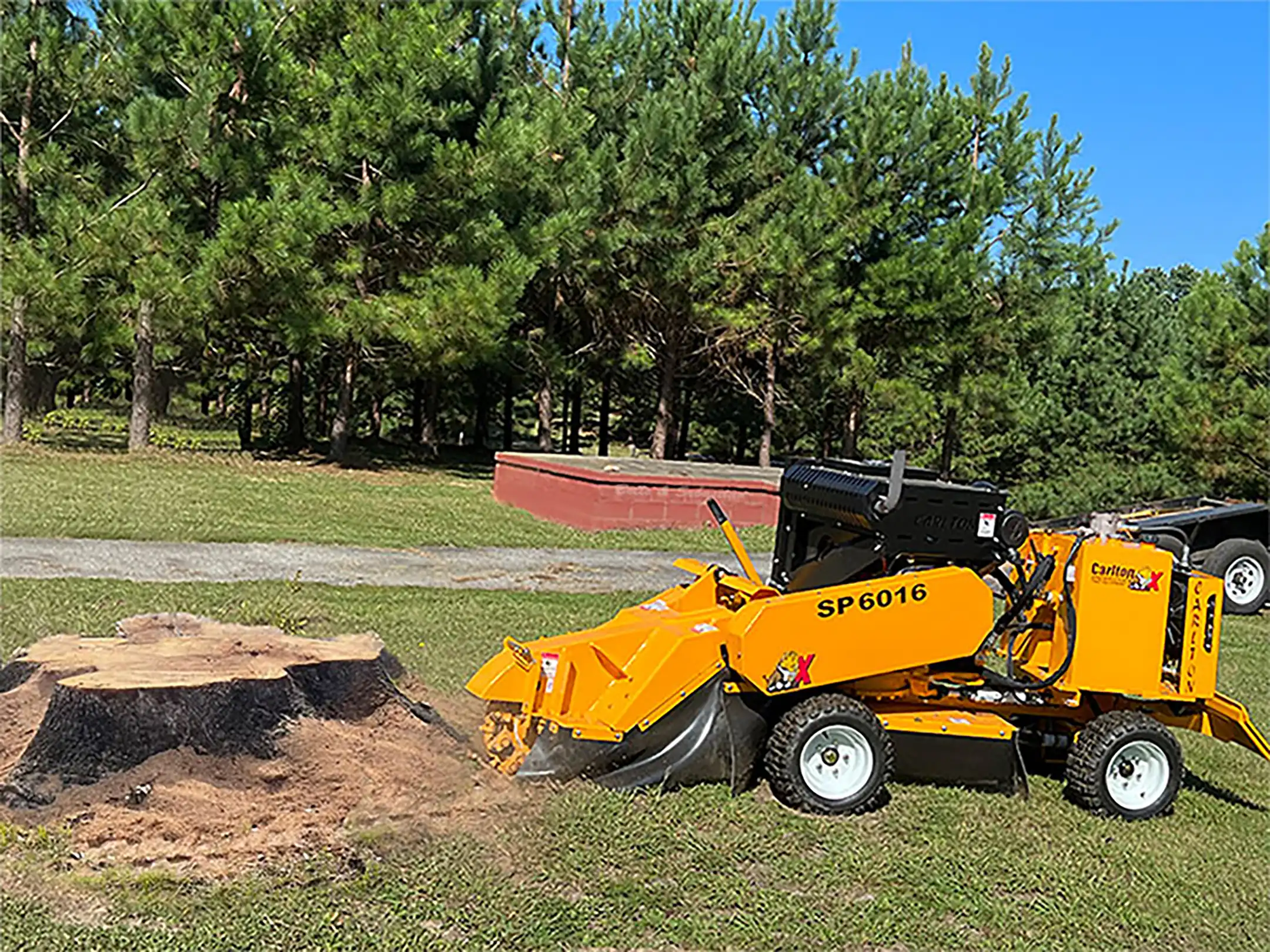

Carlton Stump Grinder
6016 Wheel
Maximum cutting power in narrow and hard to reach areas.
J.P. Carlton manufactures a complete line of track-mounted stump cutters. These machines are the most versatile machines built today. Every machine in our line is manufactured with the same commitment to quality components and craftsmanship.
Carlton Stump Grinders
J.P. Carlton manufactures a complete line of track-mounted stump grinders. These machines are the most versatile machines built today. Every machine is manufactured with the same commitment to quality components and craftsmanship.
Max. Working Height
Max. Lateral Reach
Max. Basket Load Capacity
Total Net Weight
Large Cutter Wheel
21-inch diameter & 1 1/4-inch thick, provides maximum cutting power and flywheel momentum.
Proprietary Dual Motor Ground Drive
Eliminates troublesome chains, axles and axle bearings
Optional Dual Wheels
Can be easily installed and removed.
Available with 4 Wheel Drive
Allows the machine to traverse the nastiest of terrain.
Specs
Model Specifications
The specs tell the story. Cutting wheel diameter, grinding depth, and a footprint narrow enough to clear a backyard gate are what let Carlton grinders reduce any stump, anywhere on the job.
16"
Cutter Depth Below Ground
36"
Cutter Height Above Ground
60"
Cutter Head Swing
1 1/4"
Cutter Wheel Thickness
36 Razor/ 20 Standard
Number of Teeth on Cutter Wheel
52" with duals
Machine Width Wide Stance
35"
Machine Width Narrow Stance
50"
Machine Height
10' 6"
Machine Length
3,200 lbs
Total Weight
