Tracked Aerial Lift

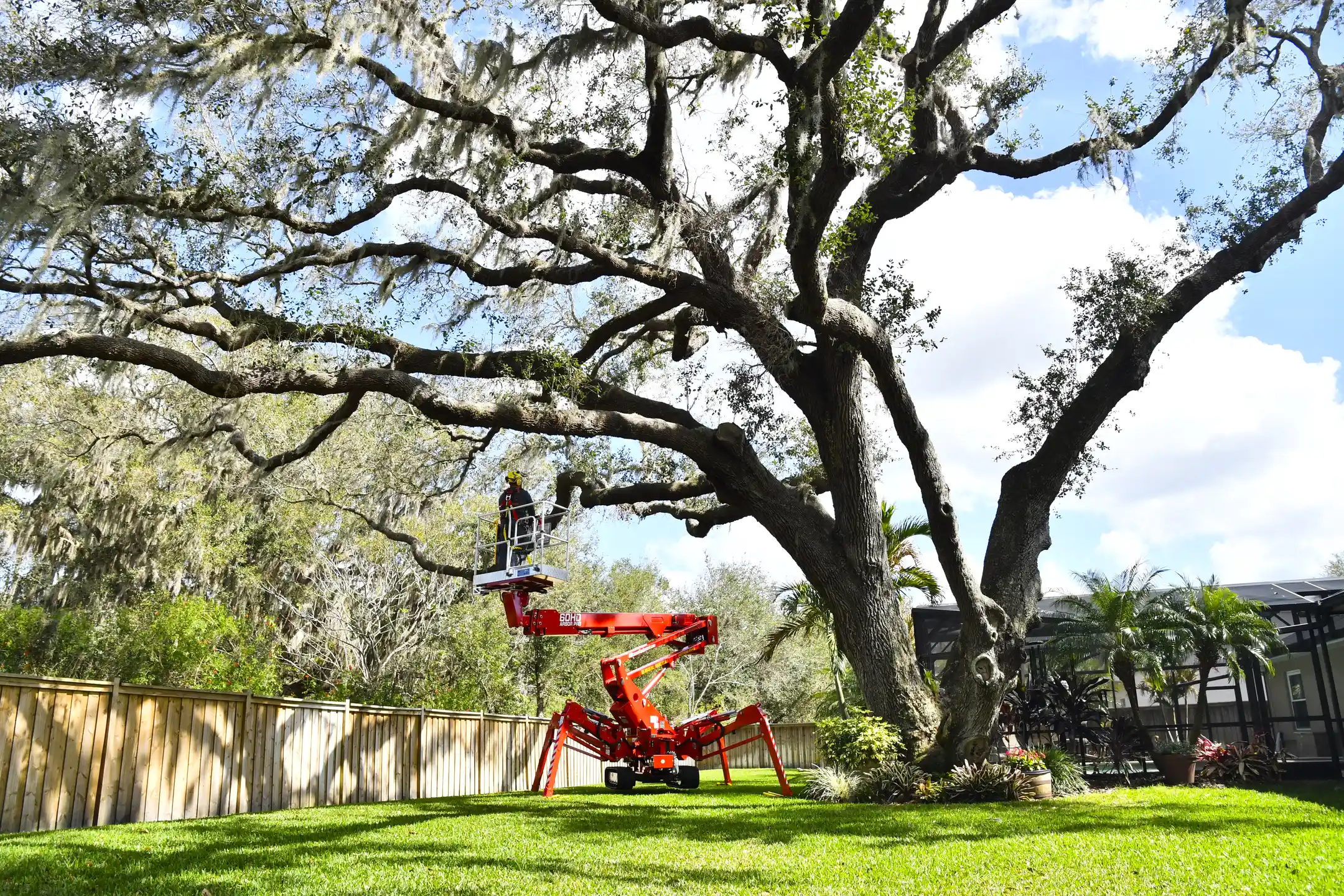

60HD Arbor Pro®
Forged with arborists, proven & trusted daily in the canopy.
Rigid. Balanced. Dependable. Designed for the chaos of tree work. Feels planted and predictable on uneven ground.
Arbor Pro® Series
Trusted by thousands of professional arborists across the U.S. as the go-to lift for demanding tree care applications.
Max. Working Height
62 ft

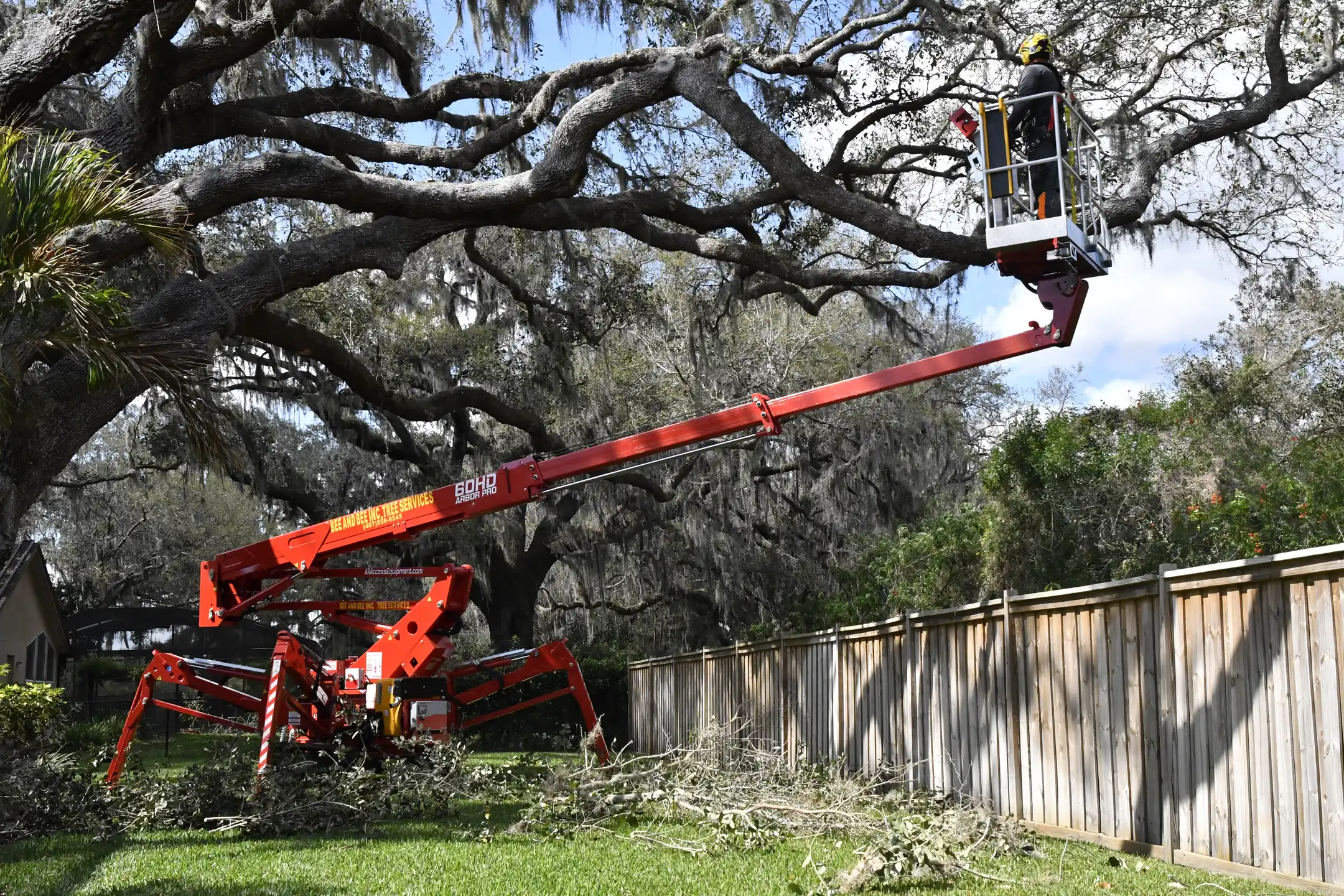

Max. Lateral Reach
38 ft
Max. Basket Load Capacity
485 lbs
Total Net Weight
5,919 lbs

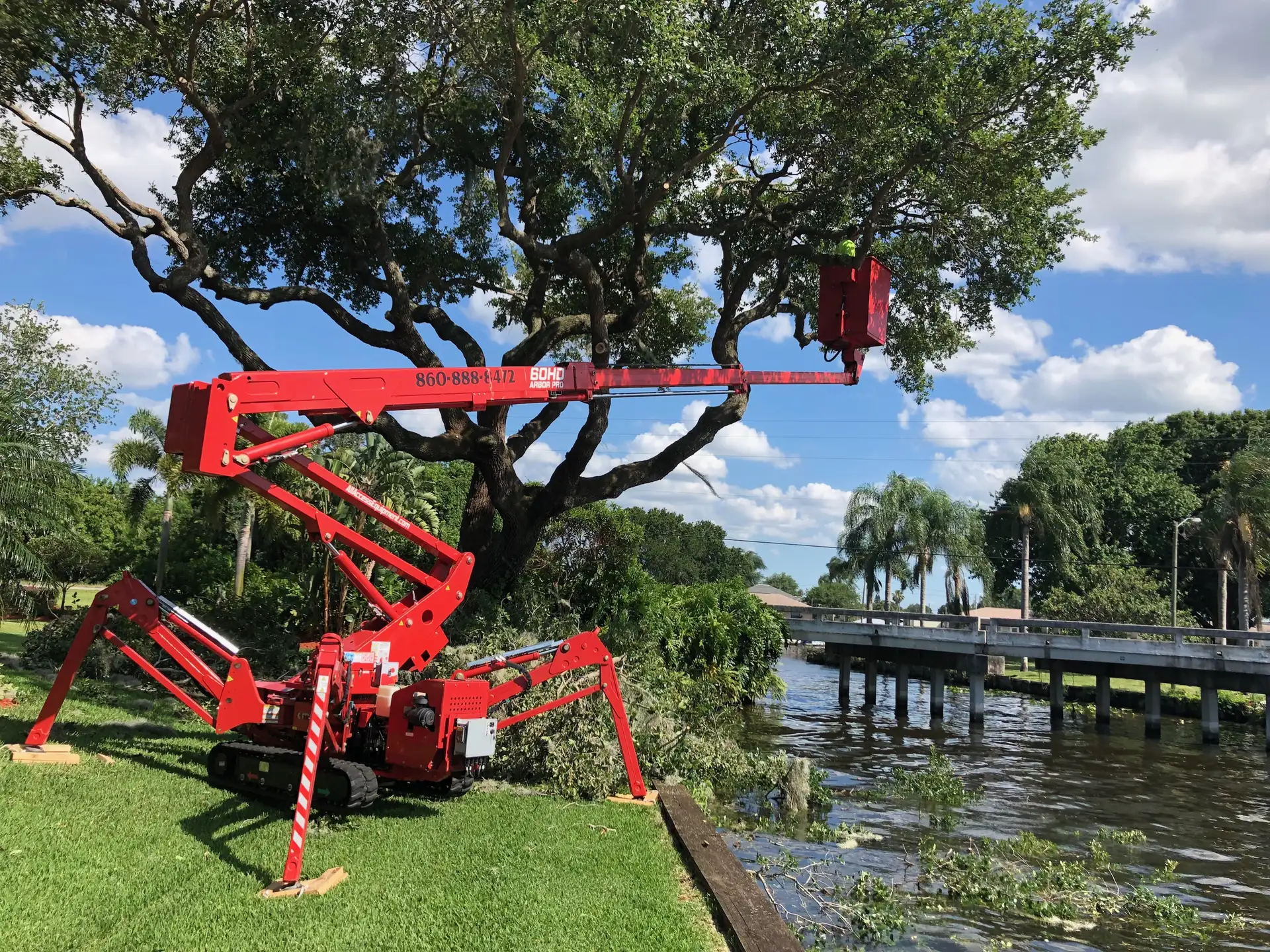

Telescopic Upper Boom
Telescopic upper boom drives up to 38 ft of side reach without repositioning the machine, so you cover more ground from a single setup.
Pantograph
The lower pantograph lifts you straight up to clear obstacles at the base, so you get over walls or equipment before you extend out.
Automatic Chassis Self-Leveling
Automatic chassis self-leveling sets up fast on slopes and uneven ground, keeping you level and safe while cutting your setup time.
Rotating Turret
The 720º rotating turret gives you near-full coverage without moving the tracks, so you reposition the basket, not the machine.

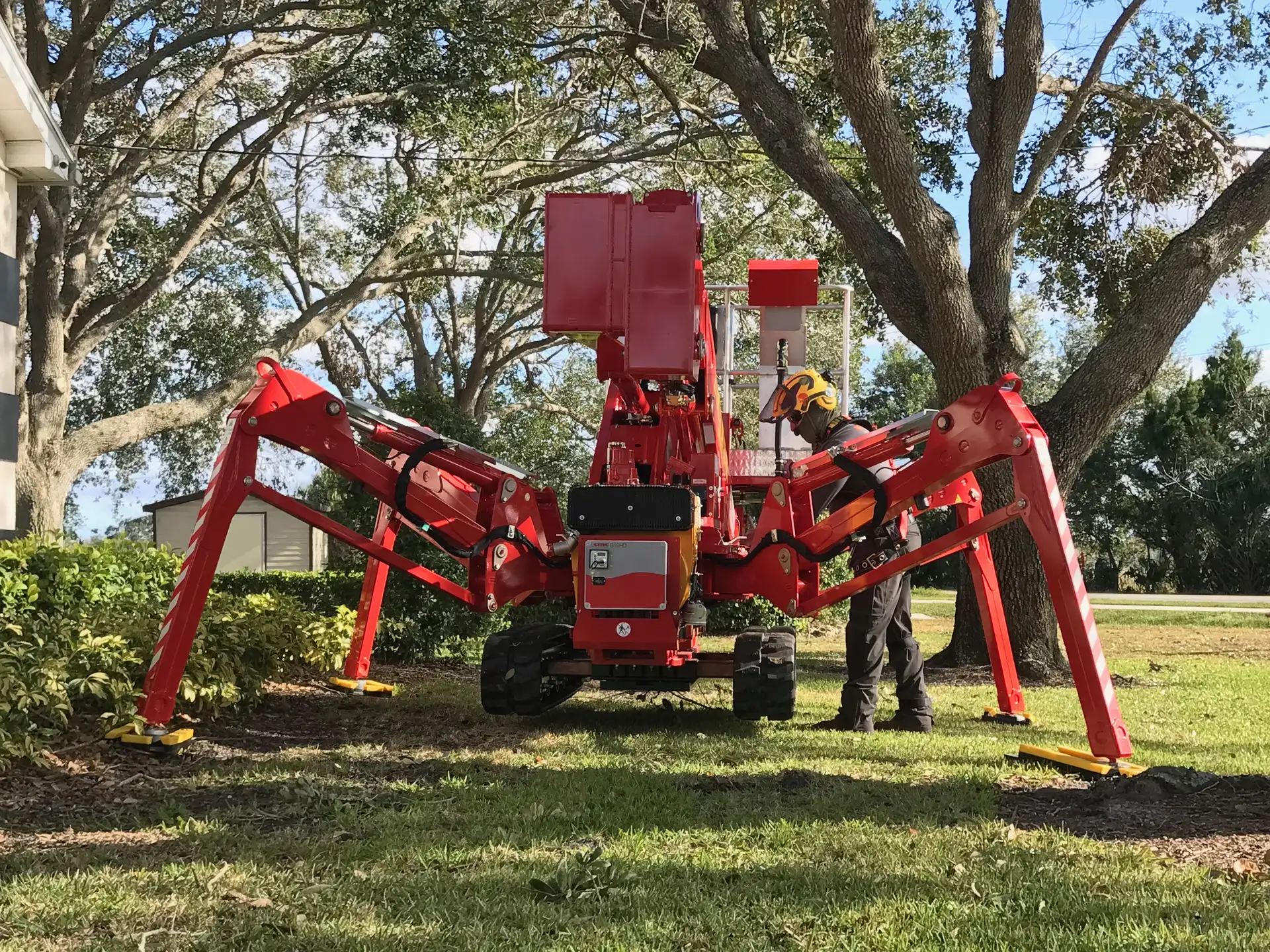

Adjustable Tracks
Adjustable tracks narrow to 35" to clear 36" gates and widen for stability, getting you into tight access spots others can't reach.
Specs
Model Specifications
Reach higher, set up faster, work where others can't. That's the capability built into every CMC lift.
62'
Working height
38'
Max. lateral reach
485 lbs
Max. basket capacity
Optional
Basket rotation
N/A
Jib articulation
Kubota Z602 Diesel
Engine
0 - 1.5 ft/s
Travel speed
19º (34%)
Gradeability
17º (30%)
Max. slope to stabilize
5,919 lbs
Total weight
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description

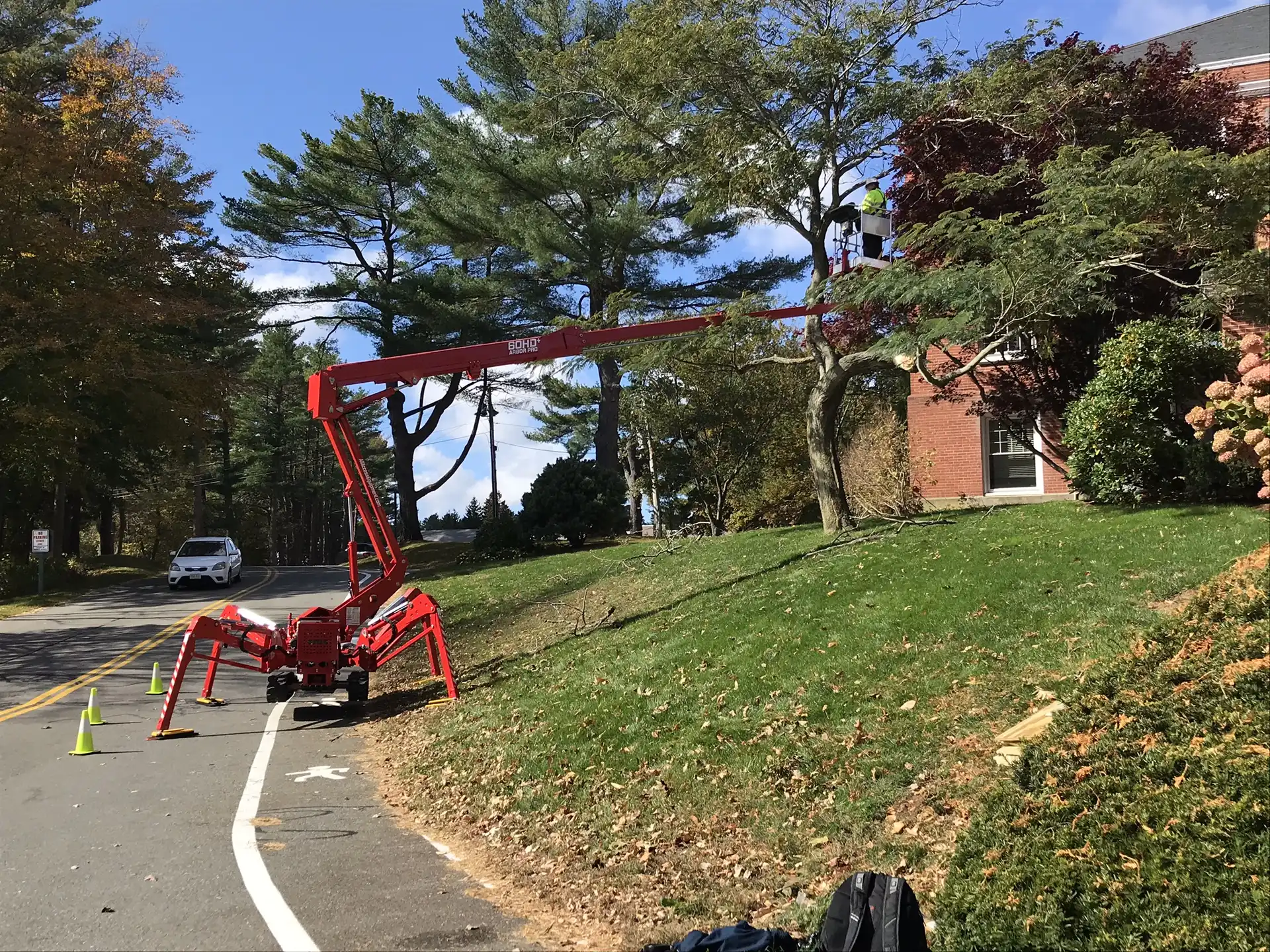

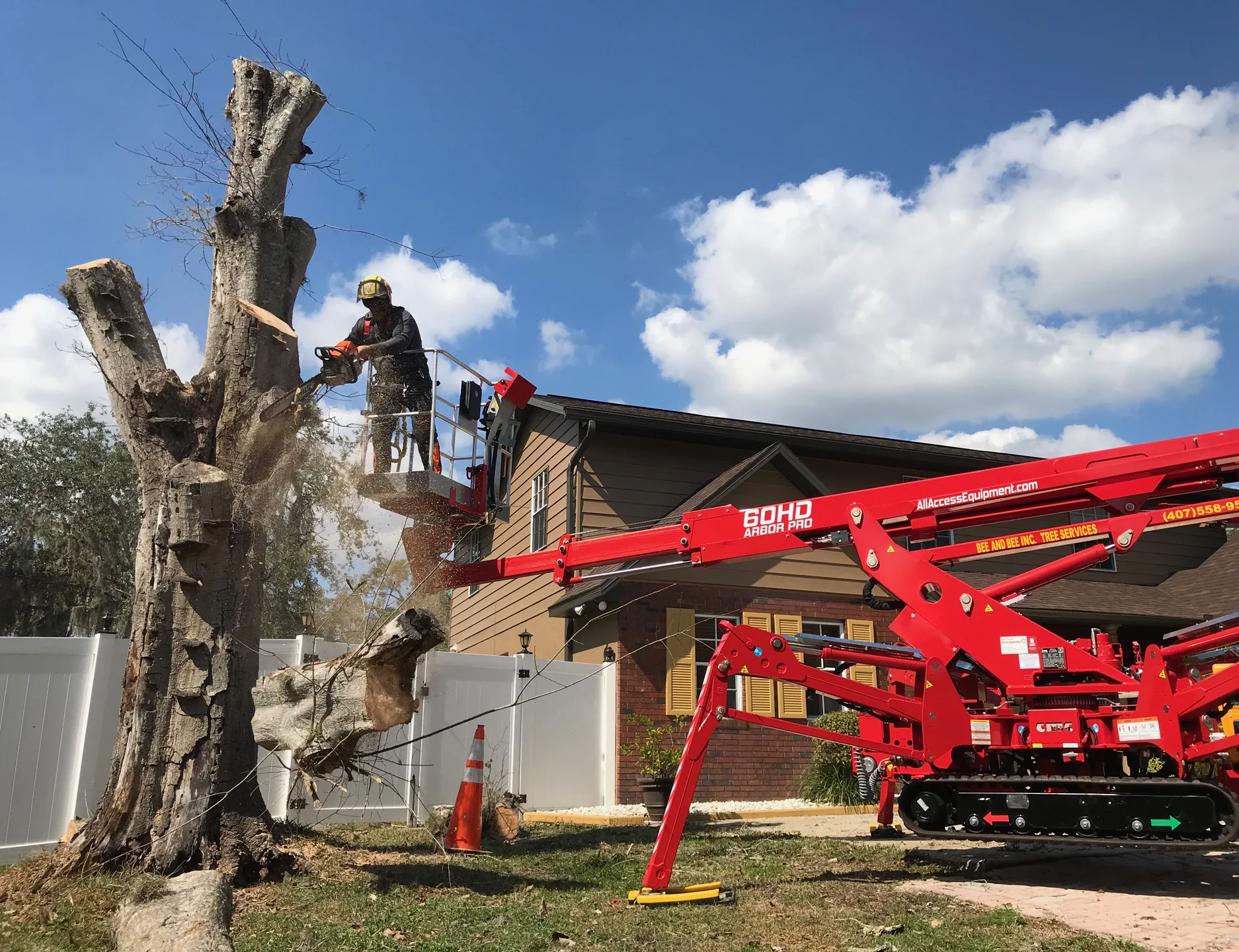

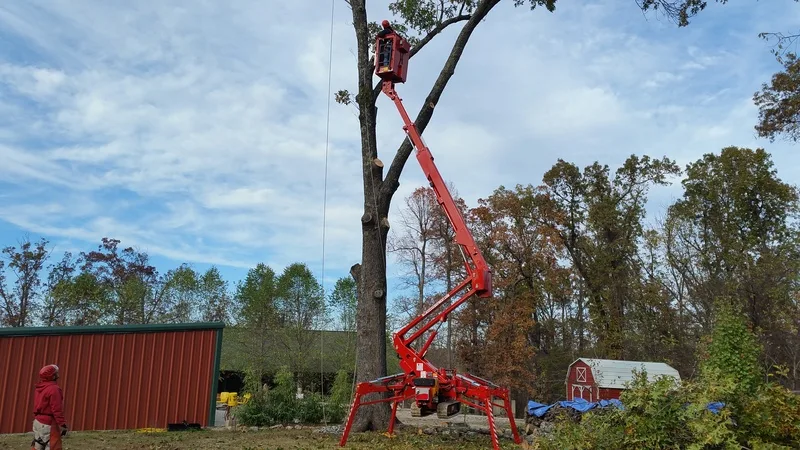

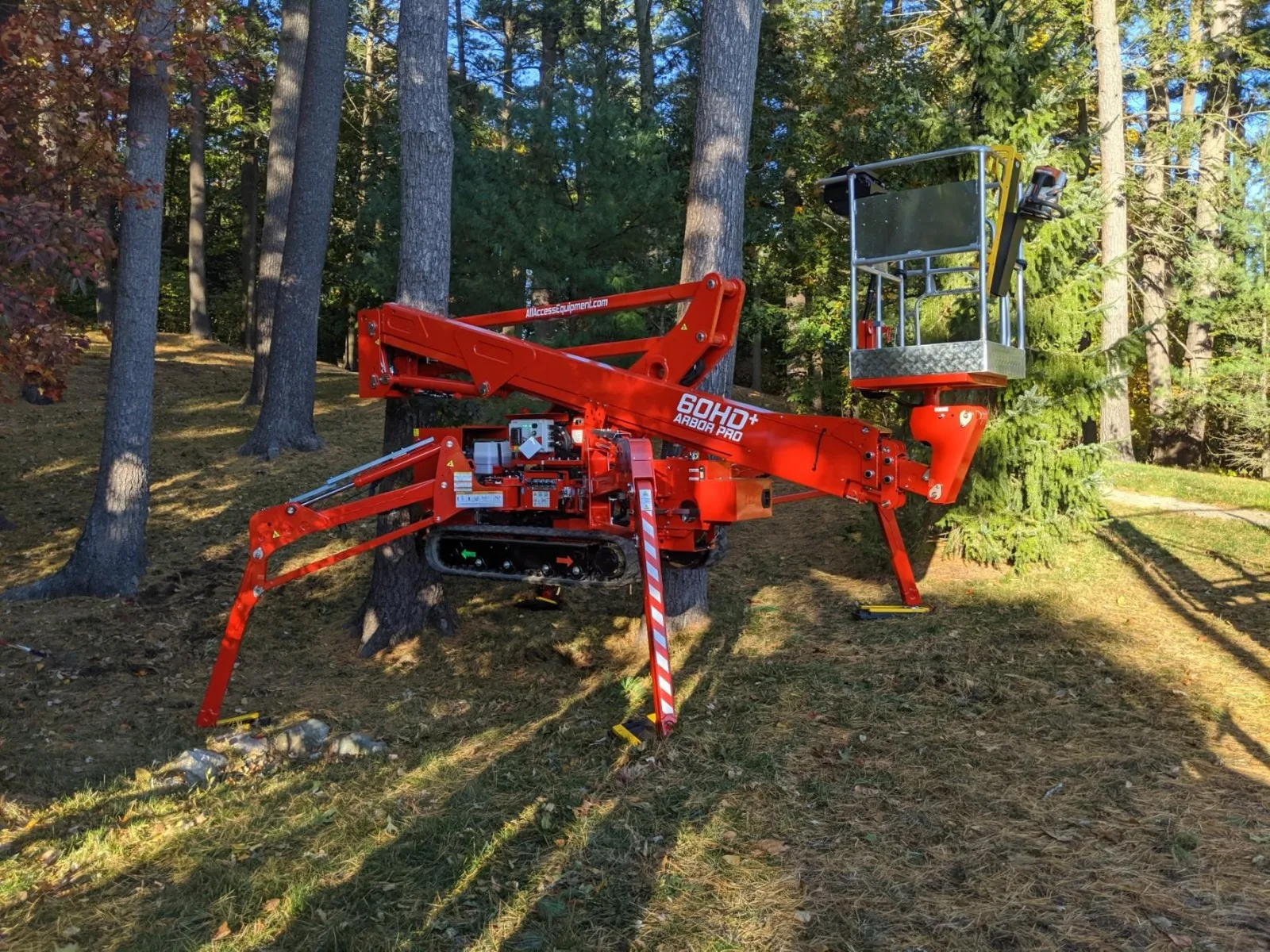

CMC 60HD Arbor Pro®
Overview of the CMC 60HD Arbor Pro®.
inclusions
Included with every lift
Every CMC lift is delivered with hands-on familiarization, manuals and documentation, a quick-access QR code linking to how-to videos, a safety harness, and spare equipment.
In-person delivery
In-person delivery and familiarization for up to 4 operators.
Operator's manual
Complete operator's manual, spare parts manual, service diagrams, error code lists, and quick guides.
How-to operation videos
Playlist link for familiarization videos to train future personnel.
Fall-arrest harness
A safety fall-arrest harness.
Spare equipment
Spare battery, fuse kit, and a coiled cord for wireless remote machines (when applicable).
