Tracked Aerial Lift
75i Utility Pro
Proven in Tree Work. Trusted for Line Work.
Stability, balance, and control. Engineered for confidence in rough terrain and tight rights-of-way.
Utility Pro Series
Electrically rated up to 46kV, the CMC Utility Pro series gives your crew the confidence and protection needed for trimming, maintenance, and line-clearing around live power.
Max. Working Height
75 ft
Max. Lateral Reach
33 ft
Max. Basket Load Capacity
397 lbs
Total Net Weight
8,664 lbs

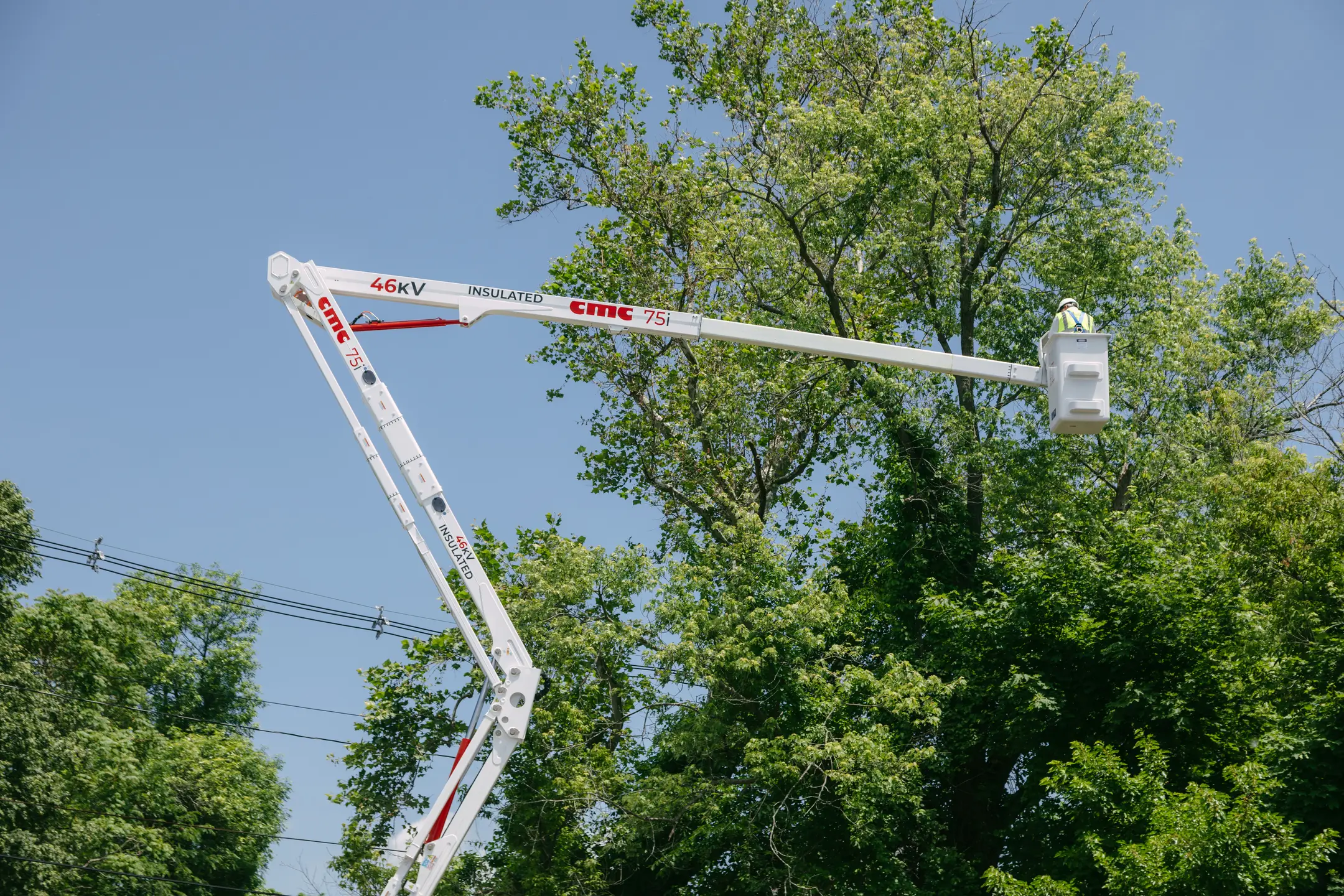

Telescopic Insulated Upper Boom

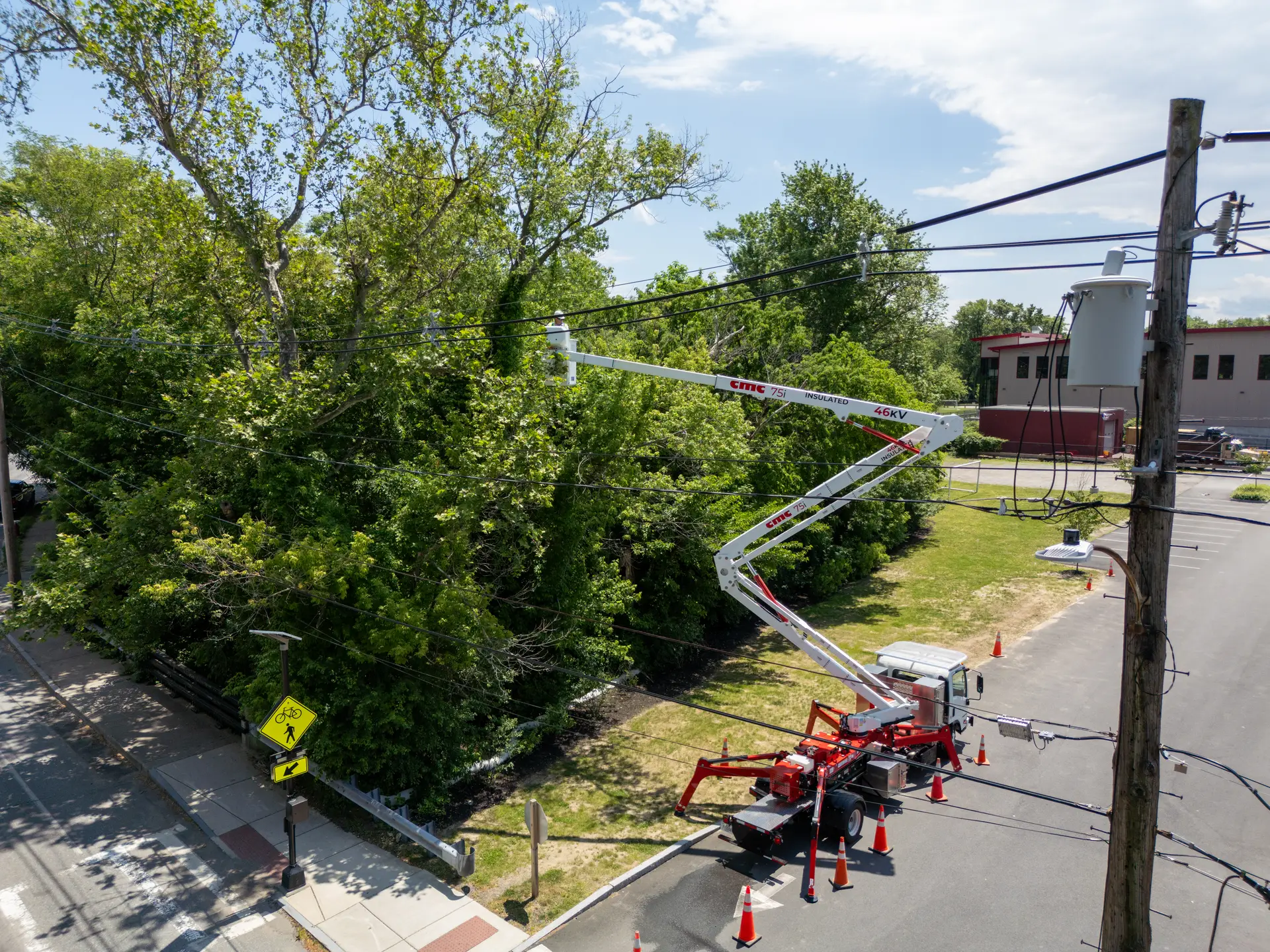

The insulated telescopic upper boom is rated to 46kV and reaches a 75 ft working height, so you work safely near energized lines without repositioning.
Double Pantograph Insulated Lower Boom
The insulated double pantograph lower boom lifts you up and over obstacles at the base while keeping you protected near energized lines.
Automatic Chassis Self-Leveling
Automatic chassis self-leveling handles slopes up to 19° (34%), setting up fast on uneven ground so you stay level and safe while cutting setup time.
Rotating Rear Mounted Turret
The rear-mounted rotating turret opens a wide, secure work zone away from the base, so you keep crew and gear clear while working near lines.
Adjustable Tracks
Adjustable tracks narrow to clear 36" gates and widen for stability, getting you into tight access spots others can't reach.

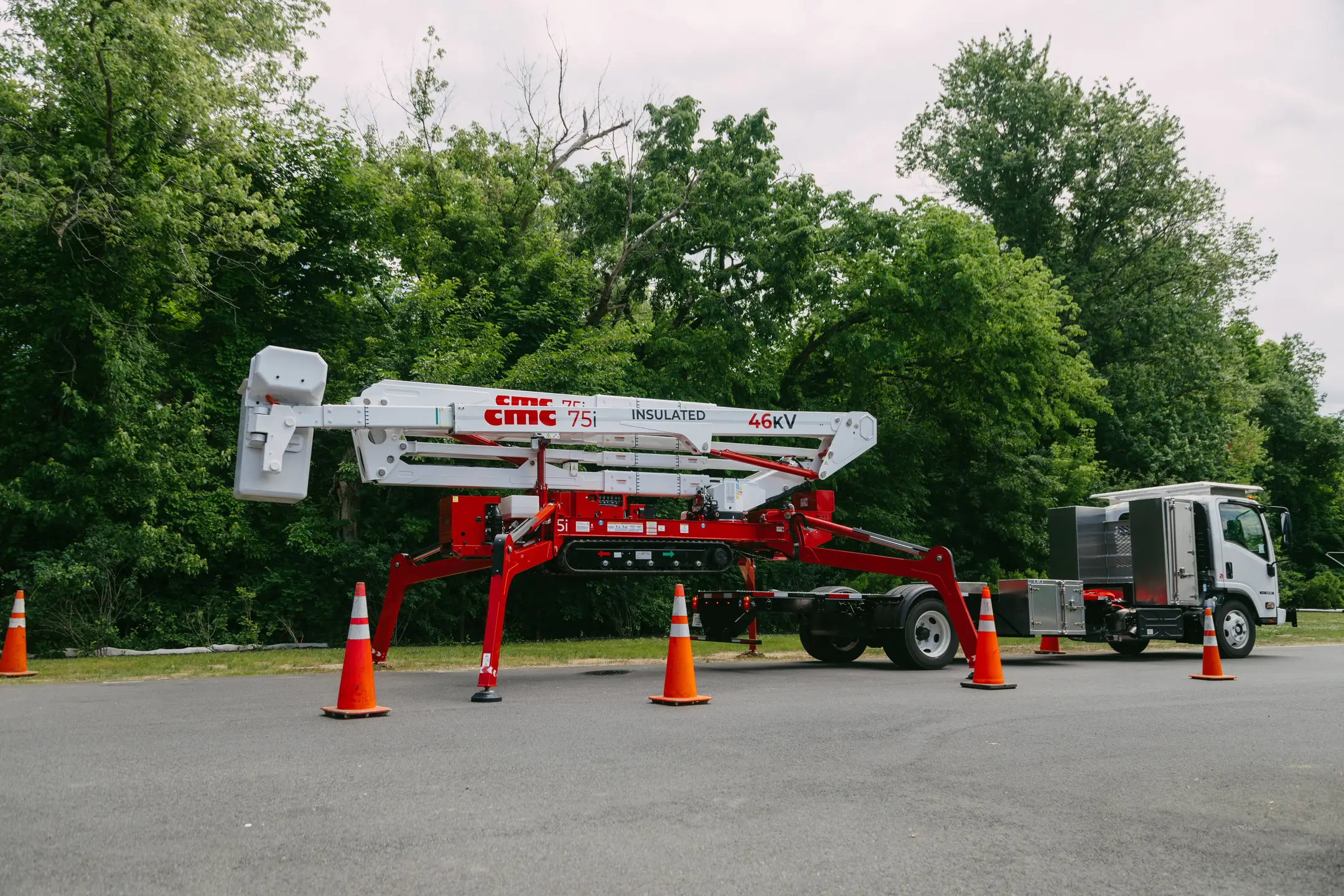

Multiple Outrigger Positions
Multiple outrigger positions let you set up wide for stability or narrow in tight spots, so you can work safely wherever the job puts you.
Fiberglass Basket with Rotation
The fiberglass basket rotates +/- 90° for insulated protection and precise positioning, letting you line up on the work near energized conductors.
Specs
Model Specifications
Reach higher, set up faster, work where others can't. That's the capability built into every CMC lift.
46kV
Insulation rating
75'
Working height

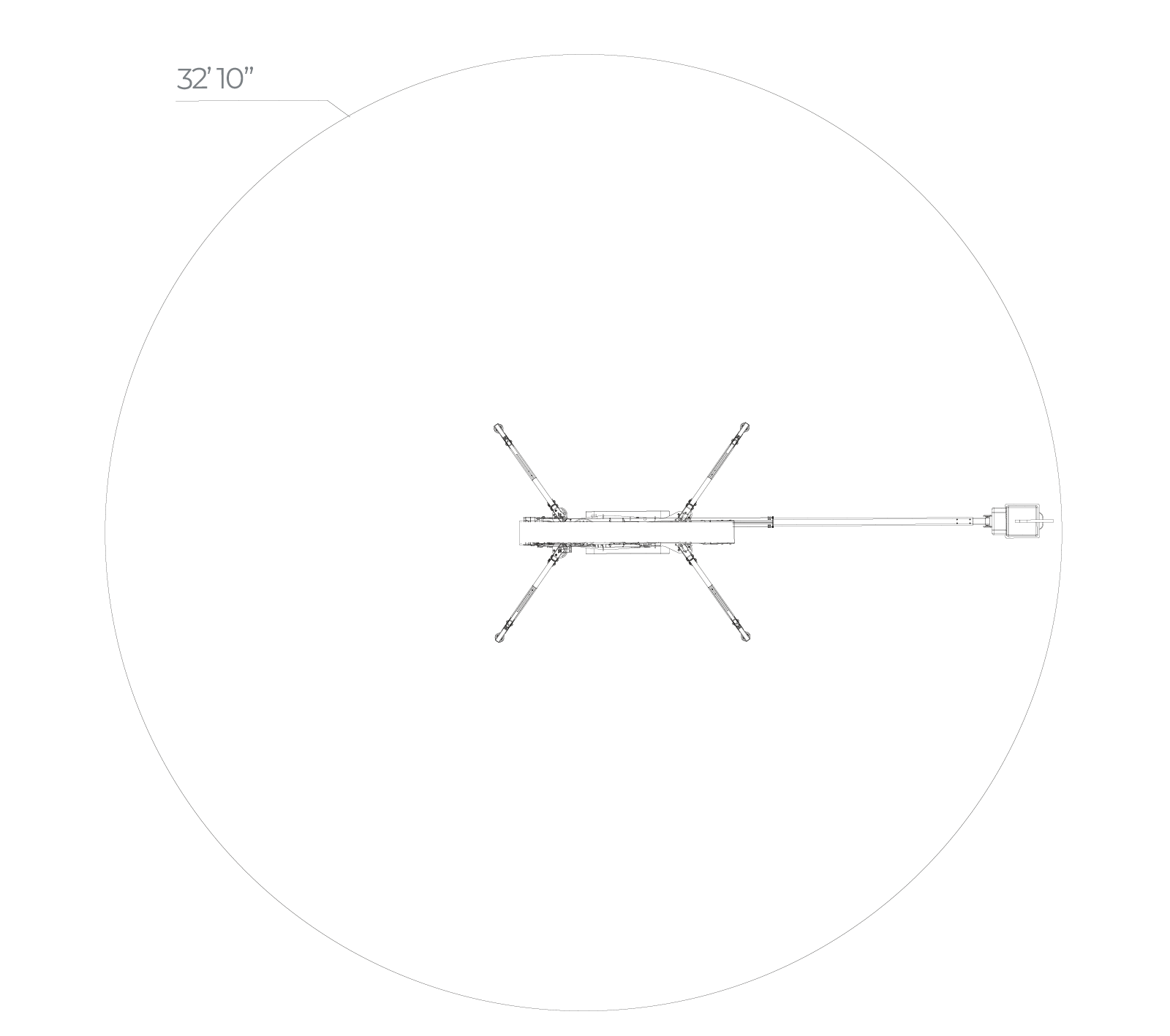

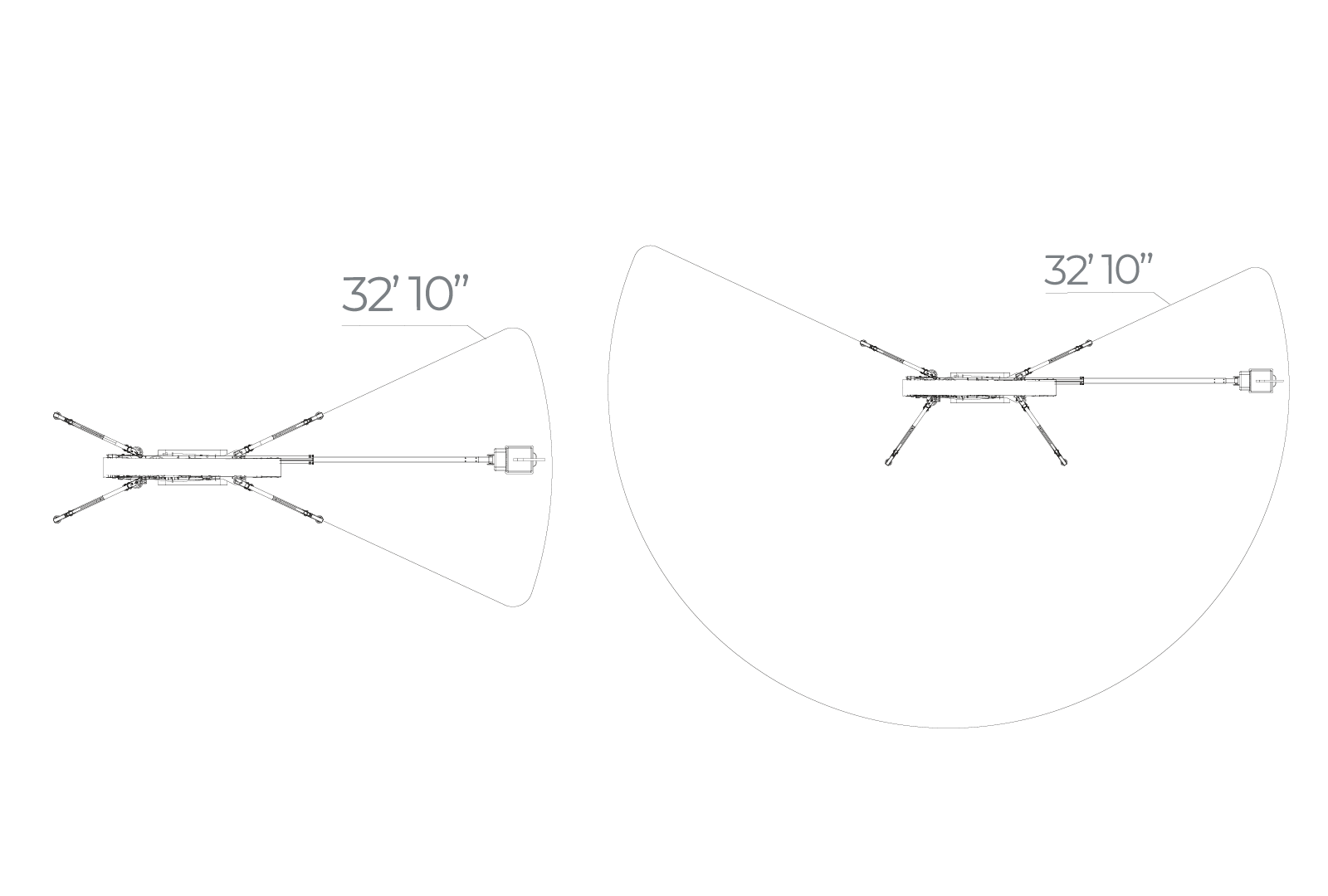

32' 10"
Max. lateral reach
400 lbs
Max. basket capacity
+/-90º
Basket rotation
Kubota D902 Diesel
Engine
0 - 1.5 ft/s
Travel speed
19º (34%)
Gradeability
32º (62%)
Max. slope to stabilize
8,664 lbs
Total weight
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description

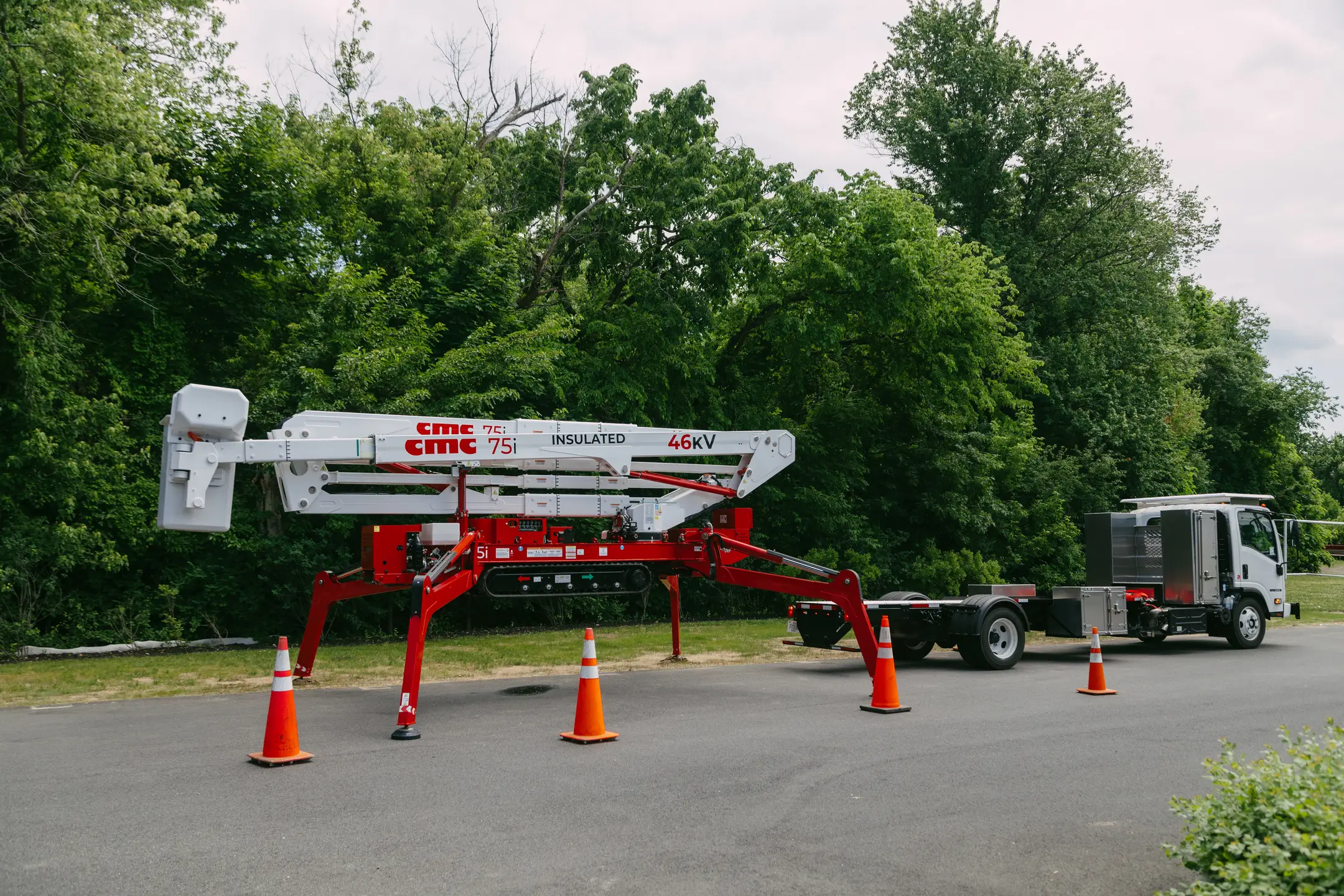

CMC 75i Insulated Aerial LIft
Overview of the CMC 75i insulated tracked aerial lift.
inclusions
Included with every lift
Every CMC lift is delivered with hands-on familiarization, manuals and documentation, a quick-access QR code linking to how-to videos, a safety harness, and spare equipment.

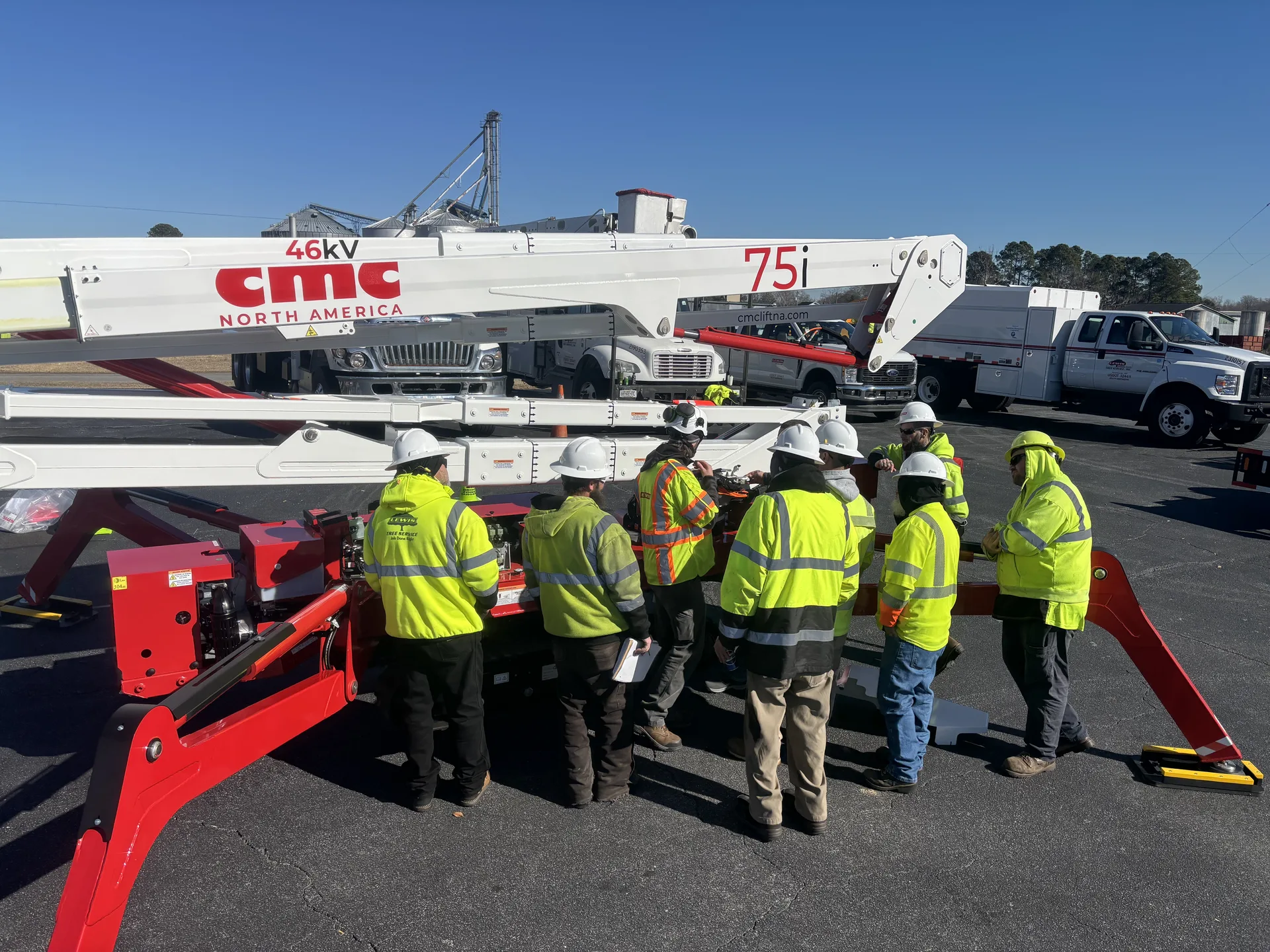

In-person delivery
In-person delivery and familiarization for up to 4 operators.
Operator's manual
Complete operator's manual, spare parts manual, service diagrams, error code lists, and quick guides.
How-to operation videos
Playlist link for familiarization videos to train future personnel.
Fall-arrest harness
A safety fall-arrest harness.
Spare equipment
Spare battery, fuse kit, and a coiled cord for wireless remote machines (when applicable).
Models
Other models in the same series
