Carlton Chipper
2518
Powerful & Portable. Reliability that trimming crews can count everyday.
J.P. Carlton builds a full line of 7-21 inch capacity wood chippers. Unique design elements make them among the industry's most desired. Every Carlton chipper reflects superior engineering and top-quality construction.
Carlton Wood Chippers
J.P. Carlton manufactures a complete line of 7-, 9-, 12-, 15-, 18-, and 21-inch capacity wood chippers. These chippers feature many unique design elements that make them the most desired chippers in the industry. Each Carlton wood chipper is a result of superior design and the highest quality construction.
Max. Working Height
Max. Lateral Reach
Max. Basket Load Capacity
Total Net Weight
Oversized 37″ Diameter Chipping Drum
Cuts down and forward - Cutting with the grain minimizes the horsepower required, while giving the smoothest chipping action and best discharge possible.
Three Feed Motors
Three Feed Motors working on independent circuits provide extreme pulling power.

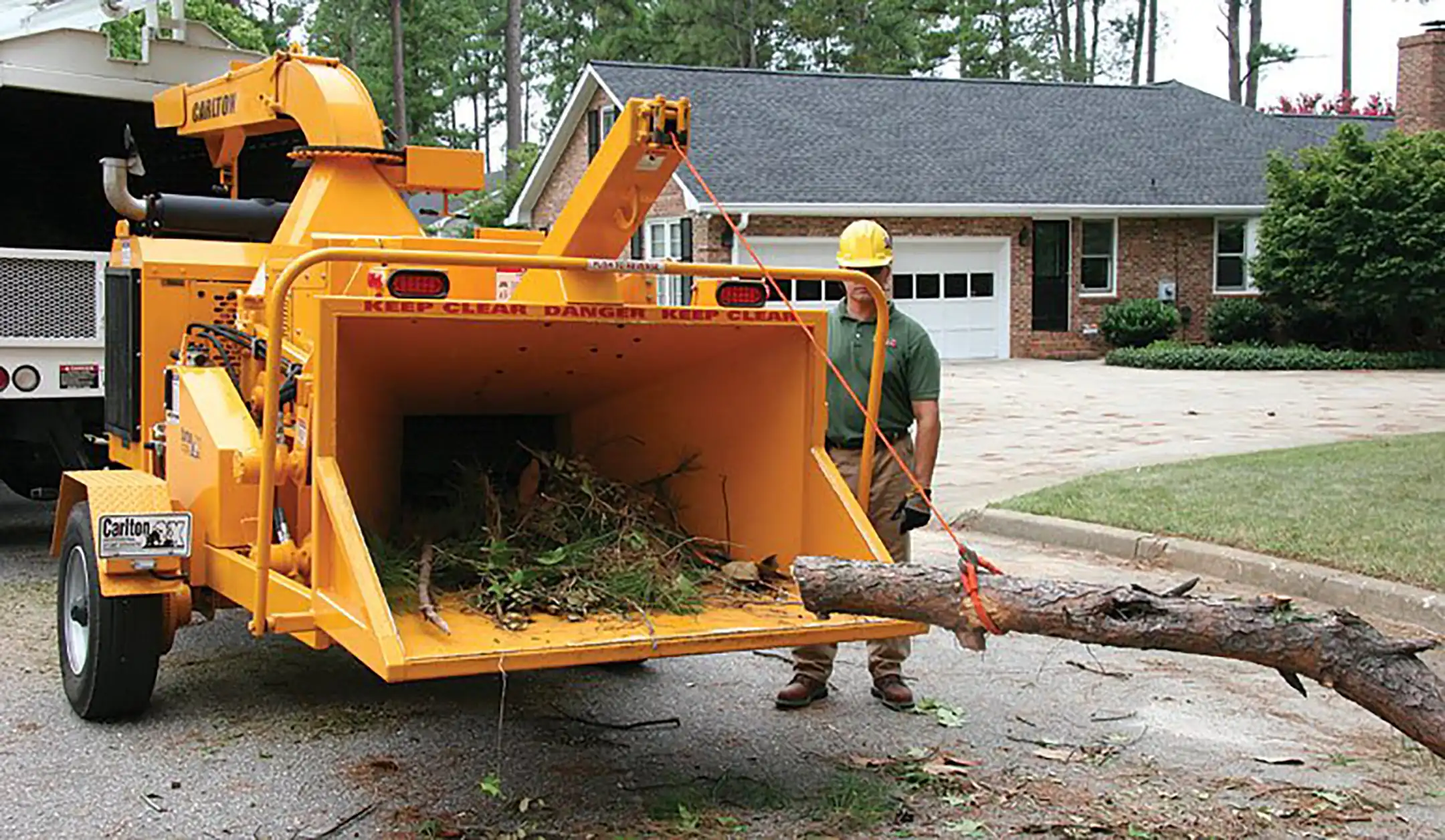

64″ Wide Infeed
Chute takes the big tops and requires less trimming by the crew.
Tandem Hydraulic System
Provides hydraulic fluid independently to each feed wheel. This system ensures the most power at all times to the feed system.
Optional Hydraulic Winch
Optional Hydraulic Winch gets the big material to the chipper.

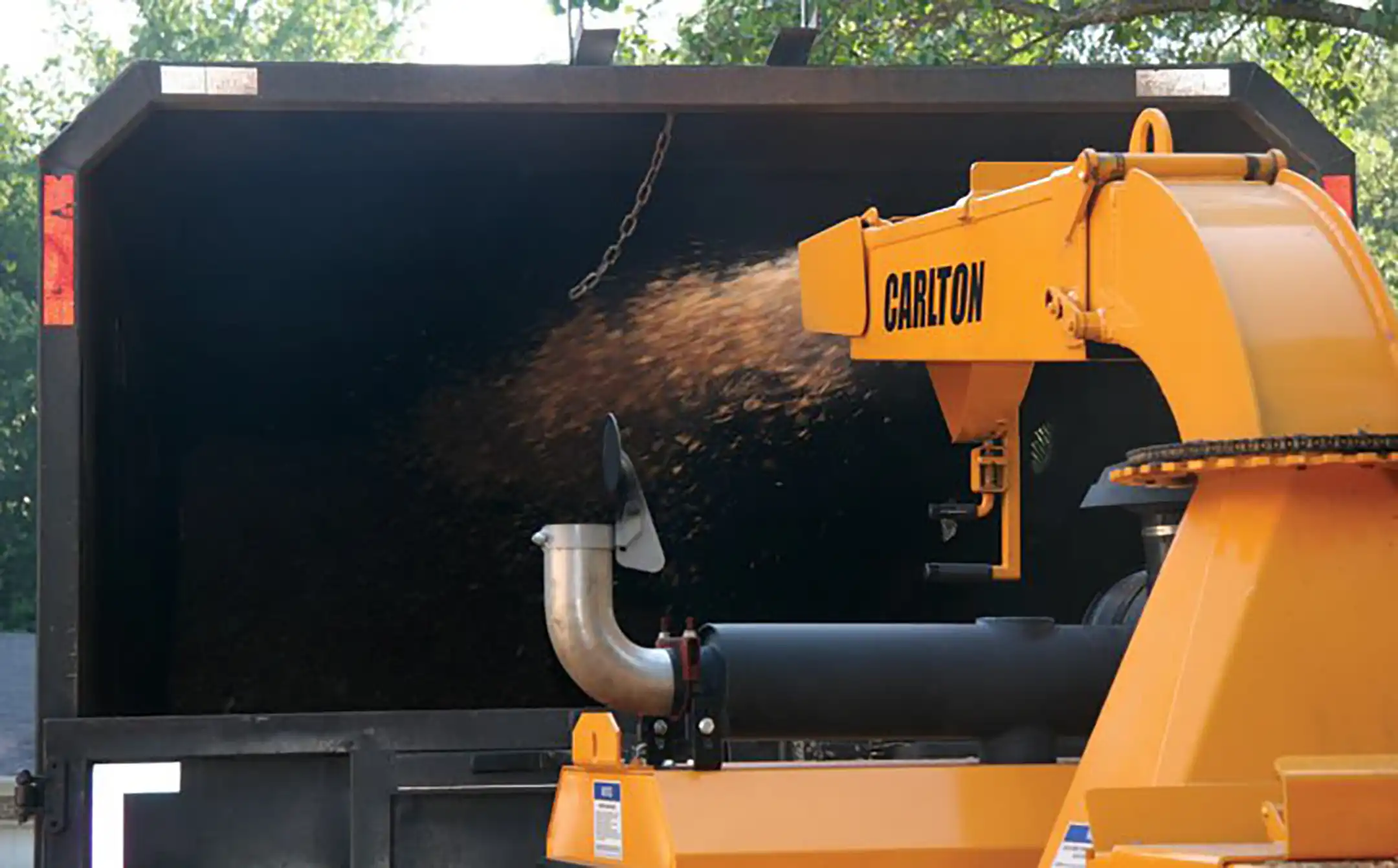

Swivel Discharge
Quickly and easily allows the operator to fill the largest capacity chip trucks corner to corner, or direct the chips to a precise place on the lot.
25″ x 18″ Throat Opening
Massive 25″ x 18″ Throat Opening is the largest in its class and easily handles the largest tops.
Specs
Model Specifications
The specs tell the story. Chipping capacity, feed system, and drum power are what let Carlton chippers turn a pile of brush into clean mulch without slowing your crew down.
11,300 lbs
Weight
20' 4"
Length
9' 10"
Height
7' 7"
Width
25" x18"
Throat Opening
64" x 35"
Infeed Hopper Opening
37"
Chipper Drum Diameter
46 cubic inch displacement
Feed Motor Top
32 cubic inch displacement
Feed Motor Bottom
100' per minute
Feed Rate
Top: 15 3/4" | Bottom: 10 1/2"
Feed Roller Diameter
360º Manual Swivel (Hydraulic optional)
Discharge Chute
