Carlton Chipper
2821
Powerful & Portable. Reliability that trimming crews can count everyday.
The J.P. Carlton 2821 is designed and built to stand up in the toughest applications, able to withstand all the punishment you and your crew can dish out.

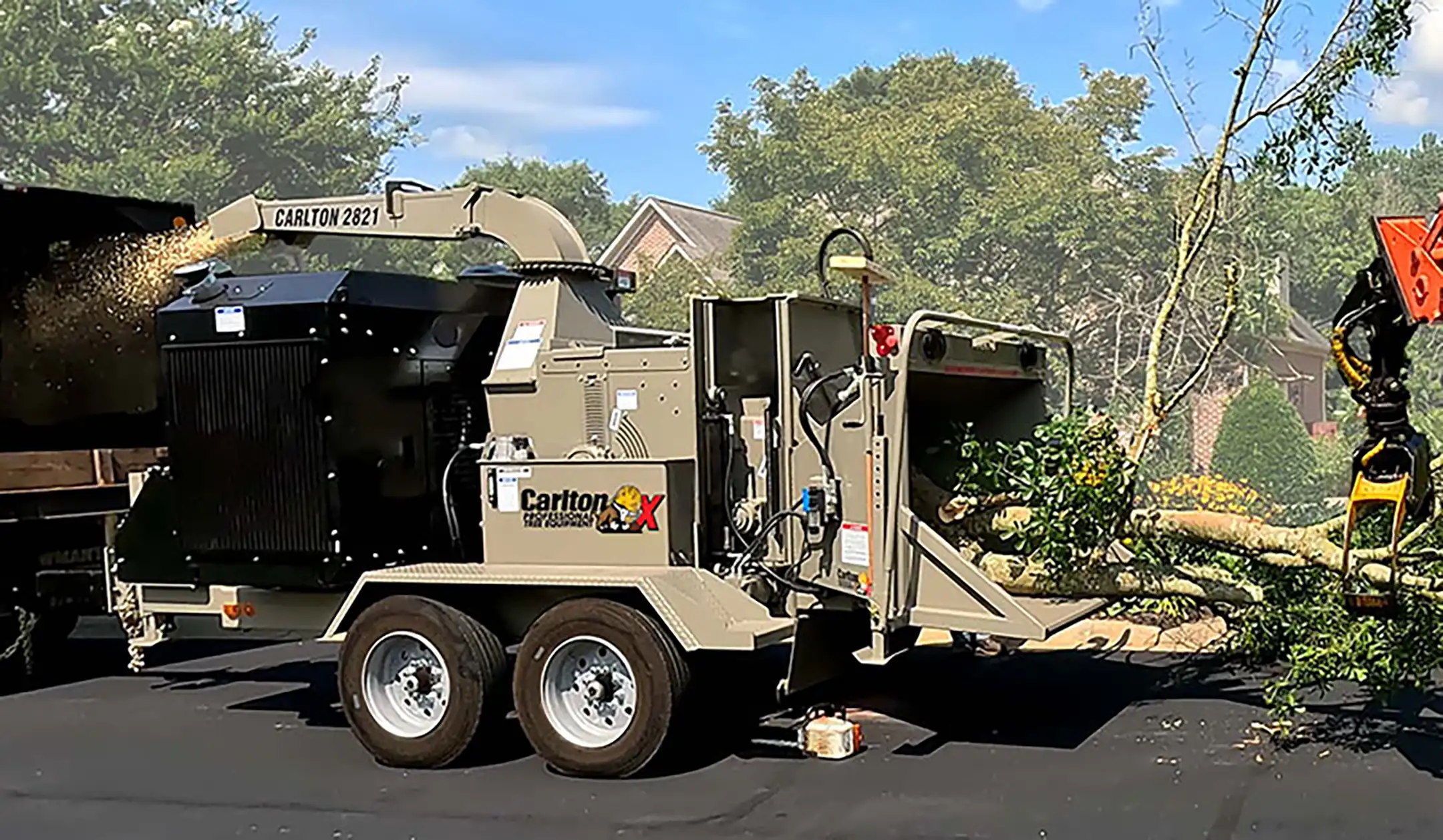

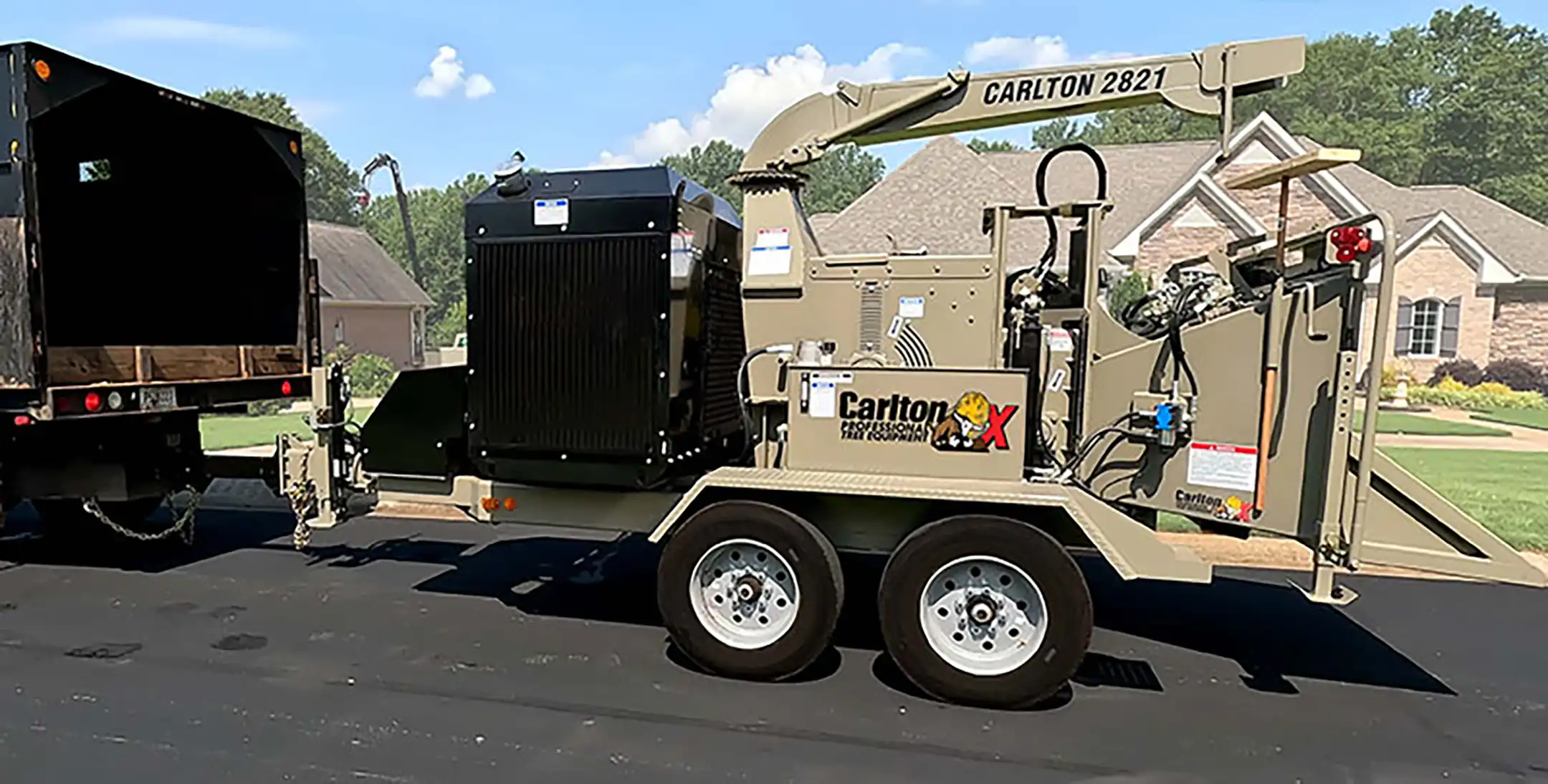

Carlton 2821 Wood Chipper
The 2821 features a massive 30-inch by 20-inch opening combined with a 40-inch diameter pocketed drum, allowing it to easily consume the largest trees. Aggressive feeding is handled by a dual pump hydraulic system controlled by a digital reversing autofeed system. The J.P. Carlton 2821 series uses an exclusive long pivot arm for the 15¾” diameter top feed wheel. This long arm pivot gives the top feed wheel a smooth vertical lift path, allowing for easy opening over the largest butt ends. The 2821 series also incorporates an exclusive Air Vortex Control to channel and accelerate discharge air, giving the 2821 series high discharge velocities and great chip throwing power.
Cutting Style
Drum
Drum Size
21"
Infeed
65"
Engine
300 HP John Deere T4F Turbo Charged Diesel

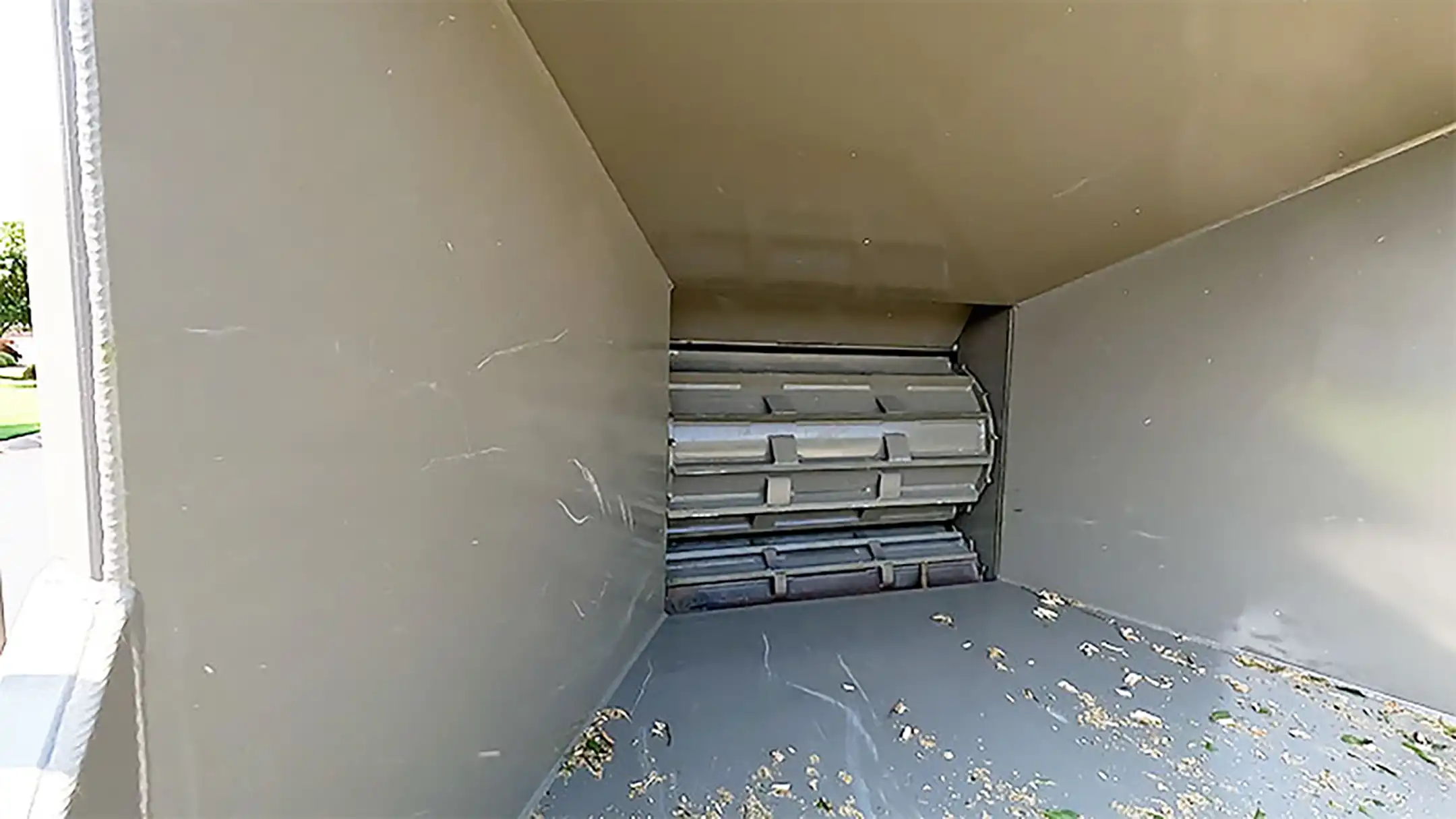

Oversized 40″ Diameter Chipping Drum
Cuts down and forward - Cutting with the grain minimizes the horsepower required, while giving the smoothest chipping action and best discharge possible.
Three Feed Motors
Three Feed Motors working on independent circuits provide extreme pulling power.
65″ Wide Infeed
65″ Wide Infeed Chute takes the big tops and requires less trimming by the crew.
Tandem Hydraulic System
Provides hydraulic fluid independently to each feed wheel. This system ensures the most power at all times to the feed system.

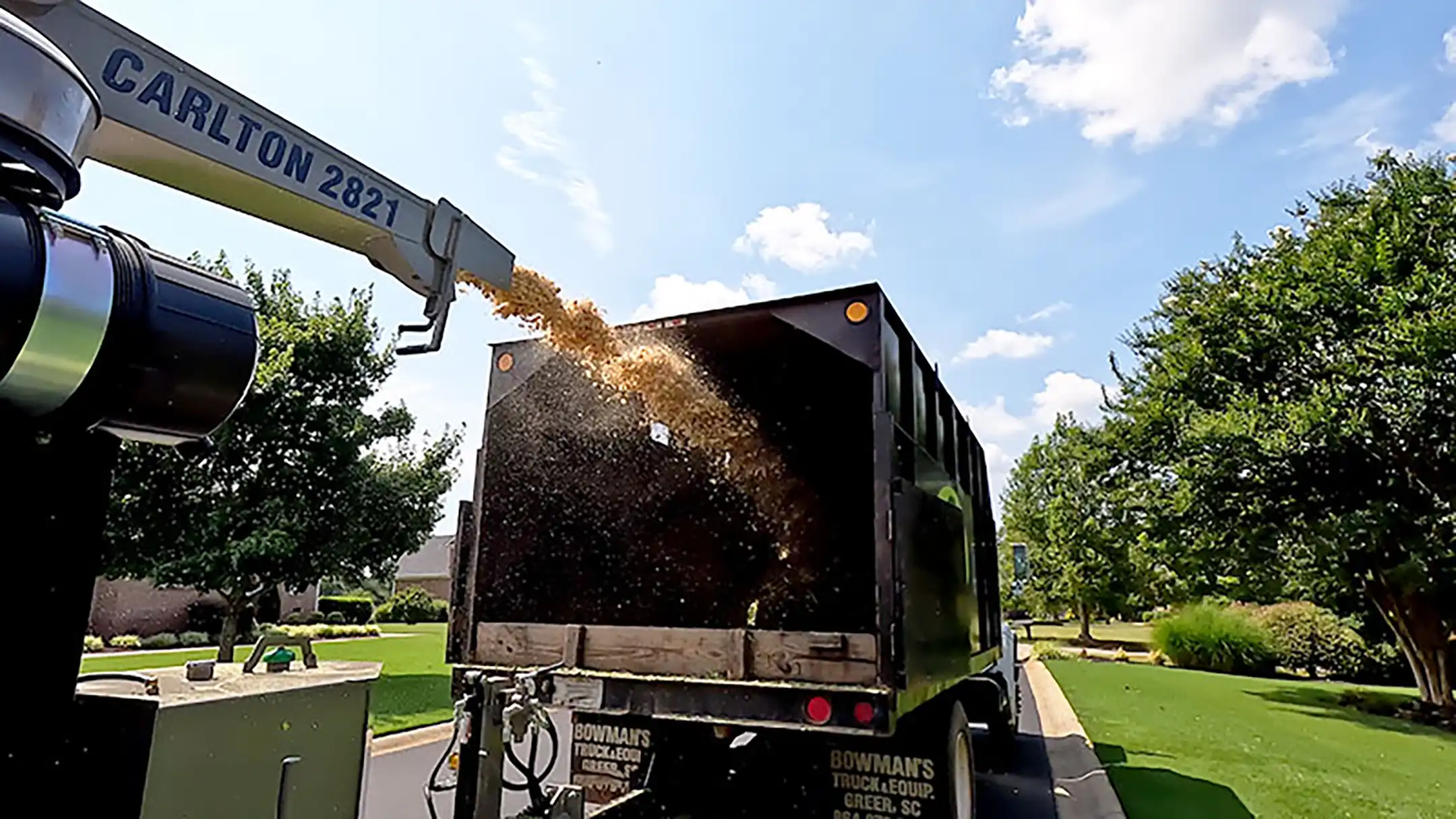

Hydraulic Swivel Discharge
Quickly and easily allows the operator to fill the largest capacity chip trucks corner to corner, or direct the chips to a precise place on the lot.
30″ x 20″ Throat Opening
Massive 30″ x 20″ Throat Opening is the largest in its class and easily handles the largest tops.
John Deere Turbo Charged Engine
300 HP John Deere T4F Turbo Charged Diesel
Specs
Model Specifications
The specs tell the story. Chipping capacity, feed system, and drum power are what let Carlton chippers turn a pile of brush into clean mulch without slowing your crew down.
14,250 lbs
Weight
20' 9"
Length
9' 5"
Height
8' 4"
Width
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
Image Description
