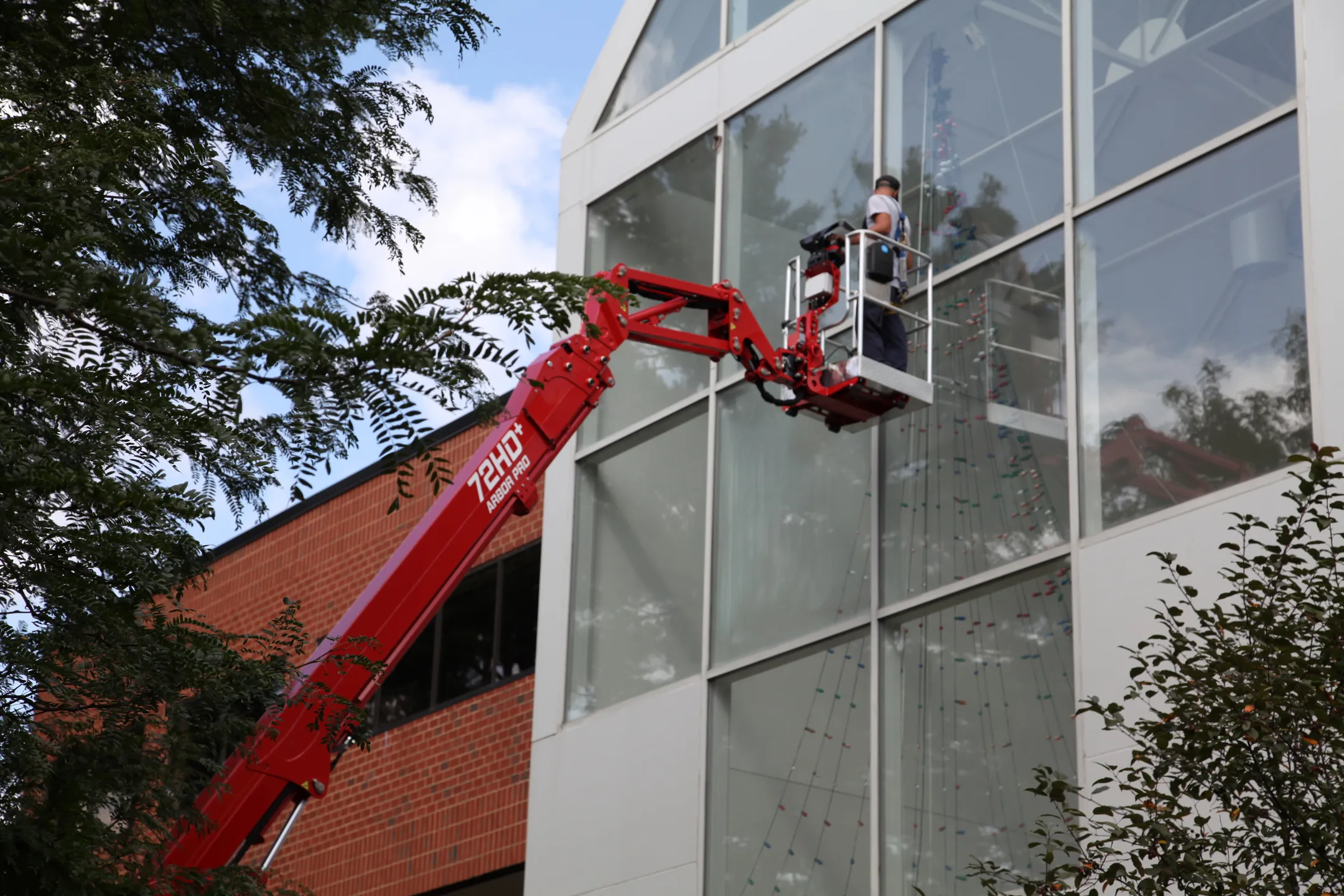

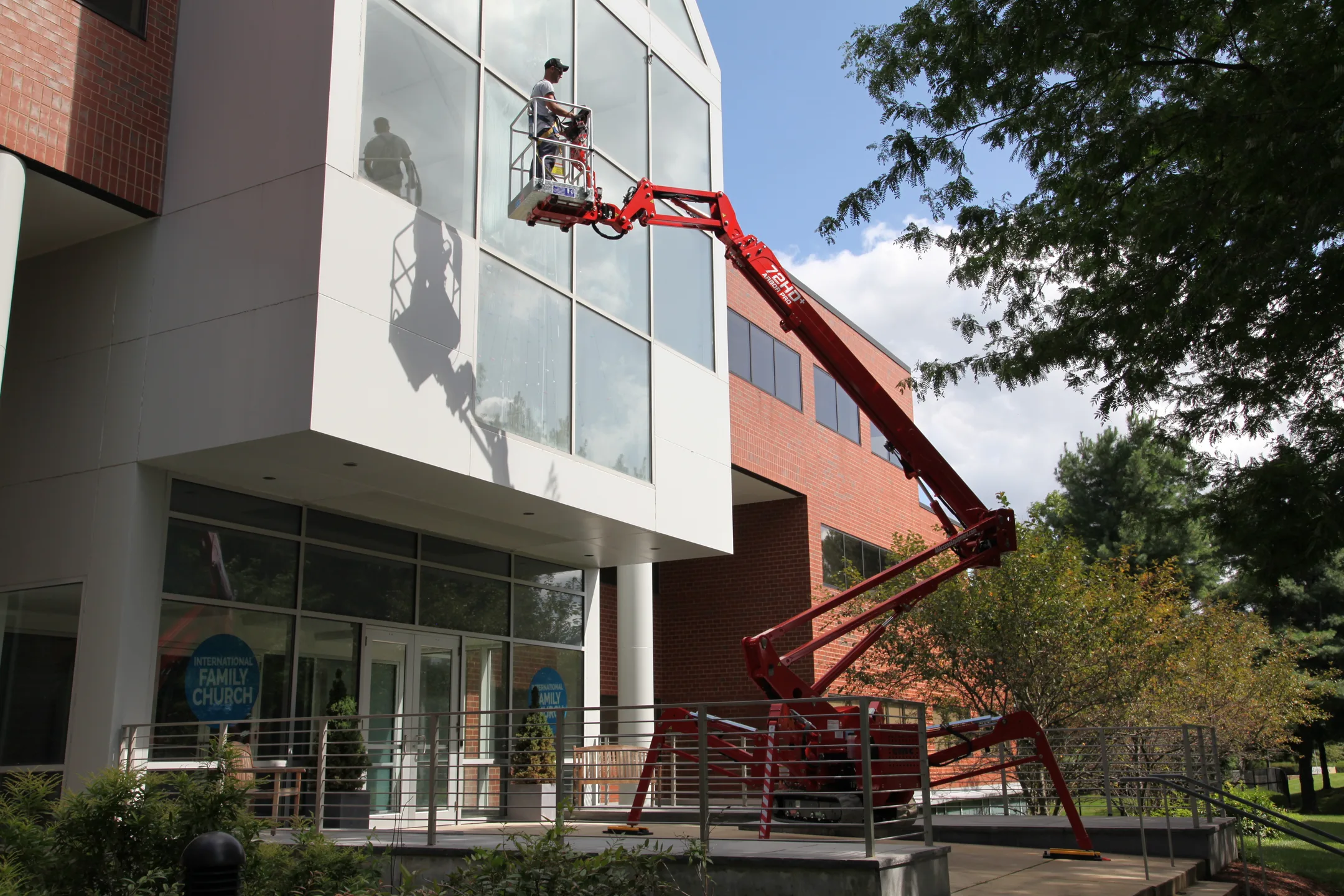

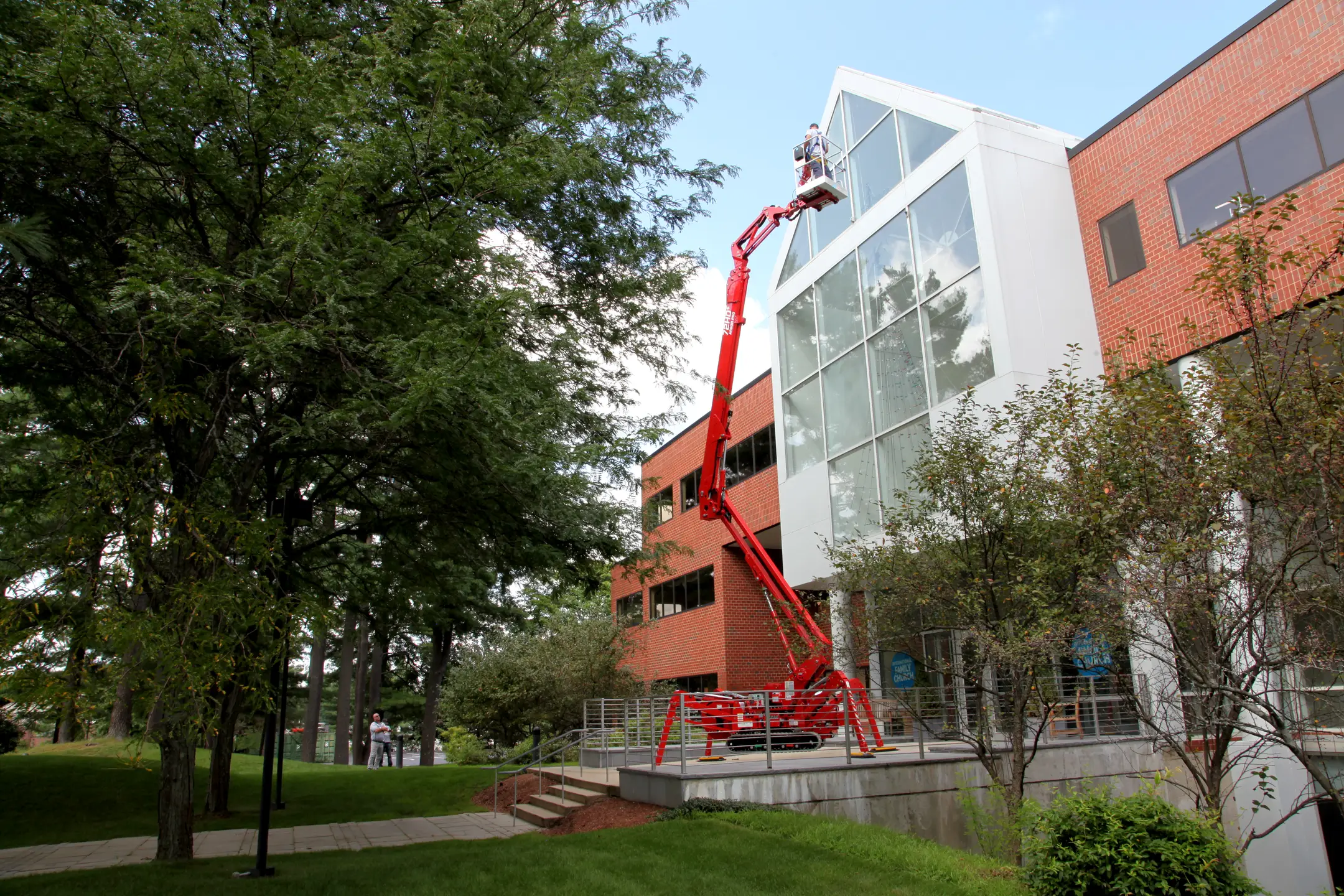

Tracked Aerial Lift
72HD Contractor Pro
More Uptime. Rental-Ready Faster.
Built for the fleets and contractors who make a living by keeping machines in the field. CMC tracked lifts are engineered for durability, simplicity, and fast turnarounds. Because utilization is everything.
Contractor Pro Series
One versatile lift series that handles more applications, more environments, and more customers—helping you increase utilization, reduce downtime, and boost return on investment

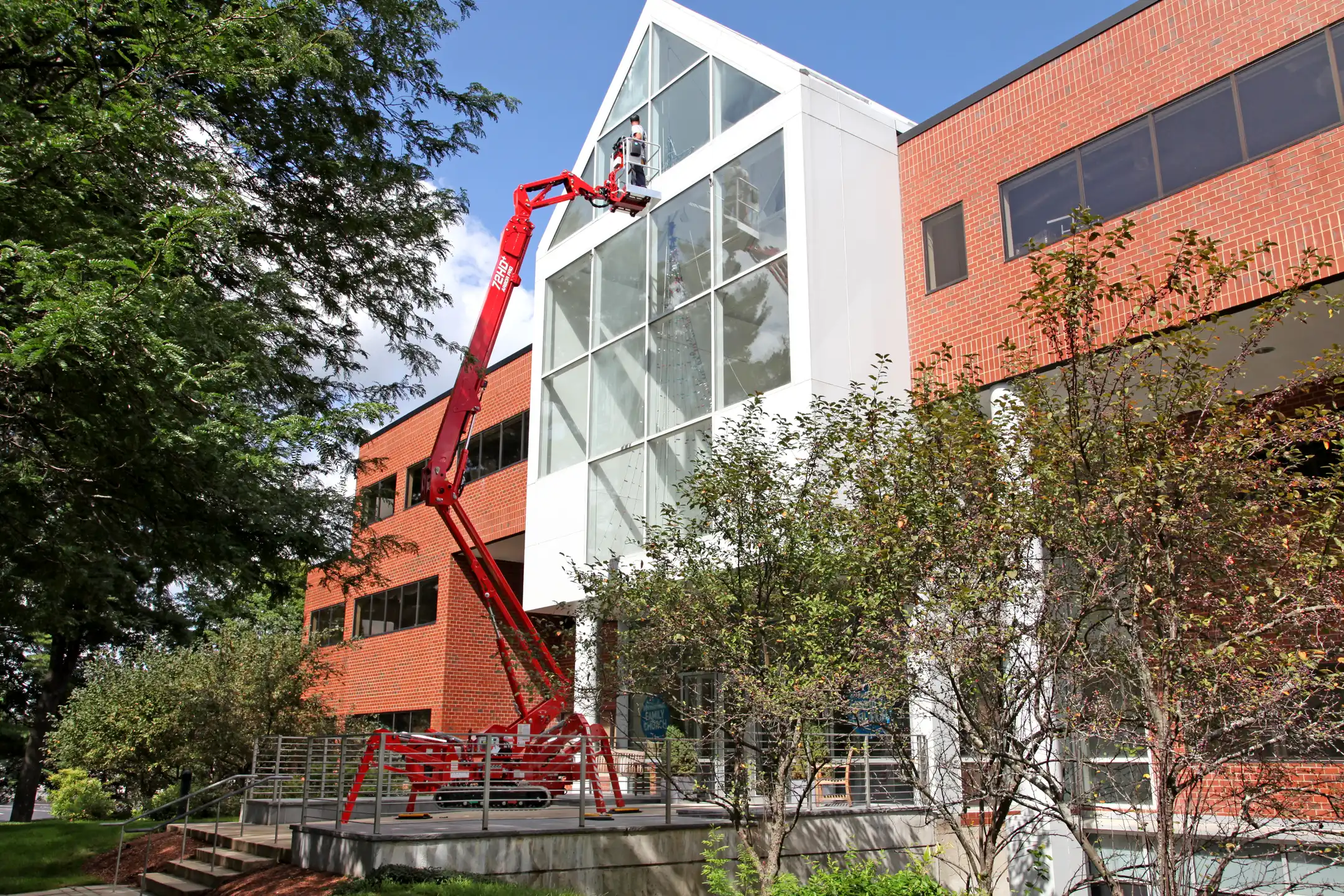

Max. Working Height
72 ft
Max. Lateral Reach
41 ft
Max. Basket Load Capacity
507 lbs
Total Net Weight
6,668 lbs
Triple Telescopic Upper Boom
Triple telescopic upper boom drives up to 41 ft of side reach from a compact base, extending your reach without repositioning the machine.
Pantograph
The lower pantograph lifts you straight up to clear obstacles at the base, so you get over walls or equipment before you extend out.
Articulating Jib
The 90º articulating jib gives you fine basket control in tight canopy, tucking into branches a straight boom can't work around.
Automatic Chassis Self-Leveling
Automatic chassis self-leveling sets up fast on slopes and uneven ground up to 17º (30%), keeping you level and safe while cutting your setup time.
Rotating Turret
The 710º rotating turret gives you near-full coverage without moving the tracks, so you reposition the basket, not the machine.
Adjustable Tracks

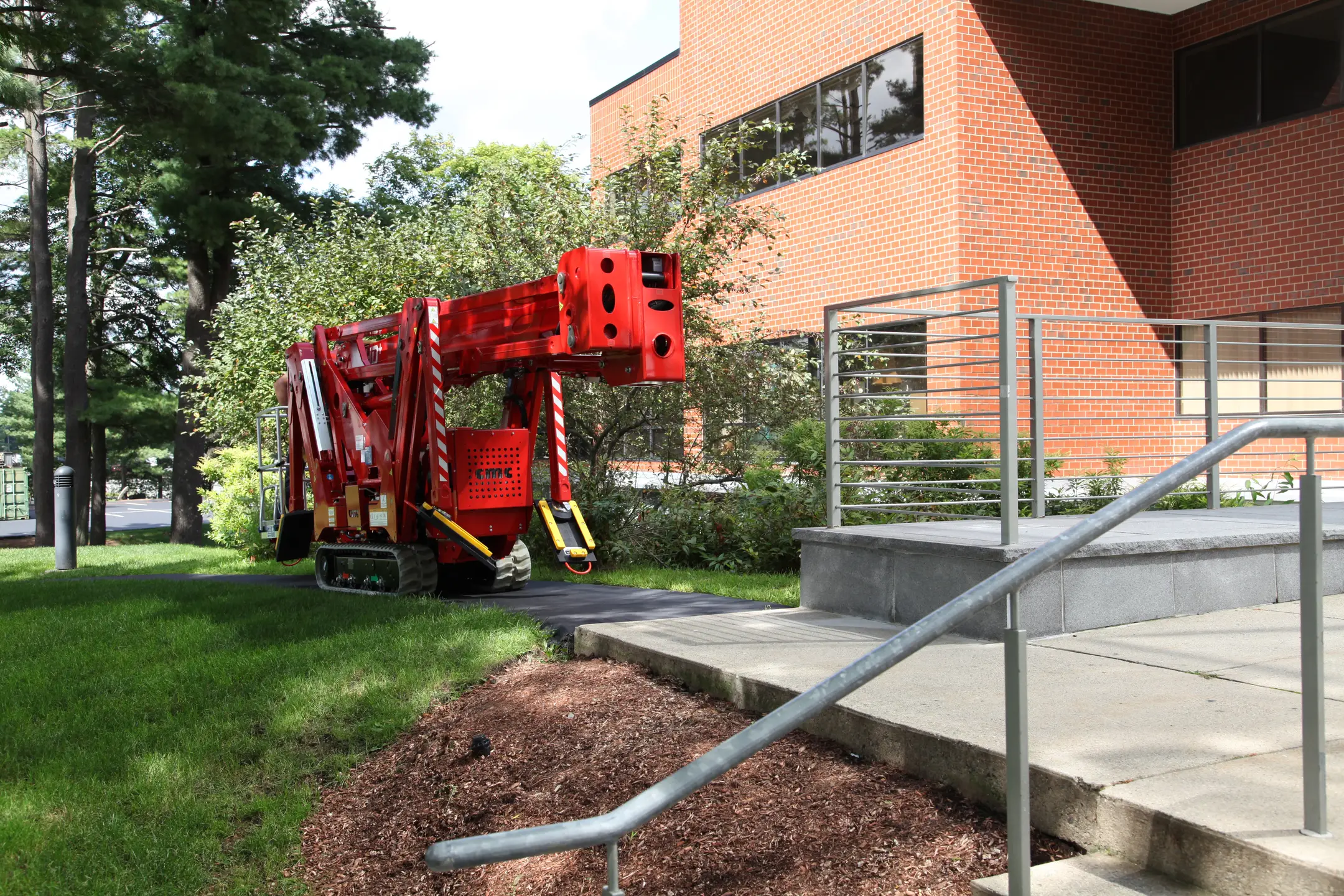

Adjustable tracks narrow to 35" to clear 36" gates and widen for stability, getting you into tight access spots others can't reach.
Specs
Model Specifications
Reach higher, set up faster, work where others can't. That's the capability built into every CMC lift.
72'
Working height
41'
Max. lateral reach
441 lbs
Max. basket capacity
+/-90º
Basket rotation
90º
Jib articulation
Kubota Z602 Diesel
Engine
0 - 1.5 ft/s
Travel speed
17º (30%)
Gradeability
17º (30%)
Max. slope to stabilize
6,668 lbs
Total weight
Image Description
Image Description
Image Description
Image Description
Image Description
inclusions
Included with every lift
Every CMC lift is delivered with hands-on familiarization, manuals and documentation, a quick-access QR code linking to how-to videos, a safety harness, and spare equipment.
In-person delivery
In-person delivery and familiarization for up to 4 operators.
Operator's manual
Complete operator's manual, spare parts manual, service diagrams, error code lists, and quick guides.
How-to operation videos
Playlist link for familiarization videos to train future personnel.
Fall-arrest harness
A safety fall-arrest harness.
Spare equipment
Spare battery, fuse kit, and a coiled cord for wireless remote machines (when applicable).
