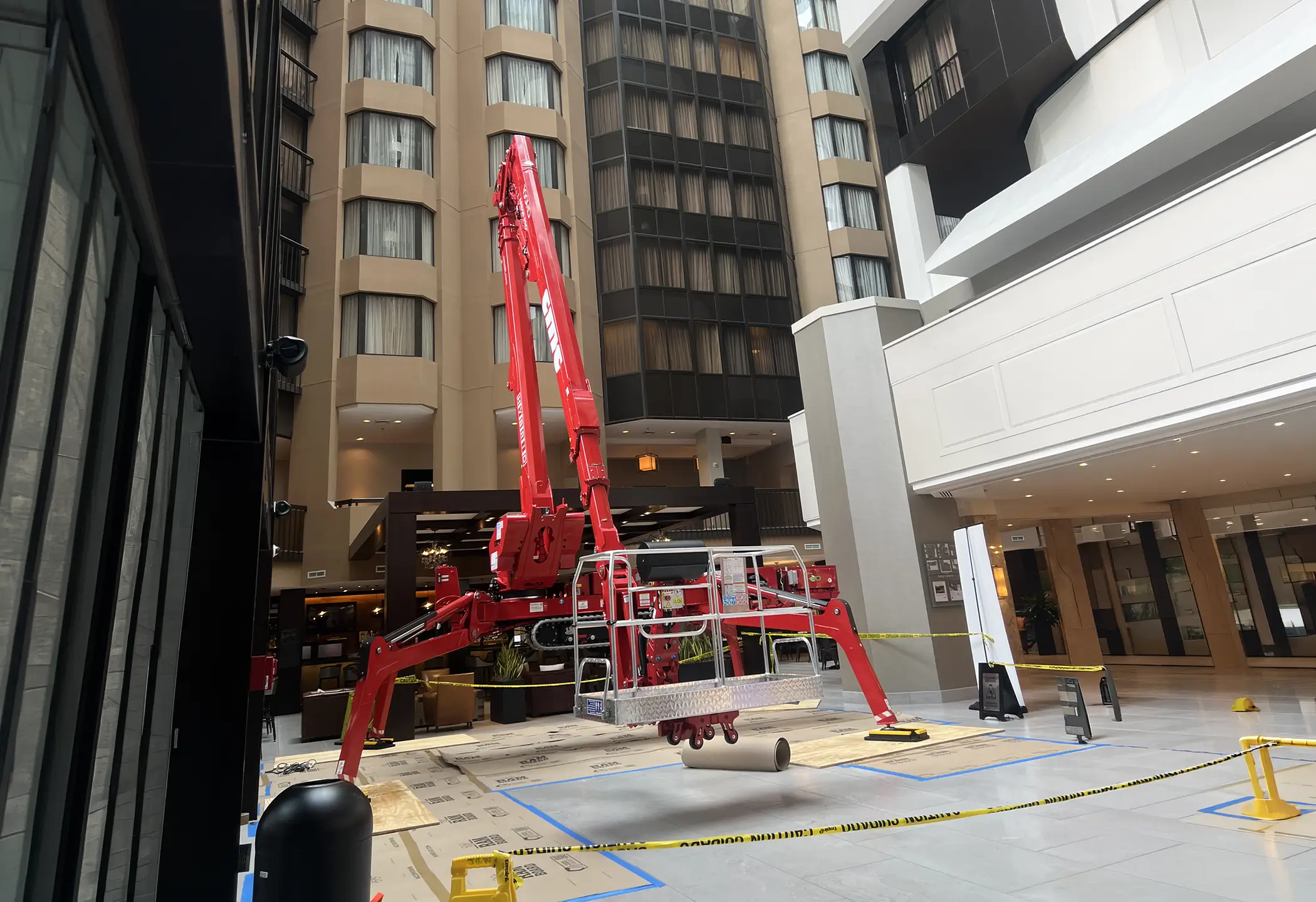

Tracked Aerial Lift
100HD Contractor Pro
More Uptime. Rental-Ready Faster.
Built for the fleets and contractors who make a living by keeping machines in the field. CMC tracked lifts are engineered for durability, simplicity, and fast turnarounds. Because utilization is everything.
Contractor Pro Series
One versatile lift series that handles more applications, more environments, and more customers—helping you increase utilization, reduce downtime, and boost return on investment
Max. Working Height
90 ft
Max. Lateral Reach
50 ft
Max. Basket Load Capacity
507 lbs
Total Net Weight
9,058 lbs
Articulating Upper and Lower Boom
Reach a 90 ft working height with articulating upper and lower booms that clear canopies and rooflines, so you position the basket where a straight boom can't.
Double Telescopic Upper Boom
Double telescopic upper boom extends to 50 ft of side reach without moving the machine, so you cover more of the canopy from a single setup.
Articulating Jib
The 90º articulating jib gives you fine basket control in tight canopy, tucking into branches a straight boom can't work around.
Telescopic Lower Boom
Telescopic lower boom adds height and lets you tuck the base in close while still reaching up and over the target.
Automatic Chassis Self-Leveling
Automatic chassis self-leveling sets up fast on slopes and uneven ground up to 19º (34%), keeping you level and safe while cutting your setup time.
Rotating Rear Mounted Turret
The rear-mounted rotating turret opens a wide, secure drop zone away from the base, so you keep crew and property clear of falling limbs.
Independently Adjustable Tracks

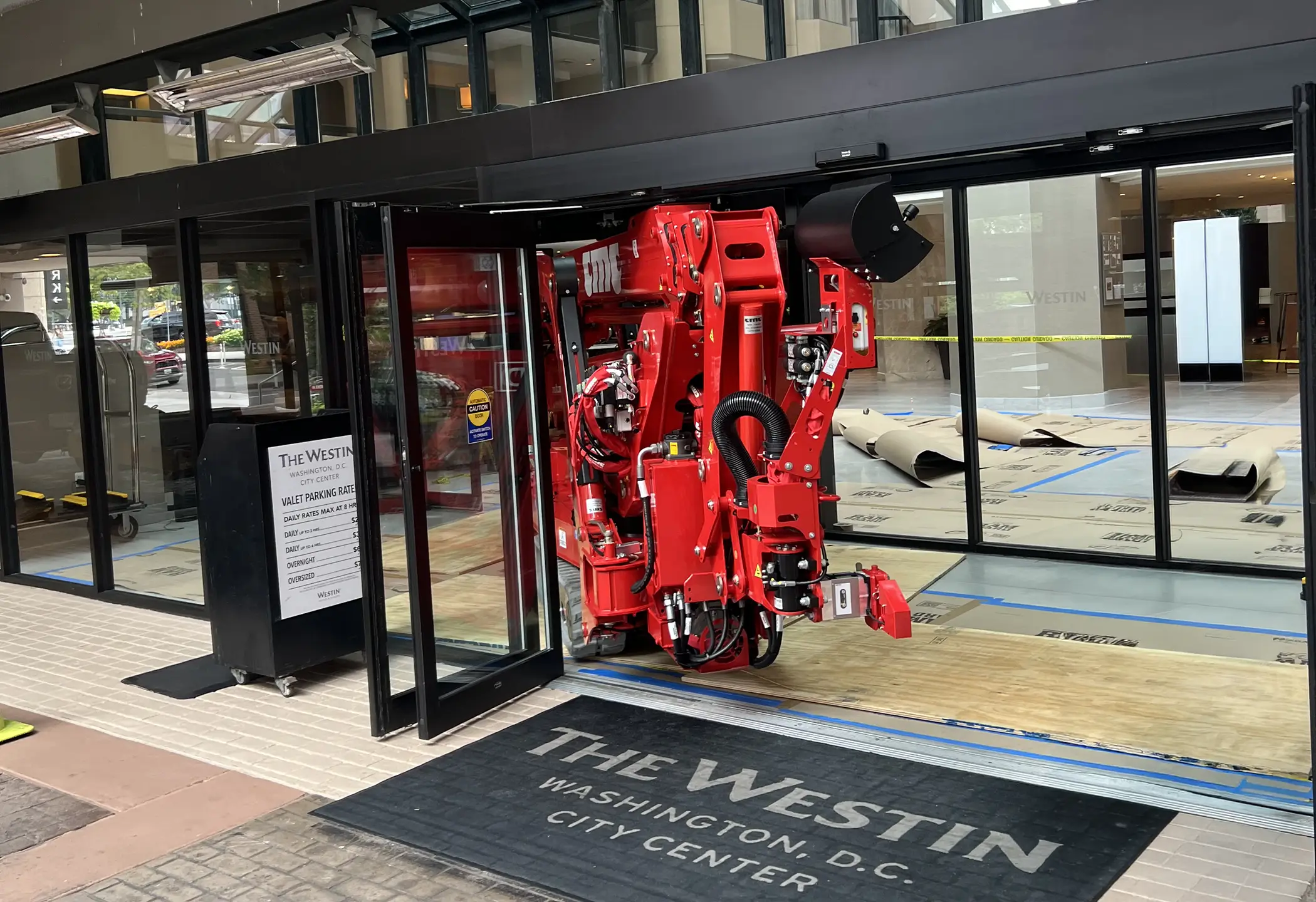

Independently adjustable tracks narrow to clear 36" gates and widen for stability, getting you into backyards a truck-mount can't reach.
Specs
Model Specifications
Reach higher, set up faster, work where others can't. That's the capability built into every CMC lift.
90'
Working height
Up to 50' 6"
Max. lateral reach
507 lbs
Max. basket capacity
+/-90º
Basket rotation
90°
Jib articulation
Kubota D902 Diesel
Engine
0 - 2.2 ft/s
Travel speed
19º (34%)
Gradeability
32º (62%)
Max. slope to stabilize
9,058 lbs
Total weight
Image Description
Image Description
Image Description
Image Description
Image Description

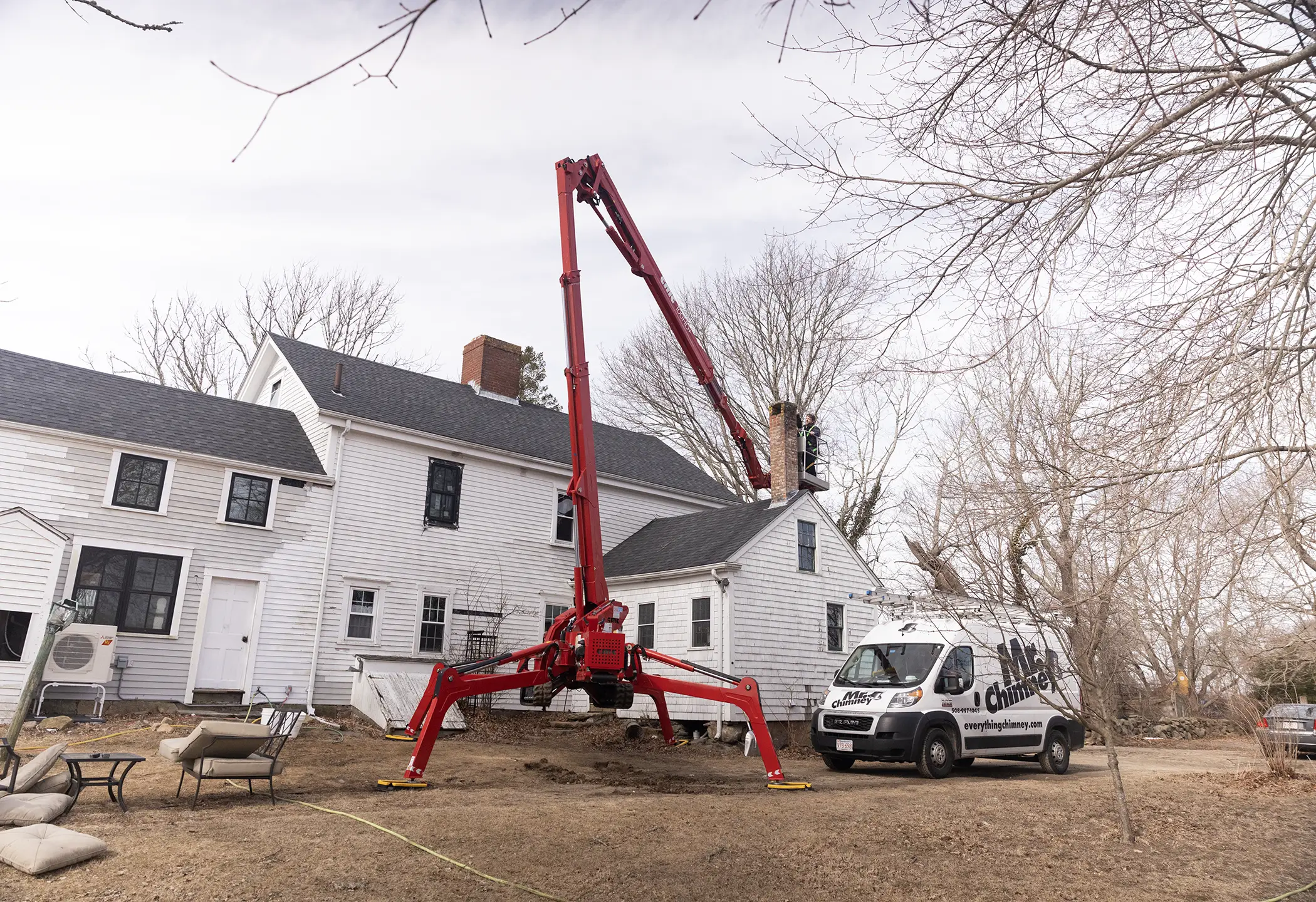

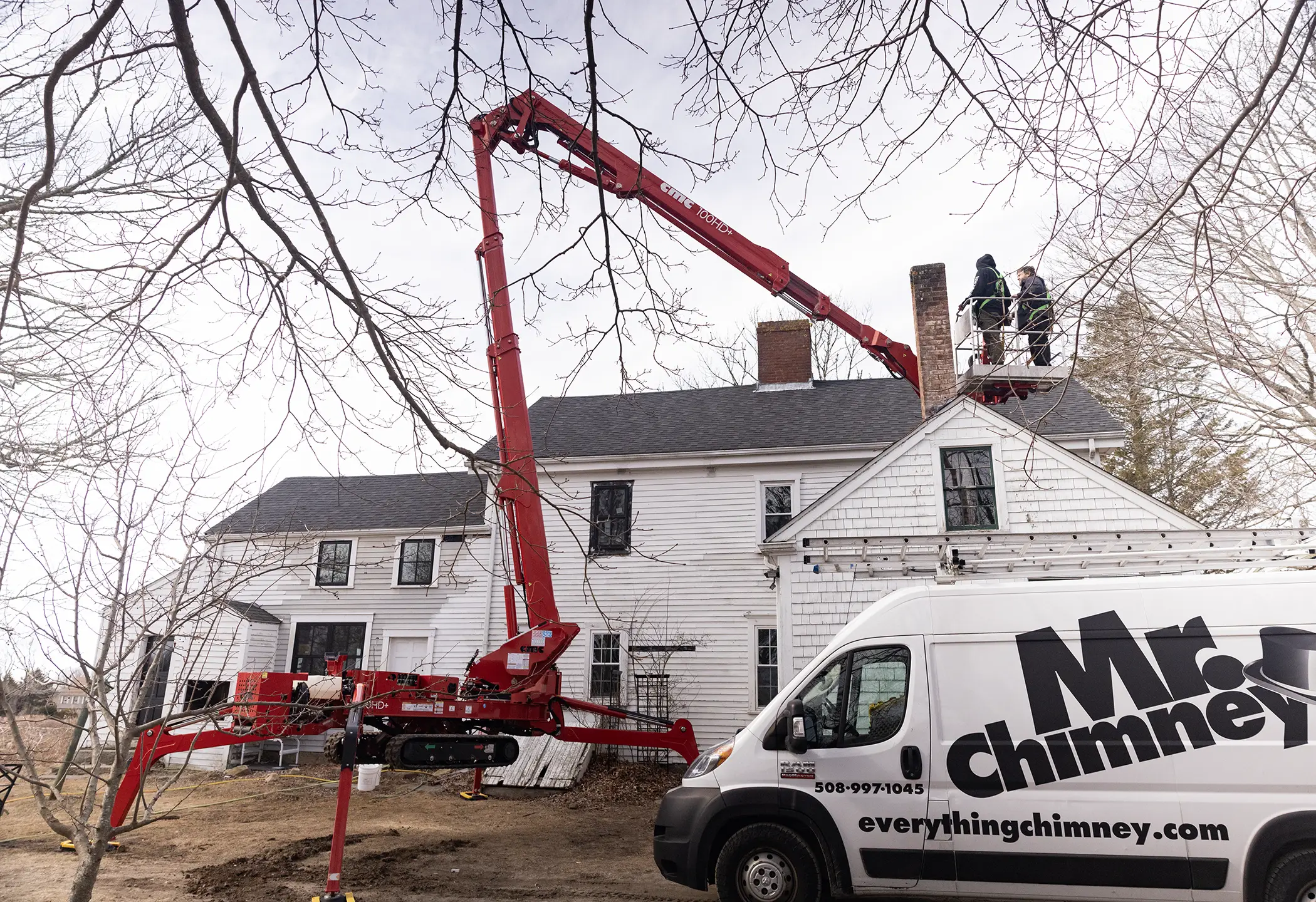

Story From the Field: Mr Chimney
Learn how New Bedford, MA’s Mr. Chimney Woodstoves & Fireplaces expanded their operational capabilities—improving margins and crew safety—with the integration of the CMC 100HD Contractor Pro lift.
inclusions
Included with every lift
Every CMC lift is delivered with hands-on familiarization, manuals and documentation, a quick-access QR code linking to how-to videos, a safety harness, and spare equipment.
In-person delivery
In-person delivery and familiarization for up to 4 operators.
Operator's manual
Complete operator's manual, spare parts manual, service diagrams, error code lists, and quick guides.
How-to operation videos
Playlist link for familiarization videos to train future personnel.
Fall-arrest harness
A safety fall-arrest harness.
Spare equipment
Spare battery, fuse kit, and a coiled cord for wireless remote machines (when applicable).
